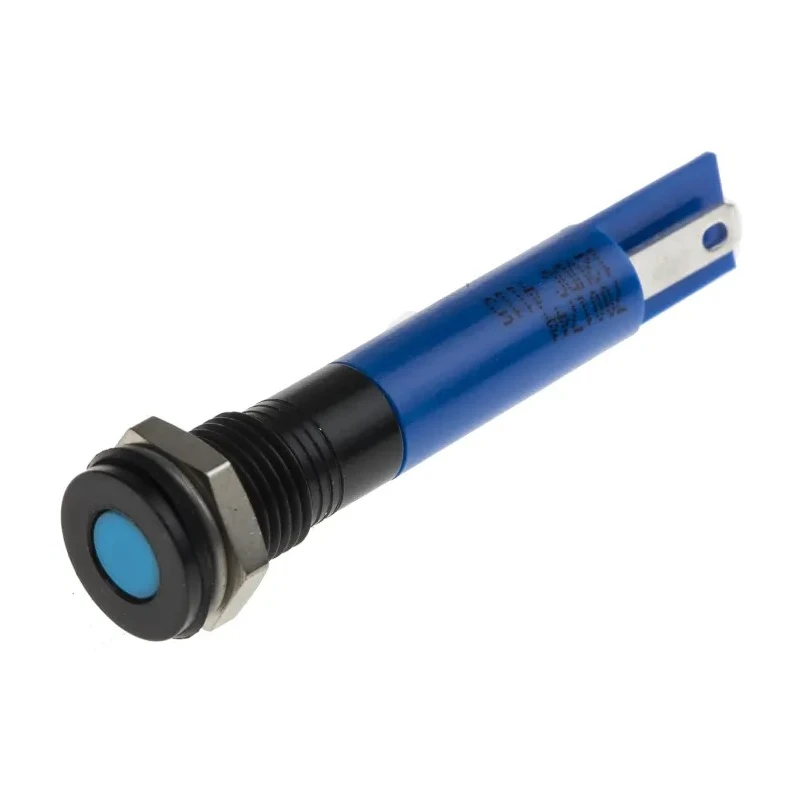

RS PRO Blue Panel Mount Indicator 12V DC 20mA Solder Tab IP67 Flush Bezel 700-1744

RS PRO 700-1744 Blue Panel Mount Indicator is a robust industrial LED indicator light operating at 12V DC with a 20mA current requirement. The Panel Mount Indicator features a 5mm blue diffused epoxy lens housed in a flush black chrome bezel, delivering high brightness and clear visual status indication in electrical and electronic equipment.

Constructed with solder lug terminals, this indicator ensures secure and reliable electrical connections. The IP67-rated sealed body protects against dust and water ingress, making it suitable for harsh industrial environments, outdoor applications, and locations requiring high durability.

The compact 33.9 mm length and 8 mm mounting hole size facilitate easy flush panel mounting, accommodating panel thicknesses up to 7mm. The indicator comes supplied with fixing nut and spring washer, ensuring a firm and stable installation.

With an expected operational life of approximately 100000 hours, this RS PRO LED indicator provides long-lasting status indication, reducing maintenance frequency. Its low energy consumption makes it ideal for use in control panels, instrumentation, industrial machinery, and electrical distribution setups within manufacturing, HVAC, and laboratory environments.

Industrial users benefit from its bright blue output, reliable IP67 sealing, and robust construction. This makes the RS PRO 700-1744 ideal for commercial and industrial electrical panels, outdoor instrumentation, and other applications where clear visual signaling under demanding conditions is critical.

The indicator features a blue 5mm diffused epoxy lens delivering high brightness. It supports a maximum panel thickness of 7mm for flush mounting. Solder lug terminals provide secure electrical connection. The device is sealed to IP67 ingress protection rating for outdoor and industrial use.

The bezel style is flush with a black chrome finish for aesthetic panel integration. Its compact length measures 33.9 mm with an 8 mm mounting hole size. Rated to operate at 12V DC with a current draw of 20mA for low power consumption.

Designed for long operational life with a life expectancy of up to 100000 hours. Supplied with fixing nut and spring washer for secure installation. Explore more industrial-grade LED indicator solutions and panel mount components at EnvMart to support your electronic design and equipment reliability needs.
