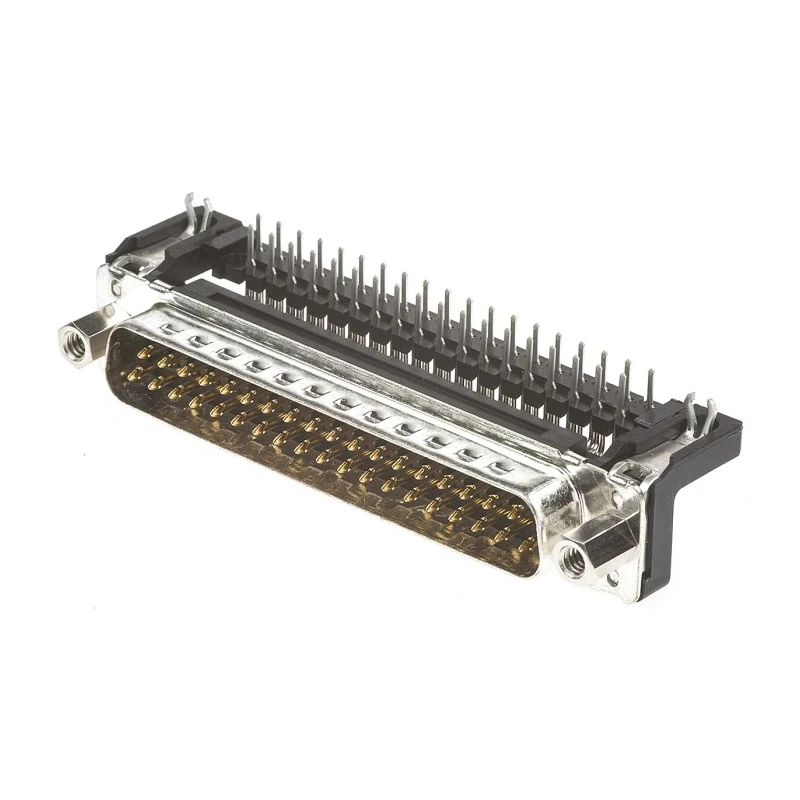

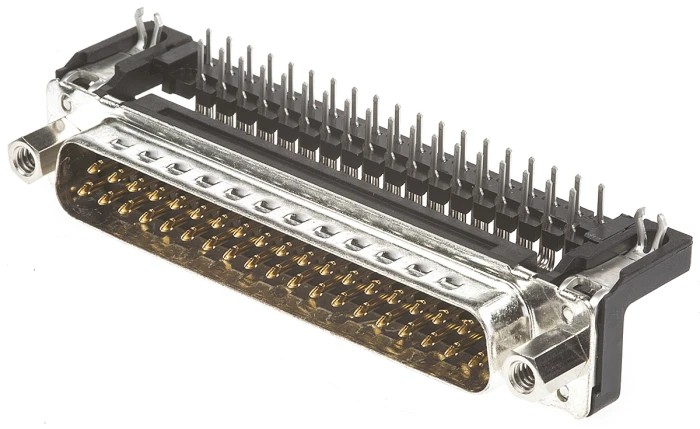

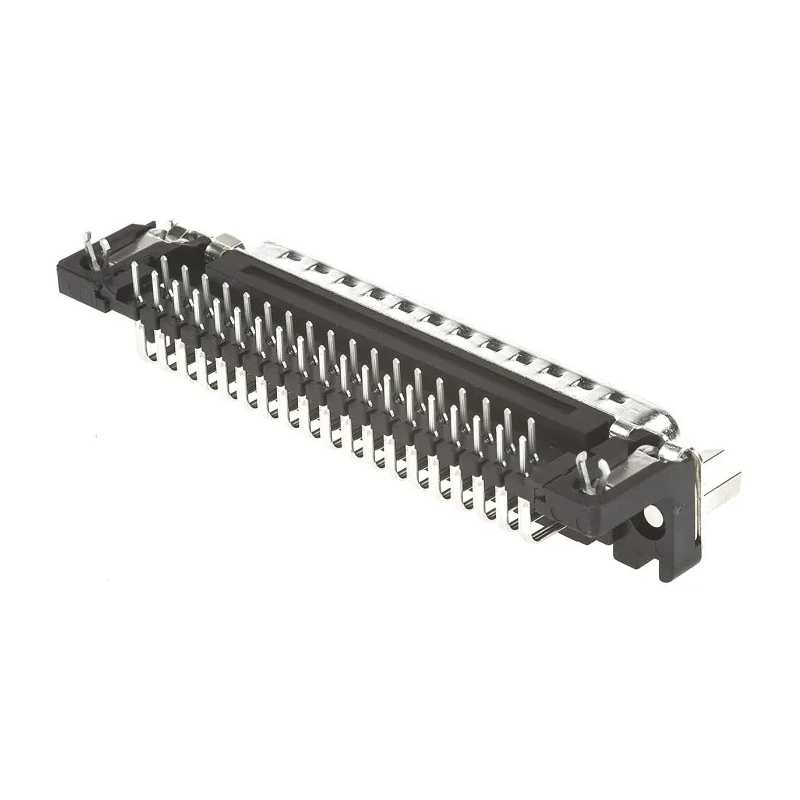

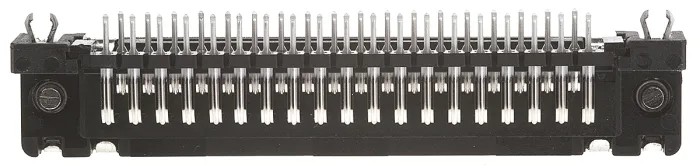

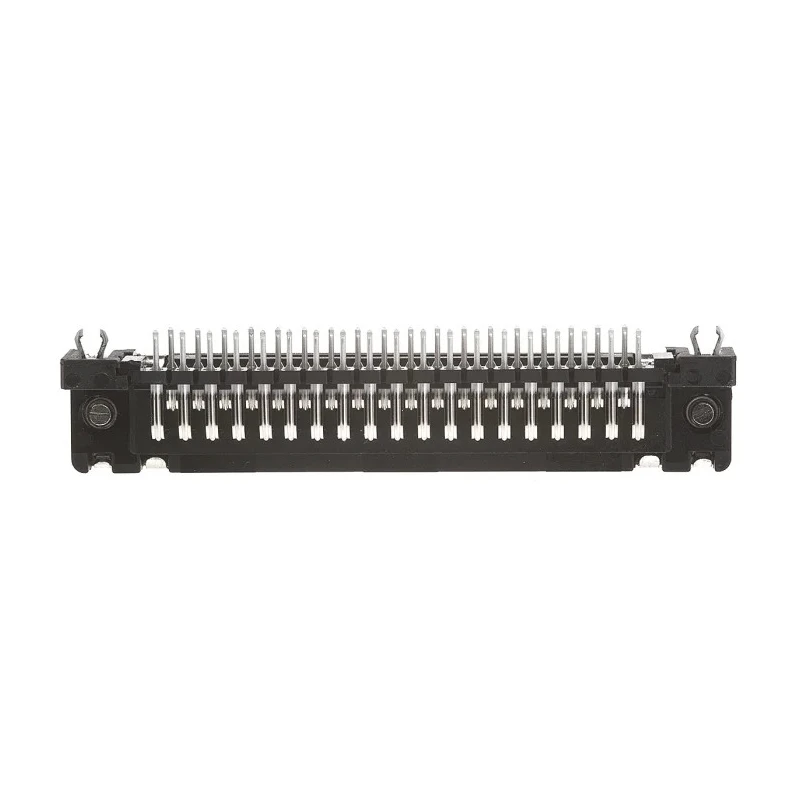

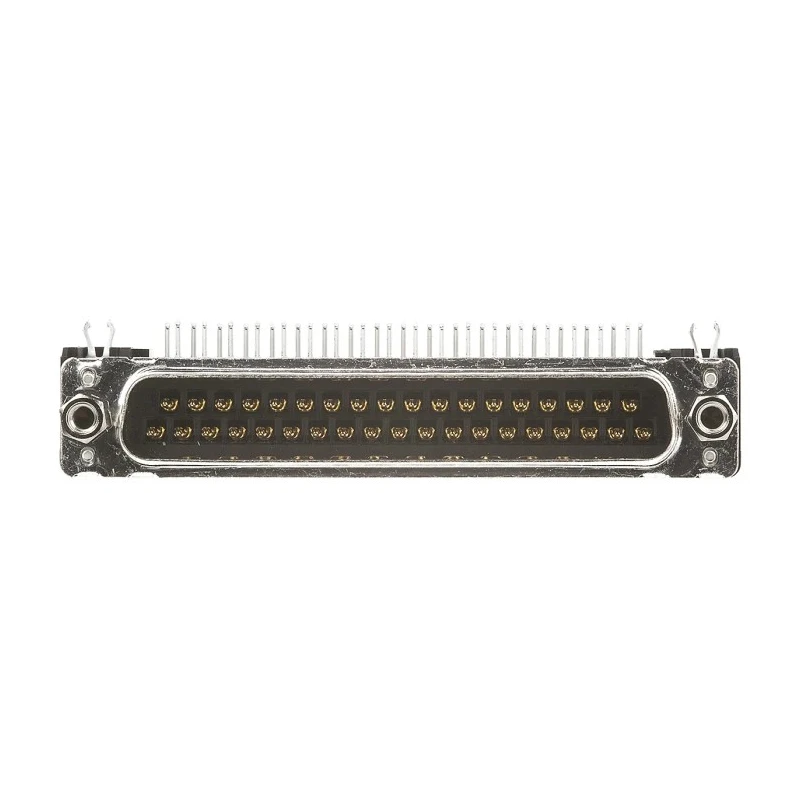

HARTING 37 Way Right Angle 2.76 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Screw Lock Male 09654626813
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 7.5A |
| Mount Type | Through Hole |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Mounting Hardware | 4 to 40 UNC Screw Lock |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.76mm |
| Contact Plating | Gold |
| Number of Contacts | 37 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | D-Sub |
Key Features
- This D-Sub connector has 37 contacts supporting current up to 7.5A.
- Featuring a right angle orientation ideal for PCB mounting.
- Equipped with 4 to 40 UNC screw lock mounting hardware for secure connection.
- The housing is made of durable steel with gold-plated copper alloy contacts.
- Supporting solder termination type suitable for reliable soldering applications.
- Operates reliably between -55°C to 125°C temperature range.
- Conforms to IEC 60 807 standards and features stamped pin design.
- Ideal for communication and data interfacing cable to board applications.
Product Description
HARTING 09654626813 37 Way Right Angle 2.76 mm Pitch Through Hole D-Sub Connector is a high-quality electronic connector designed for cable to board applications. It features a robust steel housing and gold-plated copper alloy contacts to ensure reliable electrical performance and durability in industrial environments.
Featuring 37 contacts supporting up to 7.5 amperes of current, this connector utilizes a right-angle orientation perfect for PCB mounting. The 4 to 40 UNC screw lock mounting hardware ensures a secure mechanical connection to prevent disconnection in demanding applications.
The connector supports solder termination, making it suitable for traditional assembly processes. It provides a wide operating temperature range from -55°C to 125°C allowing use in harsh environments.
Its stamped pin design offers a stable performance level with metal shell protection according to IEC 60 807 standards. The D-Sub connector type combined with male contacts is well suited for data communication, instrumentation, and industrial equipment interfaces.
Applications include industrial machinery, control systems, communication equipment, instrumentation, and other electronic devices requiring robust, standard-compliant connectors. This 37 Way D-Sub connector ensures reliable electrical contacts with gold plating for corrosion resistance.
Right angle orientation is optimized for PCB mounting in compact electronic assemblies. Steel housing provides mechanical protection and electromagnetic shielding. Screw lock hardware provides secure mounting and easy installation or removal.
Wide operating temperature range accommodates challenging thermal conditions. Compliance with IEC 60 807 standard assures consistent quality and interchangeability. Suitable for industrial, laboratory, manufacturing, and communication equipment.
Explore more reliable HARTING D-Sub Connectors and related industrial components on EnvMart for high-performance electronic connection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of up to 7.5A.
The contact pitch for this D-Sub connector is 2.76 mm.
It is equipped with 4 to 40 UNC screw lock mounting hardware for secure installation.
It operates reliably within a temperature range of -55°C to 125°C.
The housing is made of steel, and the contacts are composed of gold-plated copper alloy.
This connector features a right angle orientation, making it suitable for PCB mounting.
This model has a total of 37 contacts.
It supports solder termination, which is suitable for reliable soldering applications.
Yes, it conforms to IEC 60 807 standards, ensuring consistent quality and interchangeability.
It is ideal for communication and data interfacing cable to board applications, as well as industrial machinery and control systems.
The connector features male contacts.
The country of origin for this connector is India.
