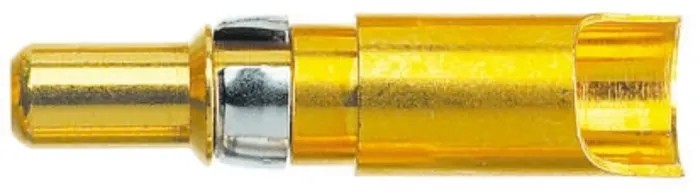

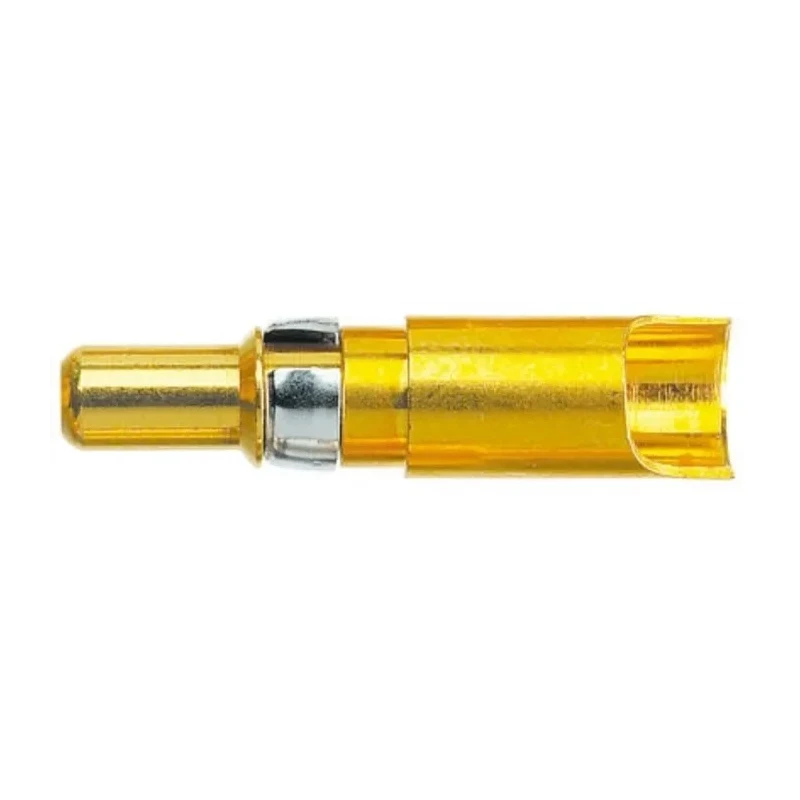

Harting D-Sub Mixed Series Male Solder D-Sub Connector Power Contact Gold Power 10 AWG 09692817422
Specifications
| Country of Origin | India |
|---|---|
| Brand | Harting |
| Current | 30A |
| Length | 23mm |
| Gender | Male |
| Contact Material | Copper Alloy |
| Series | D-Sub Mixed |
| Termination Type | Solder |
| Contact Type | Power |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 2.5mm² |
| Maximum Wire Size mm² | 6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Maximum Contact Resistance | 1mΩ |
Key Features
- Contact material is copper alloy with gold plating to ensure low resistance and corrosion resistance.
- Supports wire sizes from 12 AWG to 10 AWG, suitable for cables between 2.5mm² and 6mm².
- Connector length is 23mm designed for easy solder termination.
- Has a maximum contact resistance of 1 milliohm for efficient power transfer.
- Constructed for assembly into hybrid DIN 41652 T1 D-Sub connectors.
- Ideal for industrial electronic, power distribution, and control panel applications.
- Male gender contact with solder cup termination type.
- Meets DIN 41 652 T1 standard for power contacts.
Product Description
Harting 09692817422 is a male D-Sub Connector Power Contact from the D-Sub Mixed Series designed for solder termination in hybrid DIN 41652 T1 connectors. This component supports wire sizes from 12 AWG to 10 AWG (2.5mm² to 6mm²) and carries a current of up to 30A, making it suitable for power-intensive electronic connections. The contact material is a copper alloy plated with gold to provide excellent conductivity and protection against corrosion with a maximum contact resistance of 1mΩ.
The contact length is 23mm, optimized for easy soldering and mechanical reliability. This part is designed without specific standards/approvals but adheres to DIN 41 652 T1 for mixed D-Sub power contacts. It is ideal for use in industrial electronics, power distribution systems, manufacturing process controls, and other environments demanding high power and durability.
These contacts are used to enhance connection reliability in hybrid D-Sub connectors, combining signal and power contacts for compact electronic assemblies.
Features include robust solder termination, gold plating for enhanced electrical performance, and compatibility with high current wires. The product is supplied individually packaged in bags to facilitate handling and insertion during manufacturing processes.
Contact material is copper alloy with gold plating. Current rating of 30 Amps ensures suitability for power applications. Wire size range covers 12 AWG to 10 AWG wires (2.5mm² to 6mm²). Connector length of 23mm for efficient solder termination.
Male gender contact designed for hybrid DIN 41652 T1 connectors. Maximum contact resistance limited to 1 milliohm. Robust industrial-grade connector power contact. Ideal for electronics, power distribution, and control systems.
Packaged individually for efficient production use. Explore more electronic and power connectors in the Harting series for diverse industrial, manufacturing, and electrical applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this power contact is 30A, making it suitable for power-intensive electronic connections.
This model supports wire sizes from 12 AWG to 10 AWG, which corresponds to a range of 2.5mm² to 6mm².
The connector length is 23mm, designed for efficient solder termination.
The contact material is a copper alloy plated with gold, which provides excellent conductivity and corrosion resistance.
The maximum contact resistance is limited to 1 milliohm, ensuring efficient power transfer.
This connector uses a solder termination type, which facilitates reliable mechanical and electrical connections.
It is ideal for industrial electronics, power distribution systems, and control panel applications.
This model adheres to the DIN 41 652 T1 standard for mixed D-Sub power contacts.
This power contact is male gender, designed for use in hybrid D-Sub connectors.
It is supplied individually packaged in bags to facilitate handling and insertion during manufacturing processes.
Yes, it is designed to enhance connection reliability with high current wires, supporting up to 30A.
The country of origin for this product is India.
