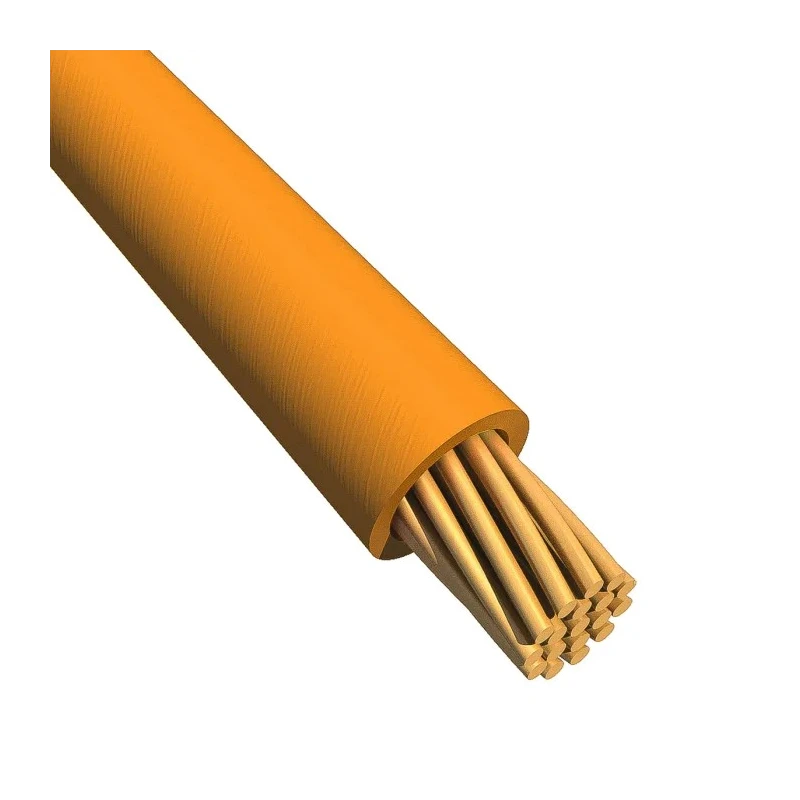

Alpha Wire Ecogen Ecowire Series Orange 3.3 mm² Hook Up Wire, 12 AWG, 65/0.25 mm Core Strands, 30 m, Modified 6718 OR005

Alpha Wire 6718 OR005 is a high-performance EcoWire Series Orange Hook Up Wire featuring a 3.3 mm² cross-sectional copper conductor made of 65 strands of 0.25 mm core. This 12 AWG cable has a 30 m length and an outside diameter of 2.97 mm, insulated with a modified polyphenilether (mPPE) jacket that provides excellent dielectric strength and mechanical durability.

Designed for demanding industrial and electronic applications, it supports a voltage rating of 600 V and withstands continuous operation up to 105°C while maintaining performance at minimum temperatures as low as -40°C. Its flame retardant rating UL VW-1 ensures safety in fire-prone environments.

The EcoWire material is fully recyclable, significantly reducing environmental impact compared to traditional PVC insulation. It offers up to 45% smaller diameter and 40% lighter weight than PVC wires with equal electrical properties, enhancing installation efficiency and cable management.

Meeting certifications including CE, CSA, UL, RoHS/RoHS2, REACH, and IEC 60332-2 flame standards, this cable is compliant with rigid safety and quality requirements, making it ideal for use in control panels, automotive wiring harnesses, meters, ovens, and the internal wiring of computers, electronic equipment, and household appliances.

Constructed with copper conductor for excellent conductivity. Voltage rating of 600 V suitable for industrial applications. Maximum operating temperature up to 105°C ensuring reliability under heat stress. Flame retardant to UL VW-1 standard enhancing fire safety.

Environmentally friendly EcoWire material is fully recyclable. Reduced diameter and lighter weight compared to PVC insulation. Complies with CE, CSA, UL, RoHS, REACH, and IEC flame standard requirements. Suitable for control panels, automotive wiring, electronic equipment, and appliances.

Durable modified polyphenilether jacket for enhanced mechanical and chemical resistance.

Alpha Wire’s EcoWire series is designed to meet the evolving needs of industrial, electronic, HVAC, and commercial wiring applications requiring high performance with reduced environmental impact. Discover the full range of wire and cable solutions at EnvMart for your next project.
