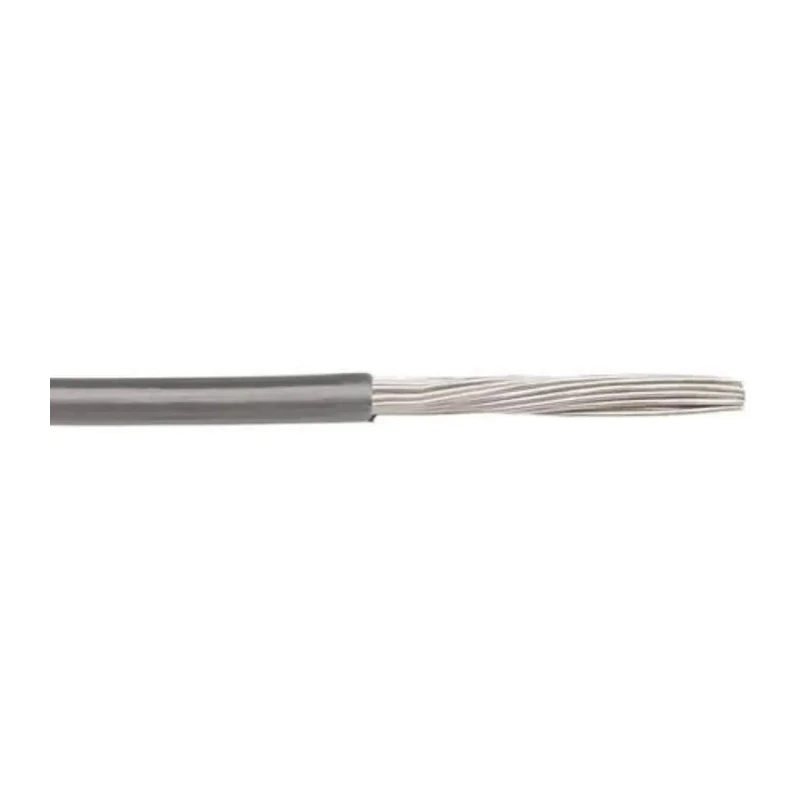

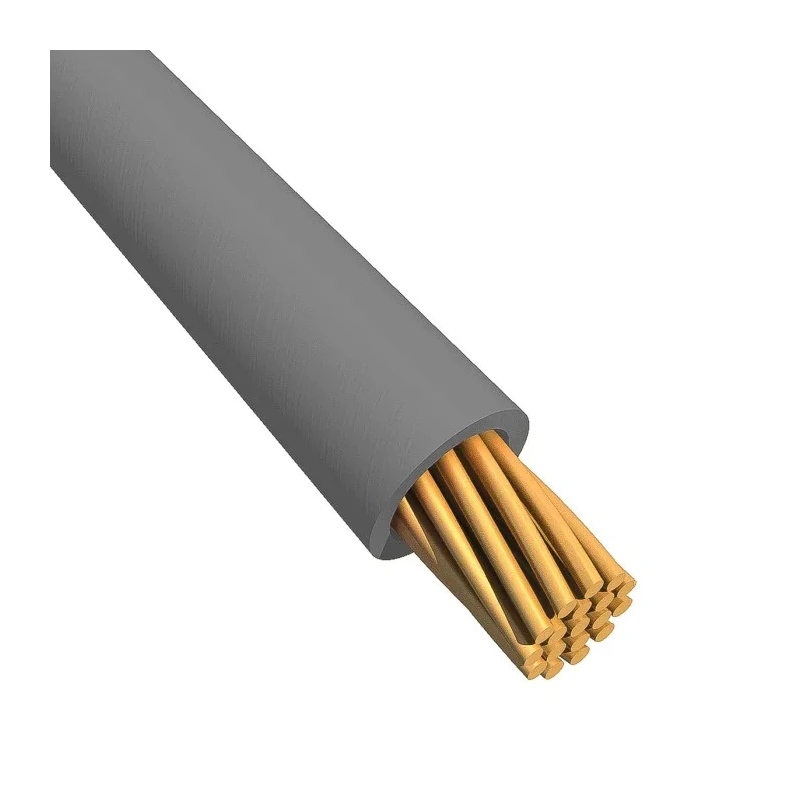

Alpha Wire Ecogen Ecowire Series Grey 2.1 mm² Hook Up Wire, 14 AWG, 41x0.25 mm Strands, 30 m, Modified 6717 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 2.1mm² |
| Model | 6717 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecowire |
| Outside diameter | 2.44mm |
| Maximum Operating Temperature | 105°C |
| Conductor Material | Copper |
| Sub Type | EcoWire |
| Cable Type | Hookup |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Modified Polyphenilether |
| Standards/Approvals | CE, CSA, UL |
| Jacket Colour | Grey |
| Fire Behaviour | Flammability Test: VW-1 |
| American Wire Gauge | 14AWG |
| Number of Strands | 41 |
| Core Strands | 41 x 0.25mm |
| Size of Strands | 0.25mm |
| Fire Behaviour Flammability Test | VW-1 |
Key Features
- Constructed with copper conductor material for excellent electrical conductivity.
- Rated for 600 V operating voltage and temperatures from -40°C to 105°C.
- Jacket is made from a modified polyphenylether thermoplastic offering flame retardancy and recyclability.
- Complies with CE, CSA, and UL standards including flame retardant VW-1 rating.
- EcoWire technology reduces diameter and weight by up to 45% and 40% respectively compared to PVC.
- Stranded conductor design with 41 strands of 0.25 mm core strands enhances flexibility.
- Ideal for control panels, automotive wiring, meters, ovens, and electronic equipment internal wiring.
- Available in lengths suitable for various industrial and commercial applications.
Product Description
Alpha Wire 6717 SL005 Ecogen Ecowire Series Grey Hook Up Wire features a 2.1 mm² cross-sectional area with 14 AWG size and is constructed with 41 strands of 0.25 mm diameter copper conductors. The wire is 30 meters long with an outside diameter of 2.44 mm and a jacket made from modified polyphenylether. This hook up wire is rated for 600 V operating voltage and can withstand temperatures ranging from -40°C minimum to 105°C maximum.
The EcoWire series utilizes a modified polyphenylene ether thermoplastic which makes the wire fully recyclable and environmentally friendly without compromising performance. The enhanced dielectric properties enable a reduced wall thickness, resulting in up to 45% smaller diameter and up to 40% lighter weight than traditional PVC insulated wires.
This wire complies with CE, CSA, and UL standards, including UL AWM 11028 VW-1 flame retardant rating and CSA AWM I A/B FT1 certification. It offers flame resistance to the VW-1 flame test for enhanced safety in industrial and commercial settings.
EcoWire 6717 SL005 is ideal for industrial, laboratory, automotive, and electronic applications such as control panels, meters, ovens, internal wiring of computers, business machines, and appliances. It is compatible with Alpha Wire's FIT heat-shrink tubing and wire management systems for optimized wiring solutions.
Fully recyclable EcoWire insulation reduces environmental impact. Lightweight and compact design saves space and weight in wiring harnesses. Stranded copper conductor provides flexibility and reliable conductivity. High temperature and voltage ratings support robust electrical performance.
Meets multiple international electrical and flame safety standards. Suitable for a wide range of industrial and commercial electrical applications. Produced with modified polyphenylether for chemical and oil resistance.
Alpha Wire products can be explored in the Wires & Cables category on EnvMart for tailored industrial electrical solutions. This 6717 SL005 model offers a high-performance and eco-friendly Hook Up Wire option to meet rigorous industry requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 105°C.
It is rated for a voltage of 600V.
This hook up wire features 41 strands of 0.25 mm diameter copper conductors.
The cross-sectional area of this wire is 2.1 mm², which corresponds to a 14 AWG size.
The jacket is made from modified polyphenylether, which offers flame retardancy and recyclability.
The outside diameter of this model is 2.44 mm, and it has a length of 30 meters.
It complies with CE, CSA, and UL standards, including a VW-1 flame retardant rating.
It is ideal for applications such as control panels, automotive wiring, meters, ovens, and internal wiring of electronic equipment.
The minimum operating temperature for this model is -40°C.
EcoWire technology reduces the diameter and weight of the wire by up to 45% and 40% respectively compared to traditional PVC wires.
Yes, it is compatible with Alpha Wire's FIT heat-shrink tubing and wire management systems.
This hook up wire is manufactured in India.
