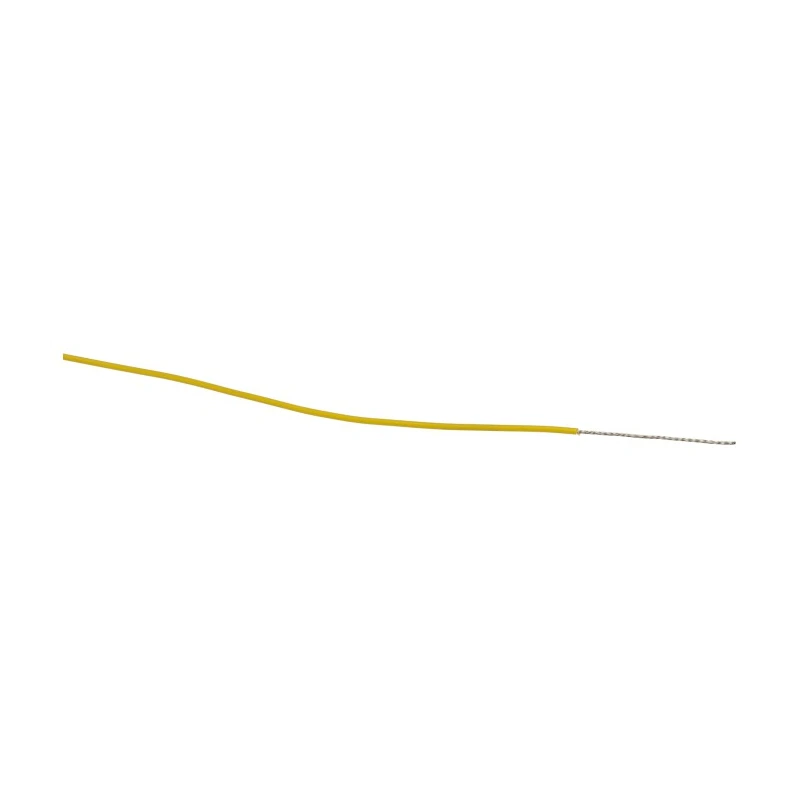

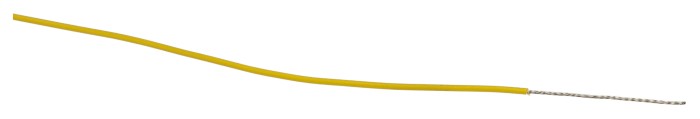

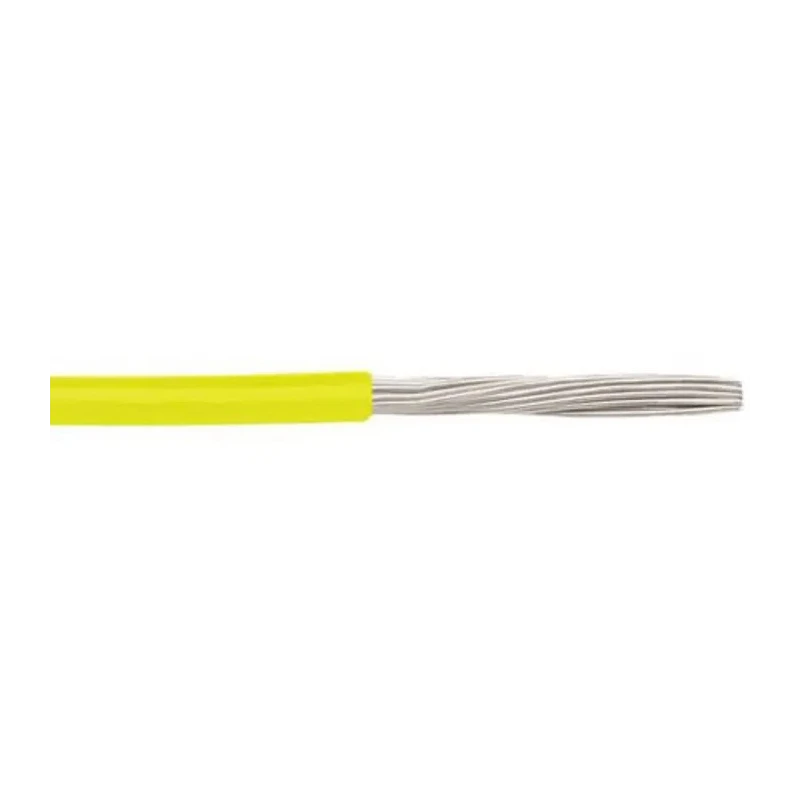

Alpha Wire Ecogen Ecowire Series Yellow 0.13 mm² Hook Up Wire, 26 AWG, 7/0.16 mm Strands, 30 m Length, MPPE Jacket 6711 YL005

Free Delivery in India | Lowest Global Shipping Charges

Alpha Wire Ecogen Ecowire Series Yellow 0.13 mm² Hook Up Wire, 26 AWG, 7/0.16 mm Strands, 30 m Length, MPPE Jacket 6711 YL005

Name: Alpha Wire Ecogen Ecowire Series Yellow 0.13 mm² Hook Up Wire, 26 AWG, 7/0.16 mm Strands, 30 m Length, MPPE Jacket 6711 YL005
Brand: ALPHA WIRE
SKU: 126569
Price: 38.06 USD
Availability: InStock



Category Hook Up Wire Brand ALPHA WIRE Condition New

Specifications

Country of Origin	India
Voltage	600V
Brand	Alpha Wire
CROSS SECTIONAL AREA	0.13mm²
Model	6711 YL005
Cable Length	30m
Series	Ecogen Ecowire
Outside diameter	0.97mm
Maximum Operating Temperature	105°C
Conductor Material	Tinned Copper
Cable Type	Single Core
Minimum Operating Temperature	-40°C
Jacket Material	MPPE
Standards/Approvals	CE, CSA, UL
Jacket Colour	Yellow
Fire Behaviour	Flame Retardant
American Wire Gauge	26AWG
Number of Strands	7
Core Strands	7 x 0.16mm
Size of Strands	0.16mm

Key Features

The wire length is 30 meters with a compact 0.97 mm outside diameter.
Constructed with tinned copper conductor for excellent conductivity.
Rated for 600 V operation and can withstand temperatures from -40°C to 105°C.
Flame retardant with UL VW-1 rating and meets CE, CSA, and ULC standards.
EcoWire series provides a recyclable design with reduced diameter and weight compared to PVC.
Suitable for control panels, automotive, and electronic equipment wiring.
The MPPE jacket enhances dielectric strength and chemical resistance.
Complies with RoHS, REACH, and IEC 60332-2 flame behavior standards.

Product Description

Alpha Wire 6711 YL005 Ecogen Ecowire Series yellow hook up wire features a 0.13 mm² cross-sectional area with 26 AWG size, constructed from tinned copper with 7 strands each 0.16 mm in diameter. This single core cable extends 30 meters long, coated with a flame retardant MPPE jacket, designed to withstand operating voltages up to 600 V and temperatures ranging from -40°C to 105°C. It is engineered for excellent dielectric properties with a significantly smaller diameter and lighter weight compared to traditional PVC insulated wires.

This hook up wire is ideal for a wide range of industrial and commercial applications including internal wiring of computers, control panels, automotive wiring, meters, ovens, electronic equipment, and business machines. The EcoWire series emphasizes environmental sustainability by using recyclable materials free from hazardous substances while maintaining electrical performance.

The product complies with UL AWM 11028 VW-1, CSA AWM I A/B FT1, CE, RoHS, REACH standards, and exhibits flame behavior conforming to IEC 60332-2. The enhanced MPPE jacket material offers flame retardancy and resistance to hazardous oils and chemicals, making it suitable for demanding environments.

The wire length is 30 meters with a compact 0.97 mm outside diameter. Constructed with tinned copper conductor for excellent conductivity. Rated for 600 V operation and can withstand temperatures from -40°C to 105°C. Flame retardant with UL VW-1 rating and meets CE, CSA, and ULC standards.

EcoWire series provides a recyclable design with reduced diameter and weight compared to PVC. Suitable for control panels, automotive, and electronic equipment wiring. The MPPE jacket enhances dielectric strength and chemical resistance.

Complies with RoHS, REACH, and IEC 60332-2 flame behavior standards. Supports safe and efficient wiring applications in industrial, commercial, and residential environments.

This hook up wire is an excellent choice for electrical, automation, manufacturing, and HVAC applications requiring reliable, safe, and eco-friendly wiring solutions. Explore more in the Hook Up Wire category for related cables and wiring accessories at EnvMart.
