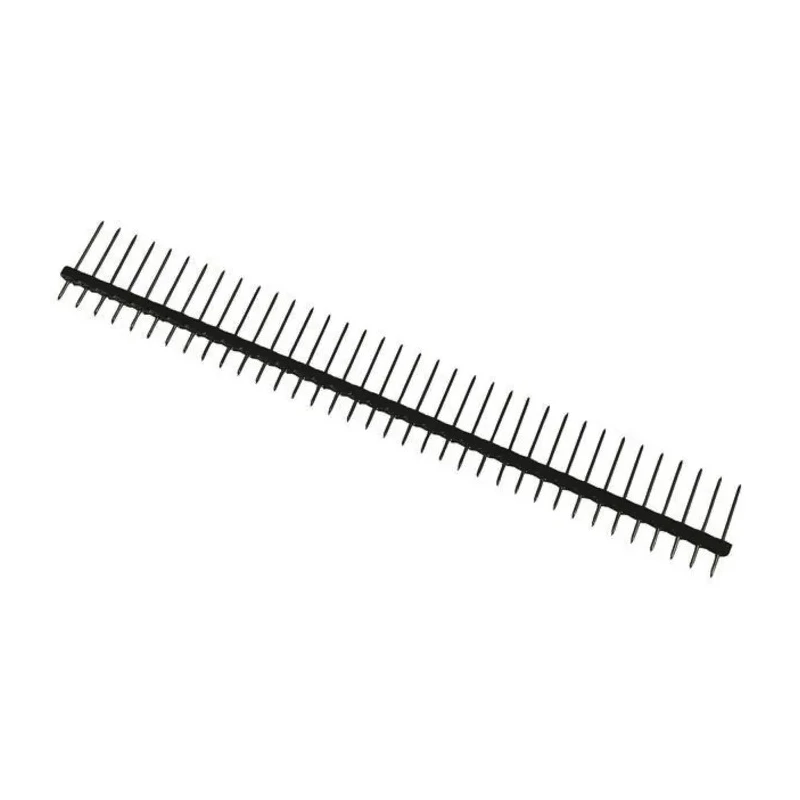

ASSMANN WSW AP Series Straight Through Hole Pin Header 36 Contact, 2.54 mm Pitch, 1 Row, Unshrouded AP 119-36/G-N
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 250V |
| Brand | ASSMANN WSW |
| Orientation | Straight |
| Current | 3A |
| Model | AP 119-36/G-N |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | AP |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 36 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3mm |
| Mating Pin Length | 7.9mm |
Key Features
- Constructed from polyamide housing material ensuring durability and insulation.
- Contacts are brass with gold plating for reliable conductivity.
- Supports a current rating of 3A and voltage rating up to 250V.
- Designed with a 3mm tail pin length and 7.9mm mating pin length for secure connections.
- Operating temperature ranges from -40°C to 105°C suitable for various industrial environments.
- Unshrouded, straight orientation accommodating board-to-board connector systems.
- Connector system is designed for through-hole mounting enhancing mechanical stability.
- Manufactured in Germany, maintaining high quality standards.
Product Description
ASSMANN WSW AP 119-36/G-N AP Series pin header is a high-quality electronic component designed for board-to-board connections in electronic assemblies. With 36 male contacts arranged in a single row, this through-hole mounted pin header features a standard 2.54 mm pitch, ensuring compatibility with a wide range of PCB designs.
The housing material is polyamide, providing robust insulation and durability for industrial and commercial electronics applications. Contacts are made of brass and plated with gold, offering excellent electrical conductivity and resistance to corrosion for reliable performance over time.
This pin header is rated for a current of 3A and voltage up to 250V, making it suitable for various low-voltage power and signal applications. Its operating temperature range from -40°C to 105°C allows usage in harsh industrial environments and across varying temperature conditions encountered in manufacturing and laboratory settings.
The design includes unshrouded straight pins with a 3mm tail and 7.9mm mating length, optimized for through-hole soldering and mechanical strength, frequently used in industrial electronics, automation systems, and control panels.
The product is manufactured in Germany, ensuring compliance with rigorous production standards. It supports efficient and secure connections in PCB assemblies for electronics manufacturing, robotics, instrumentation, and power supply equipment.
Constructed from polyamide housing material ensuring durability and insulation. Brass contacts with gold plating for optimum conductivity and corrosion resistance. Rated for 3A current and 250V voltage handling capacity.
Operating temperature range of -40°C to 105°C for versatility. Unshrouded, straight orientation suitable for board-to-board applications. Through-hole mounting for mechanical robustness. 36 contacts arranged in a single row with 2.54mm pitch.
Manufactured in Germany to high-quality standards.
Explore EnvMart’s extensive catalog for high-quality electronic connectors and components designed for precision and durability in industrial, laboratory, and commercial electronics projects.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 3A and a voltage rating of up to 250V.
The contacts are arranged with a standard pitch of 2.54 mm.
It operates effectively within a temperature range of -40°C to 105°C.
The housing is made from polyamide, while the contacts are brass with gold plating for enhanced conductivity.
This unit features 36 male contacts arranged in a single row.
The tail pin length is 3 mm, designed for secure connections.
It is designed for through-hole mounting, which enhances mechanical stability.
The mating pin length is 7.9 mm, optimized for effective connections.
Yes, it is designed as a board-to-board connector system, suitable for various applications.
This pin header is manufactured in Germany, ensuring high-quality standards.
It features a solder termination type for secure electrical connections.
The orientation is straight, accommodating various PCB designs.
