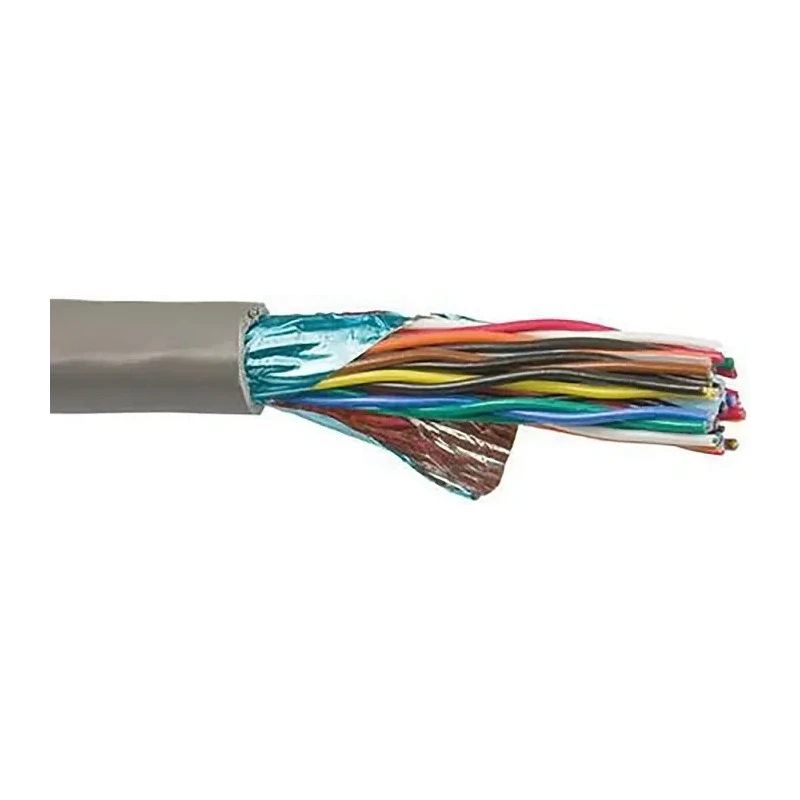

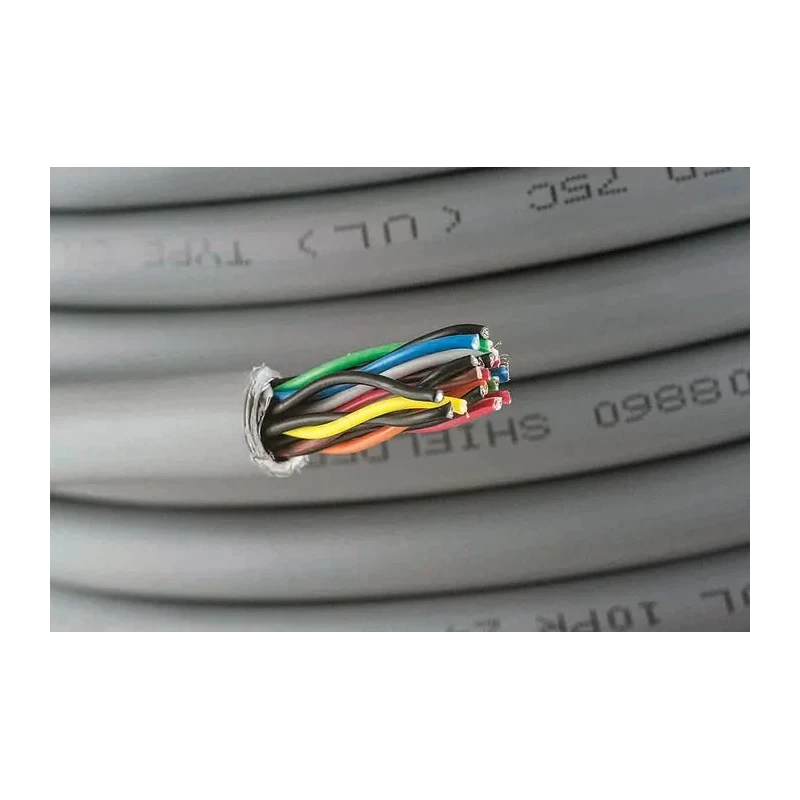

Alpha Wire LSZH Communication & Control Series Data Cable 10 Pairs 20 Cores 0.22mm² 30m Grey Sheath 300V 5480L SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.22mm² |
| Model | 5480L SL005 |
| Cable Length | 30m |
| Series | Alpha Essentials LSZH Communication & Control |
| Outside diameter | 9.6mm |
| Maximum Operating Temperature | 75°C |
| Number Of Cores | 20 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -20°C |
| Jacket Material | Low Smoke Zero Halogen |
| Standards/Approvals | CE |
| Jacket Colour | Grey |
| Fire Behaviour | IEC 60332-1 |
| Number of Strands | 7 |
| Core Strands | 7 x 0.2mm |
| Size of Strands | 0.2mm |
| Number of Pairs | 10 |
Key Features
- Features a twisted pair configuration to minimize crosstalk and interference.
- Constructed with 24 AWG tin copper wire cores for reliable conductivity.
- Outer grey Low Smoke Zero Halogen (LSZH) sheath provides enhanced flame retardance and low smoke emission.
- Designed for operation within a temperature range of -20°C to 75°C.
- 78 Ohm characteristic impedance ensures stable signal transmission in control systems.
- CE certified to meet rigorous European quality and safety standards.
- Suitable for use in industrial automation, electrical control panels, surveillance systems, and communication networks.
- Core strands consist of 7 strands each measuring 0.2mm diameter.
Product Description
Alpha Wire 5480L SL005 LSZH Communication & Control Series Data Cable is engineered to meet demanding industrial and communication needs with excellent signal integrity and safety features. This Data Cable includes 10 twisted pairs comprising 20 cores of 0.22mm² cross-sectional area, constructed from tin copper wire with 7 strands per core for enhanced flexibility and durability.
The cable's LSZH (Low Smoke Zero Halogen) grey jacket minimizes toxic and opaque smoke under fire conditions, making it an optimal choice for safety-critical environments. Its 9.6mm outside diameter and operational temperature range from -20°C to 75°C accommodate diverse installation conditions.
With a 78 Ohm characteristic impedance and CE certification, the 5480L SL005 cable assures high performance compliance and compatibility with European standards, ideal for automation systems, control panels, communication networks, and surveillance installations.
Features a twisted pair design to reduce electromagnetic interference. 24 AWG tin copper cores deliver excellent conductivity and mechanical strength. Grey LSZH jacket enhances fire safety by reducing harmful emissions. Operating voltage rated at 300V supports a wide range of industrial control applications.
Conforms to IEC 60332-1 fire behavior standard for additional fire resistance assurance. Core strand configuration of 7 strands per core ensures flexibility. Durable construction supports use in industrial automation and communication technology.
CE compliance verifies adherence to European quality and safety regulations.
This cable is well-suited for installation in electrical control panels, industrial automation systems, communication infrastructure, and surveillance system networks. The robust LSZH jacketing and precise cable construction help ensure reliable performance and safety in various industrial and commercial environments.
Explore more from the Alpha Wire Alpha Essentials LSZH Communication & Control Series for comprehensive control cabling solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable is rated for operation at 300V, making it suitable for a variety of industrial control applications.
This model can operate at a maximum temperature of 75°C, allowing for use in various environments.
The data cable features 20 cores, organized into 10 twisted pairs.
The conductors have a cross-sectional area of 0.22mm², which contributes to reliable conductivity.
The conductors are made from tin copper wire, which enhances conductivity and mechanical strength.
The outside diameter of the cable is 9.6mm, which is important for installation considerations.
It features a Low Smoke Zero Halogen (LSZH) jacket, which minimizes toxic smoke emissions in case of fire.
Yes, this model is CE certified, ensuring it meets rigorous European quality and safety standards.
The minimum operating temperature for this cable is -20°C, making it versatile for different applications.
It conforms to the IEC 60332-1 fire behavior standard, providing additional fire resistance assurance.
Each core consists of 7 strands, each measuring 0.2mm in diameter, which enhances flexibility.
This cable is suitable for use in industrial automation, electrical control panels, surveillance systems, and communication networks.
