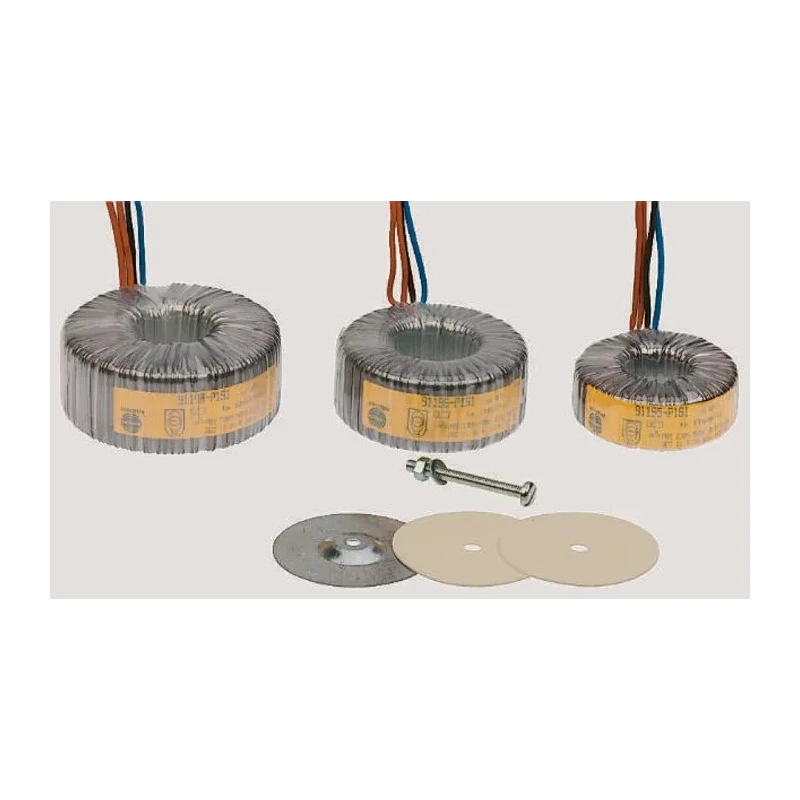

RS PRO 230 V ac 11.8 V ac Toroidal Transformer 2 Output 105 VA, IEC61558 Class II, EN61558 Class II, UL506, VDE0570 671-9198

RS PRO model 671-9198 is a high-quality Toroidal Transformer engineered for industrial and electronic applications requiring precise voltage transformation and reliable power delivery.

This toroidal open wound transformer features a primary voltage rating of 230 V ac and secondary voltage of 11.8 V ac with two outputs, providing a total power output capacity of 105 VA.

Incorporating a single primary winding operating at 50/60 Hz frequency, it includes an integral thermal switch rated at 120° ±5°C to protect against overheating, ensuring enhanced safety and operational longevity. The primary leads are double insulated for added protection during use.

The transformer is constructed with copper conductor termination wires, guaranteeing solid and secure electrical connections for integration into your setup.

Its compact dimensions - 93 mm diameter and 46 mm height - along with a weight of 1.25 kg, make it suitable for various industrial and lighting equipment without excessive space or weight constraints.

Compliant with international standards IEC61558 Class II, EN61558 Class II, UL506, and VDE0570 Class II, this product ensures adherence to safety and performance benchmarks according to global industrial guidelines.

This model is ideal for use in industrial electronics, power supply systems, lighting applications, and other environments requiring stable voltage transformation with thermal protection.

Please note, mounting hardware is not included and must be sourced separately. Care must be taken to avoid simultaneous contact of both ends of the fixing bolt with the metal chassis to prevent dangerous shorted-turn conditions.

Designed for low voltage lighting applications with toroidal open wound construction. Single primary 230 Vac 50 / 60 Hz winding with an integral thermal switch. Thermal switch rated at 120° ±5°C for 50 and 105 VA models for reliable protection.

Double insulated primary leads improve safety and operational resilience. Copper conductor termination wires for secure electrical connections. Meets standards IEC61558 Class II, EN61558 Class II, UL506, and VDE0570 Class II for quality assurance.

Compact diameter of 93 mm and height of 46 mm for easy integration in various devices. Maximum operating temperature of 180°C suitable for demanding environments. Two outputs delivering a secondary current of 8.898A for efficient power delivery.
