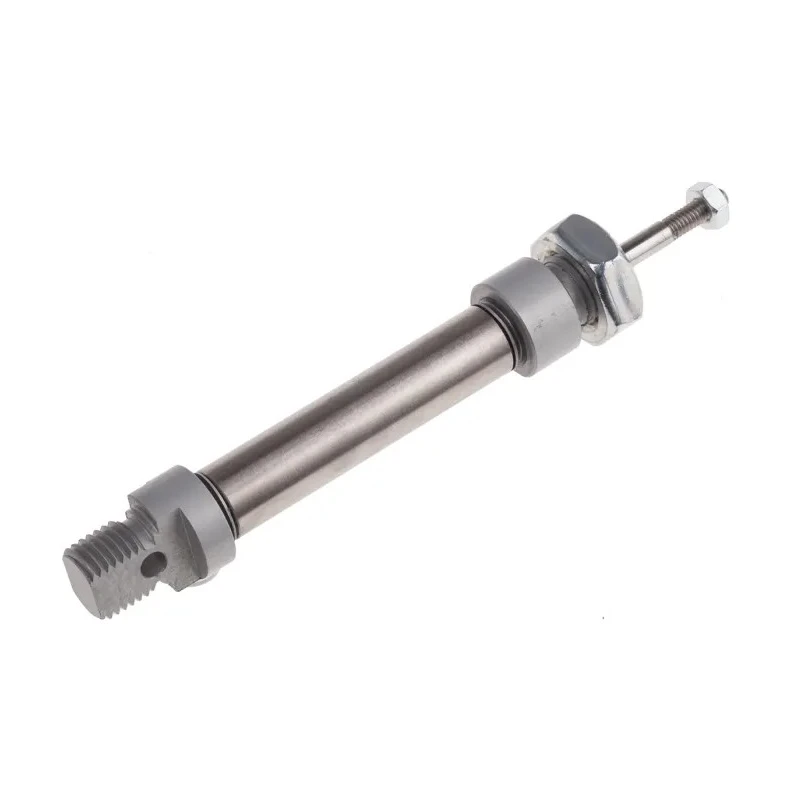

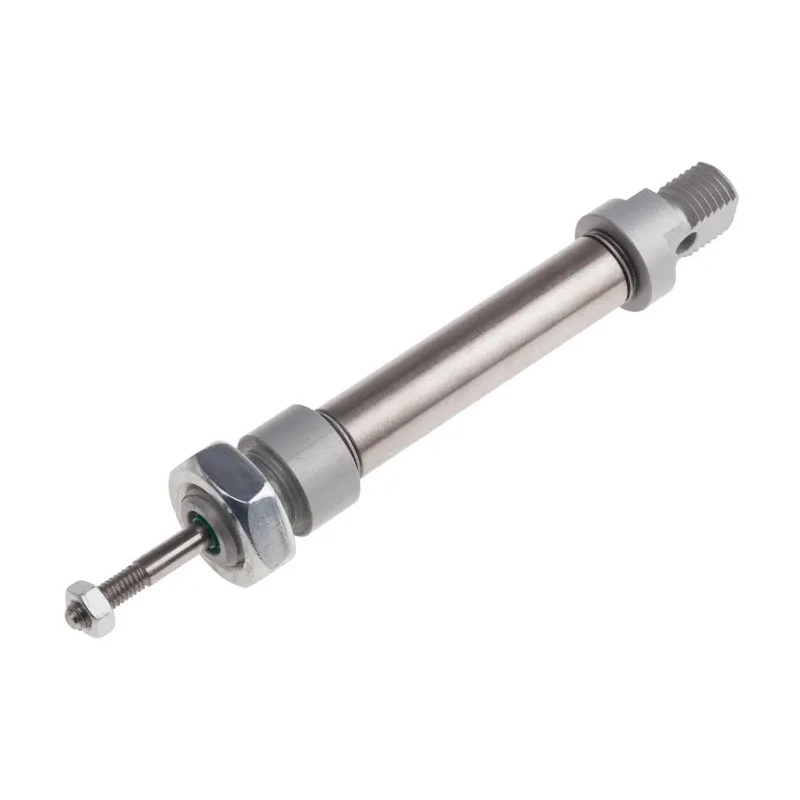

RS PRO Pneumatic Piston Rod Cylinder 10mm Bore, 25mm Stroke, ISO 6432 Series, Double Acting 304-3410
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | RS PRO |
| Body Material | Stainless Steel |
| Maximum Operating Pressure | 10 bar |
| Model | 304-3410 |
| Mount Type | Both Ends Tapped |
| Pressure Range | 1-10 bar |
| Series | ISO 6432 |
| Medium | Compressed air, filtered, lubricated or non-lubricated |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 25mm |
| Bore Diameter | 10mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Cushioning Type | Buffer |
| Piston Rod Gender | Female |
| Piston Rod Thread Size | M5 |
| Ambient temp. Range | -20°C to +80°C |
Key Features
- Constructed with AISI 304 stainless steel body and AISI 303 stainless steel piston rod for enhanced durability.
- Features a single rod type with female piston rod thread size M5 suitable for versatile mounting.
- Equipped with a buffer cushioning type and both ends tapped mount type for stable operation.
- Operates efficiently within a pressure range of 1 to 10 bar and temperature range from -20°C to 80°C.
- Designed to work with compressed air, filtered, lubricated or non-lubricated mediums.
- Complies with ISO 6432 series standards ensuring high precision and interchangeability.
- Includes sintered bronze nose bearing and pre-lubricated NBR seals for smooth piston movement.
- Supplied with nose nut and piston rod nut for secure assembly and installation.
Product Description
The RS PRO 304-3410 Pneumatic Piston Rod Cylinder is engineered to provide high performance and long service life in pneumatic systems. With a 10mm bore diameter and 25mm stroke length, this ISO 6432 series cylinder is double acting, delivering reliable and consistent actuation for industrial automation tasks.
Manufactured with an AISI 304 stainless steel body and AISI 303 piston rod, the cylinder ensures excellent corrosion resistance and mechanical strength. The single rod with female thread (M5) facilitates ease of integration into various pneumatic setups. Both ends tapped mount type provides flexibility in installation options.
The cylinder is equipped with buffer cushioning to minimize impact at the end of the stroke, protecting the cylinder and connected equipment. Operating pressure ranges from 1 to 10 bar, suitable for a wide range of pneumatic control applications. It functions effectively within ambient temperatures from -20°C to +80°C and is compatible with compressed air whether filtered, lubricated, or non-lubricated.
Additional quality features include a sintered bronze nose bearing and pre-lubricated NBR seals that promote smooth operation and reduce maintenance needs. The anodised aluminium end caps further contribute to durability and stability during use.
This product is ideal for use in industrial automation, manufacturing lines, laboratory automation, and pneumatic tooling where precision and durability are paramount. It is supplied complete with a nose nut and piston rod nut for immediate installation.
Constructed with AISI 304 stainless steel body and AISI 303 stainless steel piston rod for enhanced durability. Features a single rod type with female piston rod thread size M5 suitable for versatile mounting. Equipped with a buffer cushioning type and both ends tapped mount type for stable operation.
Operates efficiently within a pressure range of 1 to 10 bar and temperature range from -20°C to 80°C. Designed to work with compressed air, filtered, lubricated or non-lubricated mediums. Complies with ISO 6432 series standards ensuring high precision and interchangeability.
Includes sintered bronze nose bearing and pre-lubricated NBR seals for smooth piston movement. Supplied with nose nut and piston rod nut for secure assembly and installation. Explore more Pneumatic Piston Rod Cylinders and components within the RS PRO range on EnvMart for reliable industrial pneumatic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure for this pneumatic piston rod cylinder is 10 bar.
This model has a stroke length of 25mm.
The bore diameter of this cylinder is 10mm.
It is equipped with buffer cushioning to minimize impact at the end of the stroke.
The operating temperature range for this model is from -20°C to +80°C.
This unit is designed to work with compressed air, whether filtered, lubricated, or non-lubricated.
The piston rod thread size is M5, which is suitable for versatile mounting.
It complies with ISO 6432 series standards, ensuring high precision and interchangeability.
The body is constructed from AISI 304 stainless steel and the piston rod from AISI 303 stainless steel.
This model features a both ends tapped mount type, providing flexibility in installation options.
It includes a sintered bronze nose bearing and pre-lubricated NBR seals that promote smooth operation and reduce maintenance needs.
This pneumatic piston rod cylinder is double acting, delivering reliable and consistent actuation.
