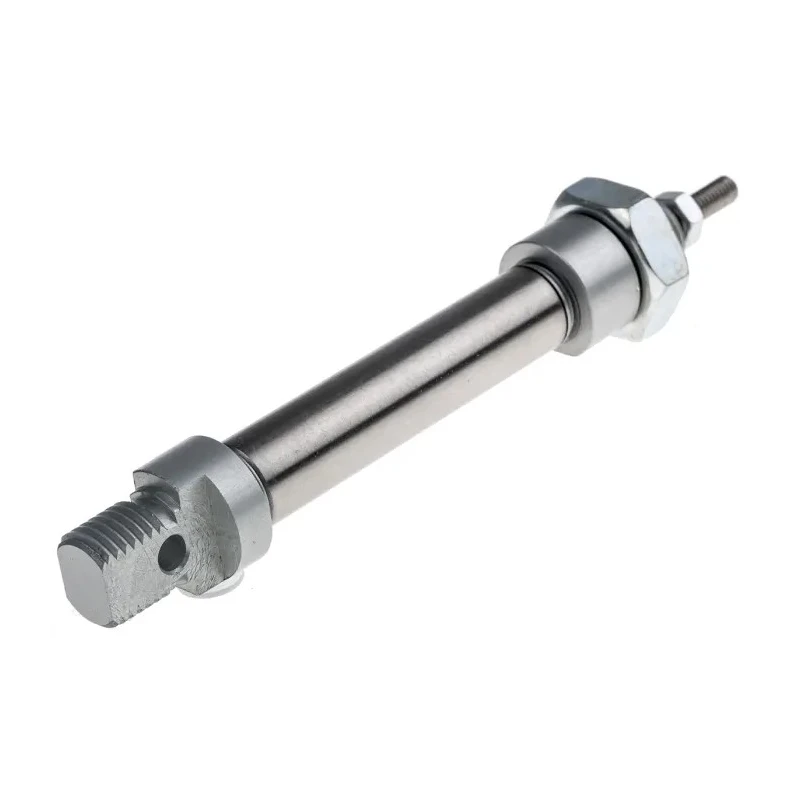

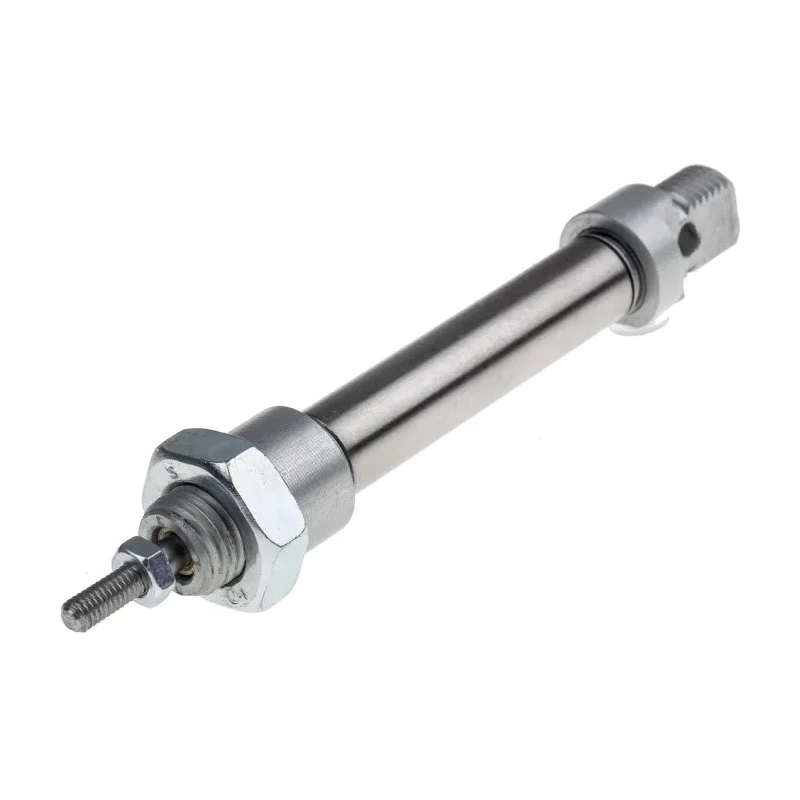

RS PRO Pneumatic Piston Rod Cylinder - 10mm Bore, 25mm Stroke, ISO 6432 Series, Single Acting, Stainless Steel Body 304-3353

RS PRO 304-3353 Pneumatic Piston Rod Cylinder is a precision-engineered single acting pneumatic actuator featuring a 10mm bore and 25mm stroke length, designed according to ISO 6432 series standards. Constructed with a robust AISI 304 stainless steel body and AISI 303 stainless steel piston rod, this cylinder provides excellent corrosion resistance and long service life in demanding industrial environments.

Its foot mount design combined with buffer cushioning ensures smooth and controlled piston movement, minimizing wear and mechanical stress during operation. The cylinder operates efficiently within a pressure range of 1 to 10 bar and is optimized for compressed air as the medium, whether filtered, lubricated or non-lubricated.

Temperature tolerance spans from a minimum of -20°C to a maximum of 80°C, allowing use in a variety of ambient conditions commonly found in manufacturing, automation, and fluid power applications. The sintered bronze nose bearing and pre-lubricated NBR seals contribute to reduced maintenance requirements and reliable sealing under dynamic loads.

The piston rod is female-threaded (M12 x 1.25, metric standard) for easy integration with various industrial fittings. The package includes both nose nut and piston rod nut to facilitate assembly and installation.

Constructed with AISI 304 stainless steel body and AISI 303 stainless steel piston rod for enhanced durability. Complies with ISO 6432 series and RoHS standards for reliable industrial application. Operates under a pressure range of 1 to 10 bar, suitable for compressed air environments.

Equipped with foot mount type and buffer cushioning for smooth operation and increased lifespan. Designed for use within ambient temperatures of -20°C to +80°C, capable of handling variable industrial environments. Includes pre-lubricated NBR seals and sintered bronze nose bearing for maintenance efficiency.

Features a piston rod thread size of M12 x 1.25 with a female rod type for secure mechanical connection. Supplied with nose nut and piston rod nut for safe and effective installation. Suitable medium includes filtered, lubricated or non-lubricated compressed air.

This cylinder is ideal for integration in industrial automation, pneumatic tooling, machinery manufacturing, and process equipment within applications requiring precise pneumatic actuation. The stainless steel materials enhance resistance to corrosion and wear in laboratory, HVAC, agricultural, and commercial manufacturing environments. RS PRO Pneumatic Piston Rod Cylinders represent trusted mechanical components recognized for their quality and compliance.
