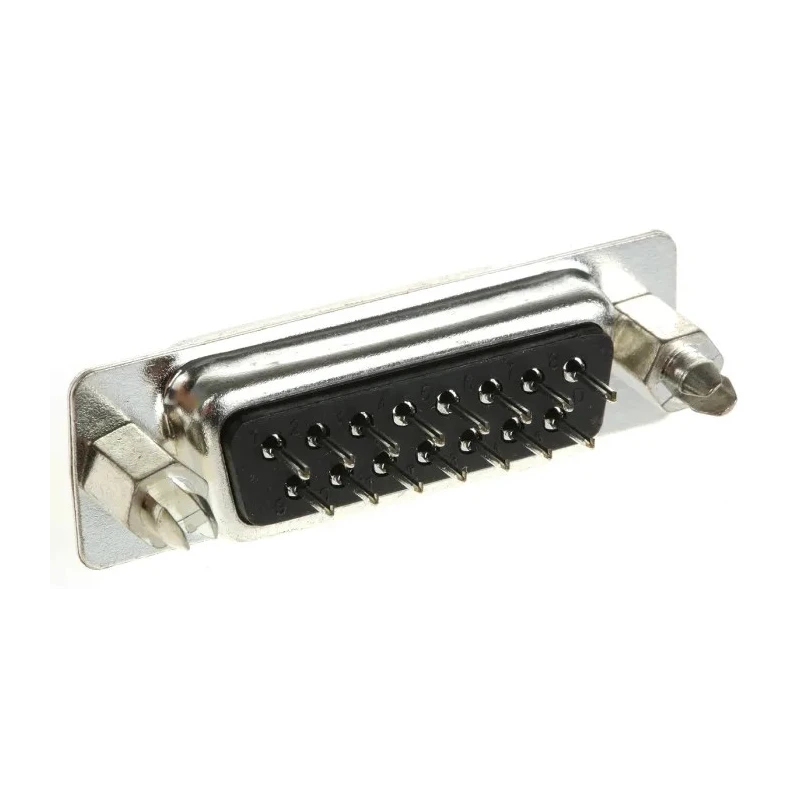

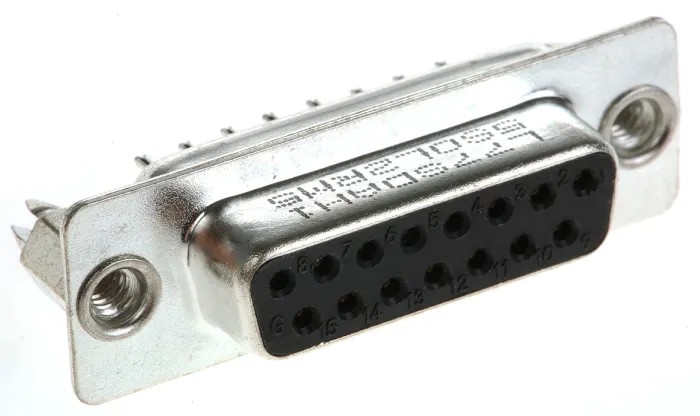

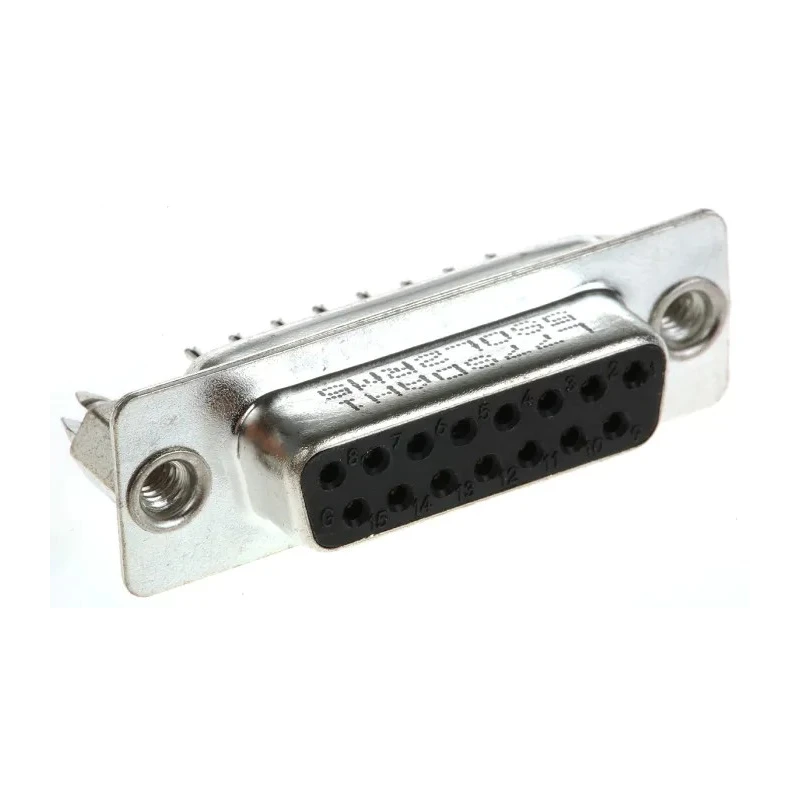

Amphenol Communications Solutions 15 Way Straight 2.74 mm Pitch Panel Mount D-Sub Connector, 5A, Female, Thermoplastic L77SD
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Current | 5A |
| Model | L77SD |
| Mount Type | Panel Mount |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | L77SD |
| Mounting Hardware | 4 to 40 UNC |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.74mm |
| Contact Plating | Gold |
| Number of Contacts | 15 |
| Contact Gender | Female |
| Connector Gender | Female |
| D-Sub Shell Size | A |
| Pitch between rows | 2.84 mm |
Key Features
- This connector features a straight orientation with 15 female contacts.
- It supports a current rating of 5A and a voltage rating of 250V for reliable performance.
- The housing material is thermoplastic, ensuring durability and thermal resistance.
- Its mounting type is panel mount with 4 to 40 UNC hardware for secure fixing.
- Contact materials are phosphor bronze with gold plating for corrosion resistance and excellent conductivity.
- The connector pitch is 2.74 mm with a pitch between rows of 2.84 mm.
- It operates within a temperature range of -55°C to 125°C, suitable for harsh environments.
- Termination type is solder, suitable for PCB mounting.
Product Description
Amphenol Communications Solutions L77SD 15 Way Straight 2.74 mm Pitch Panel Mount D-Sub Connector offers superior electrical connections for durable and reliable performance in demanding environments. Featuring a panel mount design with 4 to 40 UNC mounting hardware, this female connector is suitable for a wide range of industrial, military, and commercial applications.
The connector is constructed with a thermoplastic housing that provides excellent thermal and mechanical protection. The contacts, made from phosphor bronze and selectively gold plated, ensure high conductivity and resistance to corrosion. Designed for printed circuit boards, it uses a solder termination type with straight orientation.
This D-Sub Connector delivers a current rating of 5A and a voltage rating of 250V, making it suitable for powering and signal applications. It operates reliably between -55°C and 125°C, ensuring stable performance even under extreme conditions.
The pitch between the contacts is 2.74 mm, with a row pitch of 2.84 mm, allowing compatibility with various PCB layouts. The mounting system uses cylindrical harpoons with threaded spacers that also serve as earthing points for cards with thicknesses between 1.6 mm and 3.2 mm, providing excellent retention without protruding at the back.
Amphenol's L77SD series is designed with high quality and precision, meeting the needs of electronics manufacturing, computer interfacing, and communication equipment industries. 15-way female connector with straight orientation.
Panel mount type with 4 to 40 UNC hardware. Thermoplastic housing for durability and thermal resistance. Phosphor bronze contacts with gold plating for excellent conductivity. Solder termination for secure PCB connection.
Rated for 5A current and 250V voltage. Operational temperature range from -55°C to 125°C. Pitch: 2.74 mm; pitch between rows: 2.84 mm. Robust mounting system with cylindrical harpoons and threaded spacers. This connector is widely used in industrial, military, computer interface, and commercial electronics systems. Find more products and enhance your technical designs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector has a current rating of 5A and a voltage rating of 250V, making it suitable for powering and signal applications.
It operates reliably within a temperature range of -55°C to 125°C, which is suitable for harsh environments.
The housing is made of thermoplastic, while the contacts are made from phosphor bronze with gold plating for corrosion resistance and conductivity.
It features a panel mount design and uses 4 to 40 UNC mounting hardware for secure fixing.
The pitch between the contacts is 2.74 mm, with a pitch between rows of 2.84 mm, allowing compatibility with various PCB layouts.
It uses a solder termination type, which is suitable for printed circuit board (PCB) mounting.
This model features a straight orientation, which is common for panel mount applications.
The connector has 15 female contacts, designed for reliable electrical connections.
It is widely used in industrial, military, computer interface, and commercial electronics systems.
The D-Sub shell size for this model is A, which is a standard size for many applications.
It includes cylindrical harpoons with threaded spacers that also serve as earthing points for cards with thicknesses between 1.6 mm and 3.2 mm.
The country of origin for this connector is India.
