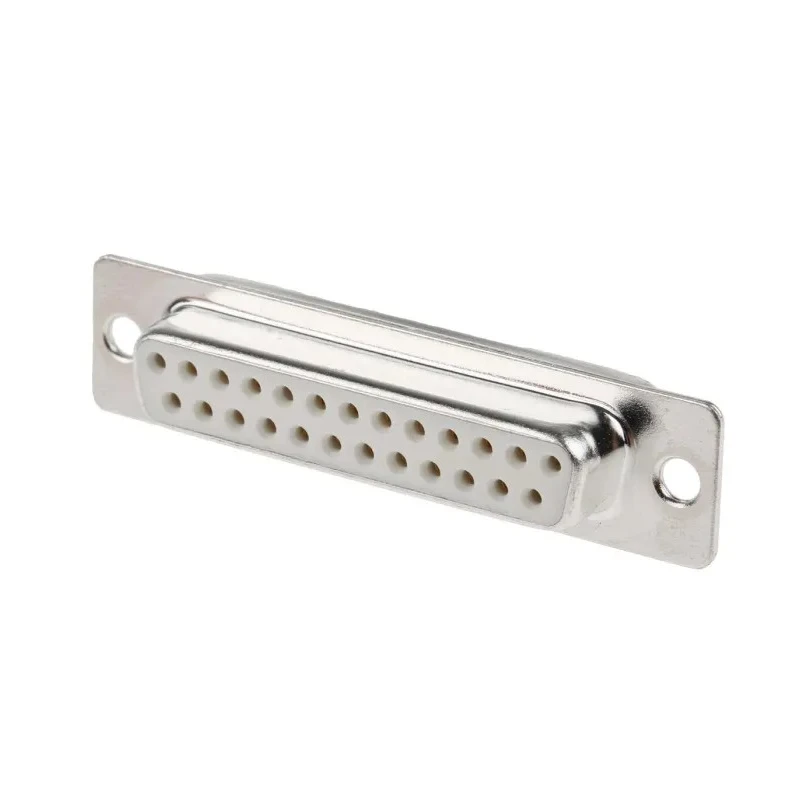

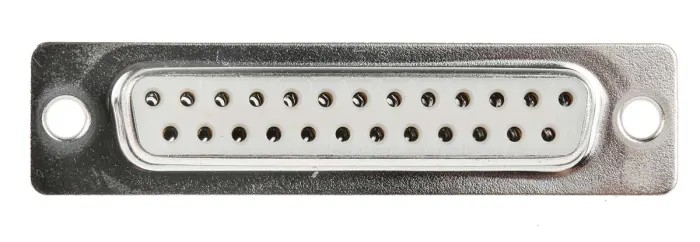

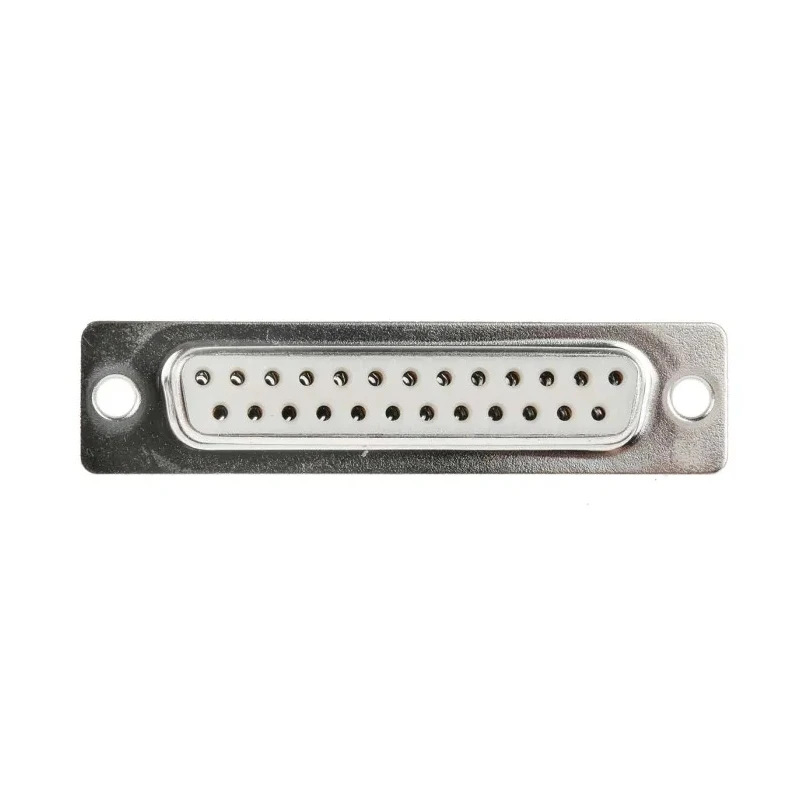

RS PRO 25 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector with 3.05 mm Through Hole Female 544-3828

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 25 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector with 3.05 mm Through Hole Female 544-3828

Name: RS PRO 25 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector with 3.05 mm Through Hole Female 544-3828
Brand: RS PRO
SKU: 123495
Price: 4.17 USD
Availability: InStock



Category D-Sub Connector Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Voltage	500V
Brand	RS PRO
Orientation	Straight
Current	5A
Model	544-3828
Mount Type	Panel Mount
Housing Material	Steel
Contact Material	Brass
Mounting Hardware	3.05 mm Through Hole
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Pitch	2.77mm
Contact Plating	Gold
Number of Contacts	25
Contact Gender	Female
Connector Gender	Female
Connector Type D	D-Sub
D-Sub Shell Size	B
25W ECON D SKTBrand	NEUTRAL
25 way formed cont straight D skt,500VacBrand	NEUTRAL
JAE 25 Way Straight Panel Mount D-Sub Connector FemaleBrand	JAE

Key Features

This panel mount connector supports 25 contacts for reliable high-density interconnections.
Constructed with a durable steel shell and gold plated brass contacts for optimal conductivity.
Designed for operation up to 500 V and 5A current rating ensuring industrial performance.
Features solder type termination with female contact gender and straight orientation for easy wiring.
Suitable for harsh conditions with operating temperature range from -55°C to 105°C.
Provides EMI/RFI protection via tin-plated steel shell and secure mounting with flanges and holes.
Ideal for industrial communication, networking, and data equipment requiring secure panel I/O connections.

Product Description

RS PRO 544-3828 is a high-quality 25 Way Straight Panel Mount D-Sub Connector featuring a refined 2.77 mm pitch and a 3.05 mm through hole mounting system. It integrates female brass contacts plated with gold, housed within a robust steel shell to deliver excellent mechanical integrity and electrical performance.

This connector is engineered for secure and reliable connections in demanding industrial and commercial applications. Rated for voltages up to 500 V and currents of 5A, it supports a broad temperature range from -55°C to 105°C, enabling stable operation under extreme environmental conditions.

The connector's solder termination type with female contacts allows straightforward wire connections, while the straight orientation ensures compatibility with standard panel mount layouts. Its design includes flanges with mounting holes for firm fixation, supporting EMI/RFI shielding through the tin-plated steel shell.

Widely used in computers, monitors, networking equipment, data processing devices, industrial instruments, and portable electric generation equipment, this connector meets diverse I/O interconnection requirements with durability and high reliability.

This panel mount D-Sub Connector integrates solder cup terminations for ease of installation. Gold-plated brass contacts provide long-lasting corrosion resistance and signal integrity. The steel shell design enhances EMI/RFI shielding and mechanical robustness.

Mounting flanges with holes facilitate secure panel installation. Rated for 5A current and 500 V voltage supports varied industrial applications. Operating temperature range from -55°C to 105°C accommodates harsh environments.

Female contact gender with straight orientation broadens compatibility.

RS PRO's 544-3828 model is an essential component for applications requiring resilient, high-density, and reliable panel mount connectors in electronics, data communications, and industrial automation sectors. This product is a trusted choice for professionals needing consistent electrical performance in challenging conditions.
