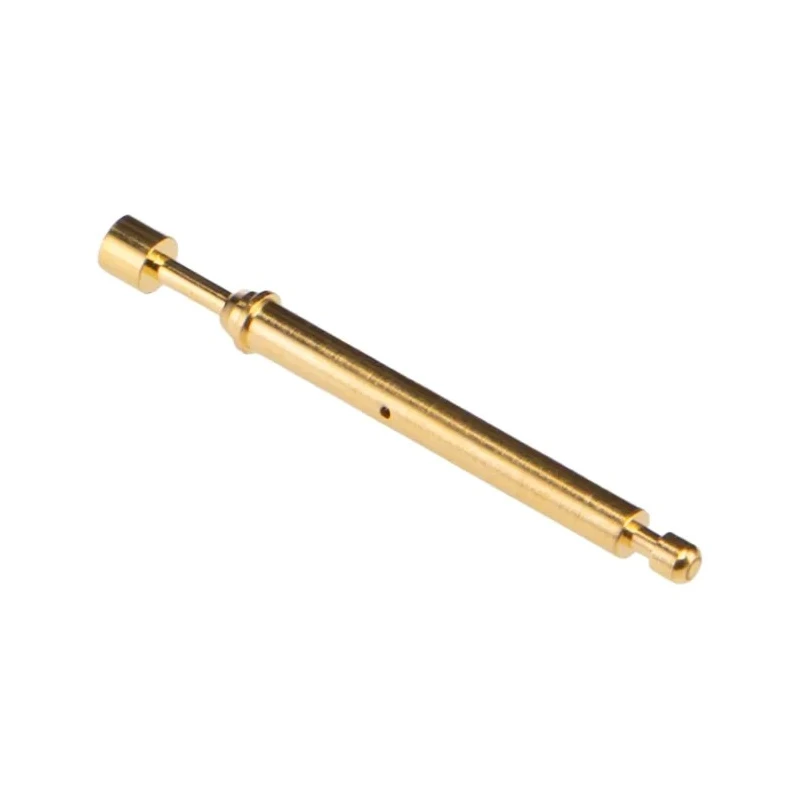

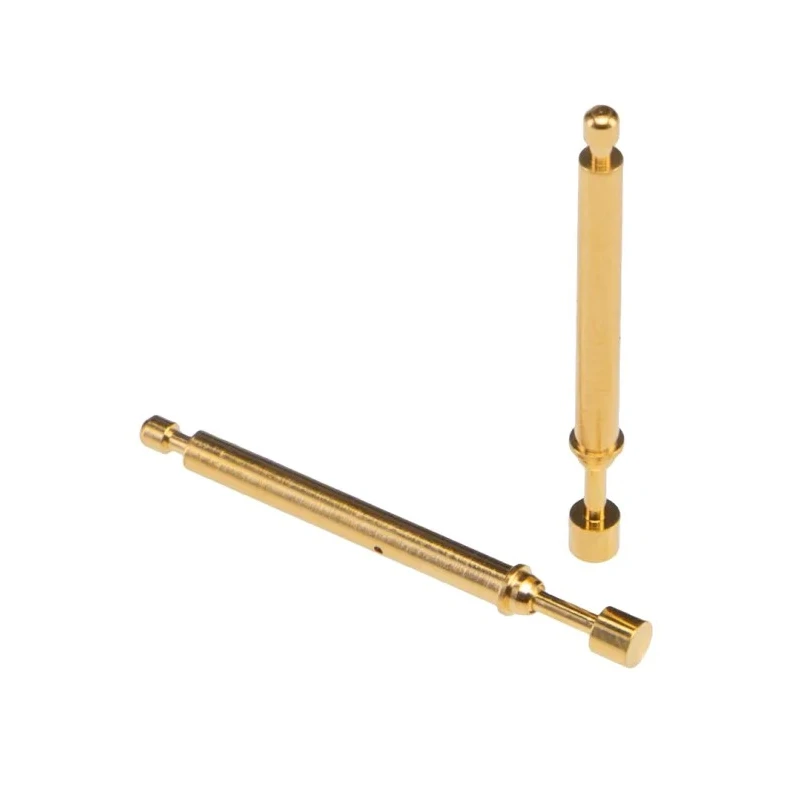

HARWIN Gold Test Pin 2A Gold Plated Brass Contact Male Spring Terminal P1113CA3
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | HARWIN |
| Colour | Gold |
| Current | 2A |
| Model | P1113CA3 |
| Gender | Male |
| Contact Material | Brass |
| Contact Plating | Gold |
| Termination Method | Spring Terminal |
| RS PRO Test Pin, 2ARS Stock No. | 521-611Brand: RS PRO |
| Concave spring-loaded test terminal,5ABrand | HARWIN |
| RS PRO Test Pin, 2ABrand | RS PRO |
Key Features
- Rated for a current of 2 amperes ensuring efficient performance.
- Constructed from brass with gold plating for corrosion resistance and durability.
- Features a concave probe tip for precise PCB pin and solder joint location.
- Operates effectively within a temperature range of -40°C to 85°C.
- Termination by spring terminal enables secure and easy wire connection.
- Suitable for multipoint PCB testing during development and production stages.
- Applications include aerospace, medical equipment, military, energy installations, and transportation sectors.
Product Description
HARWIN P1113CA3 Gold Test Pin 2A is a high-quality male spring-loaded test terminal designed for efficient and reliable testing of PCB sub-assemblies in industrial and laboratory environments. This gold-plated brass contact provides excellent electrical conductivity and long-term durability, making it well suited for professional electrical test and measurement applications.
With a current rating of 2 amperes and a length of 27 mm, the test pin is engineered for fast multipoint testing during product development and production lines. The concave probe tip ensures accurate location on PCB pins and solder joints, enhancing test precision.
The spring terminal termination method allows for secure wire assembly by stripping and soldering the wire behind the probe, guaranteeing stable electrical connection throughout repeated testing cycles. A minimum 3 mm pitch spacing is recommended to maintain optimal electrical performance when mounting multiple probes.
Operating reliably across a temperature range from -40°C to 85°C, this test pin is suitable for use in demanding sectors including aerospace, medical device manufacturing, energy installations, military equipment, and transportation industries.
Rated current: 2 amperes for consistent electrical testing. Durable gold-plated brass construction offers resistance to corrosion. Concave tip provides exact contact with PCB pins and solder joints. Spring terminal ensures firm and reliable wire termination.
Compact 27 mm length and 3 mm pitch size optimize PCB testing layouts. Ideal for industrial, laboratory, aerospace, and healthcare applications. Manufactured in Taiwan, Province Of China following high-quality standards.
This HARWIN Gold Test Pin P1113CA3 is an essential component for electrical test setups, enabling precise and dependable electrical measurements in various industrial and scientific fields. Explore EnvMart for additional high-quality Test Connectors and measurement instruments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 2 amperes, ensuring efficient performance during electrical testing.
The contact is made of brass and features gold plating, providing excellent electrical conductivity and corrosion resistance.
The length of this test pin is 27 mm, which is optimized for PCB testing layouts.
A minimum pitch spacing of 3 mm is recommended to maintain optimal electrical performance when mounting multiple probes.
It operates effectively within a temperature range of -40°C to 85°C, making it suitable for various demanding applications.
The termination method is a spring terminal, allowing for secure wire assembly by stripping and soldering the wire behind the probe.
It is suitable for multipoint PCB testing during development and production stages, particularly in aerospace, medical equipment, military, energy installations, and transportation sectors.
This test pin is a male type, designed for connection to female terminals or connectors.
The concave probe tip ensures precise contact with PCB pins and solder joints, enhancing test accuracy during measurements.
It is manufactured in Taiwan, Province Of China, following high-quality standards.
The test pin features a gold color due to its gold plating, which also provides corrosion resistance.
The model number of this test pin is P1113CA3, which identifies it within the HARWIN product line.
