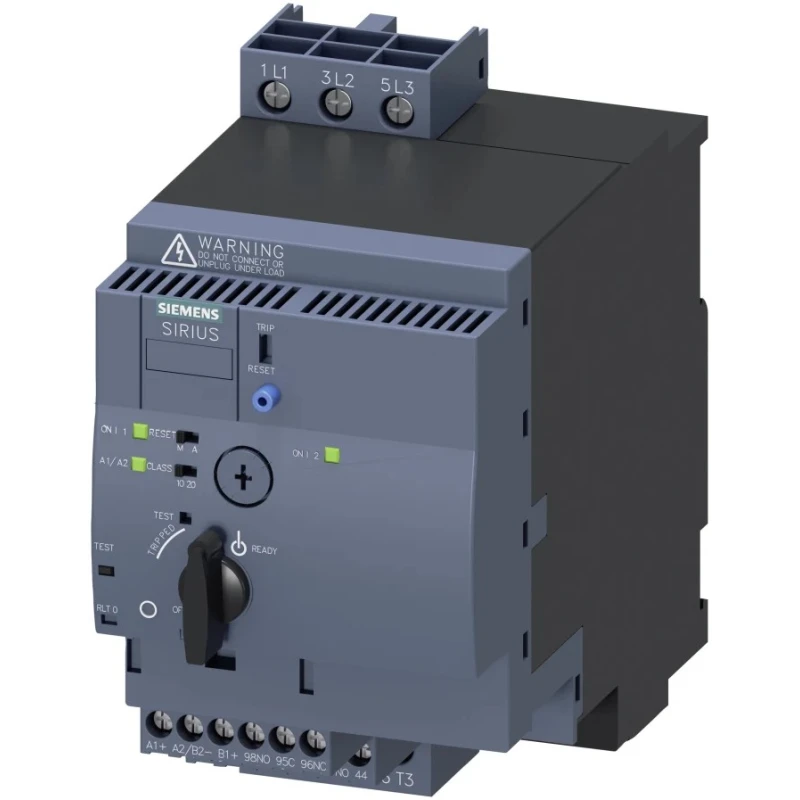

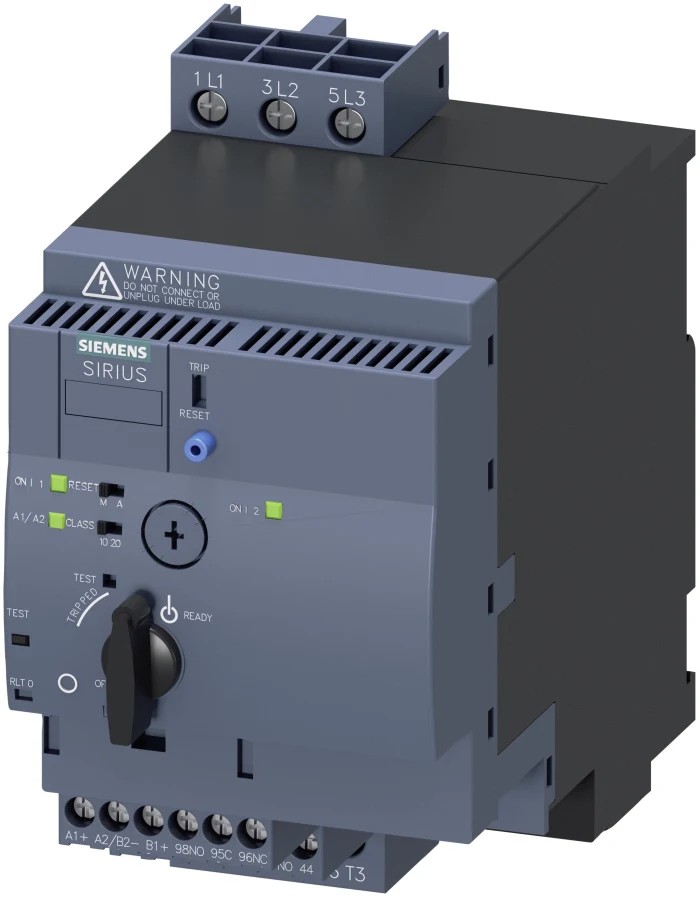

Siemens Advanced Motor Starter Reversing Starter 15 kW 3 Phase 400V IP20 3RA6250-1EP32

Siemens 3RA6250-1EP32 is an advanced motor starter designed as a reversing starter for three-phase motors. It is rated for 15 kW power at 400 V with an IP20 enclosure rating, ensuring protection against solid objects above 12 mm and providing suitability for industrial environments.

This SIRIUS 3RA62 series compact reversing starter integrates essential motor control functions including a circuit breaker, contactor, and solid-state overload relay, offering a unified and reliable motor starting solution. The device supports automatic reset in the event of overload conditions and distinguishes intelligently between overload and short-circuit situations, enhancing motor protection and operational safety.

The starter is compatible with a wide range of auxiliary devices such as auxiliary switches and surge suppressors, which may be mounted optionally to further tailor protection and control functionalities. Installation flexibility is achieved through its screw and snap-on mounting design, allowing ease of integration into control panels.

For power distribution, the device is designed to be used with the SIRIUS infeed system that facilitates direct connection of motor feeder cables up to 70 mm² cross-section via an integrated PE bar. Its compact size with 170 mm length, 90 mm width, and 165 mm depth makes it suitable for space-restricted control environments.

This product conforms to multiple international standards including RCM, UKCA, UL, CCC, CE, CSA, and EAC, reflecting its quality and reliability for use in demanding electrical and automation applications. It is manufactured in Germany, ensuring adherence to high engineering standards.

The product integrates a circuit breaker, contactor, and solid-state overload relay for motor protection. Features automatic device reset with differentiated overload and short-circuit protection. Designed for efficient power distribution with SIRIUS infeed system compatibility.

Supports direct motor feeder cable connection through an integrated PE bar for ease of installation. Compatible with auxiliary switches and surge suppressors as optional accessories. Constructed with screw and snap-on mounting type for flexible installation.

Rated current is 32A with a 3-pole design for comprehensive motor control. Dimensionally compact with overall length 170mm, width 90mm, and depth 165mm. Meets various international standards including RCM, UKCA, UL, CCC, CE, CSA, and EAC approvals.

This advanced motor starter is ideal for industrial automation, manufacturing systems, HVAC motors, and other commercial motor control applications. Explore EnvMart’s comprehensive range of Siemens Motor Starters and elevate your motor control solutions with high reliability and cutting-edge technology.
