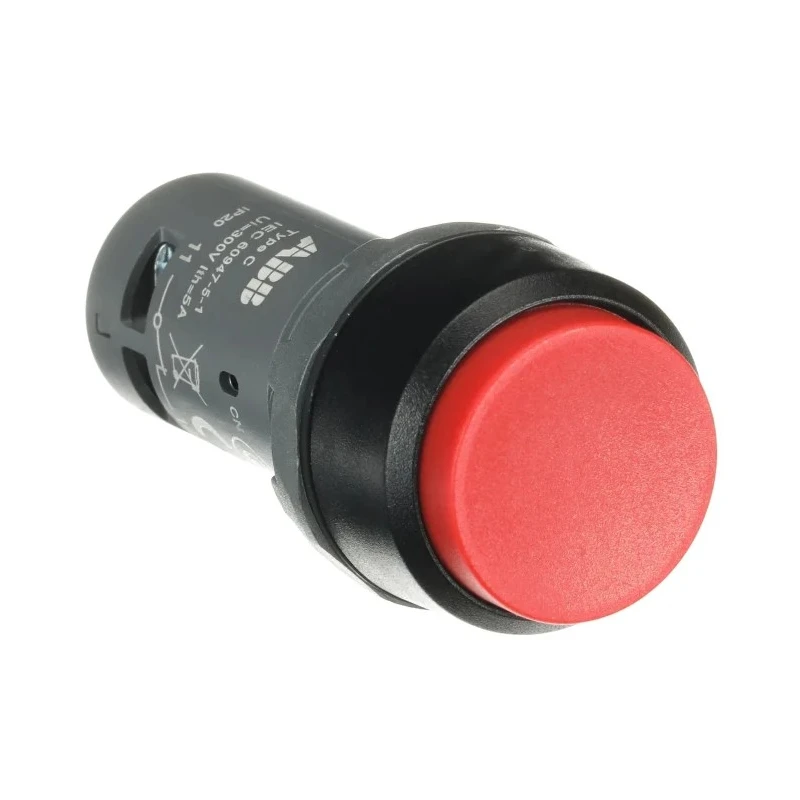

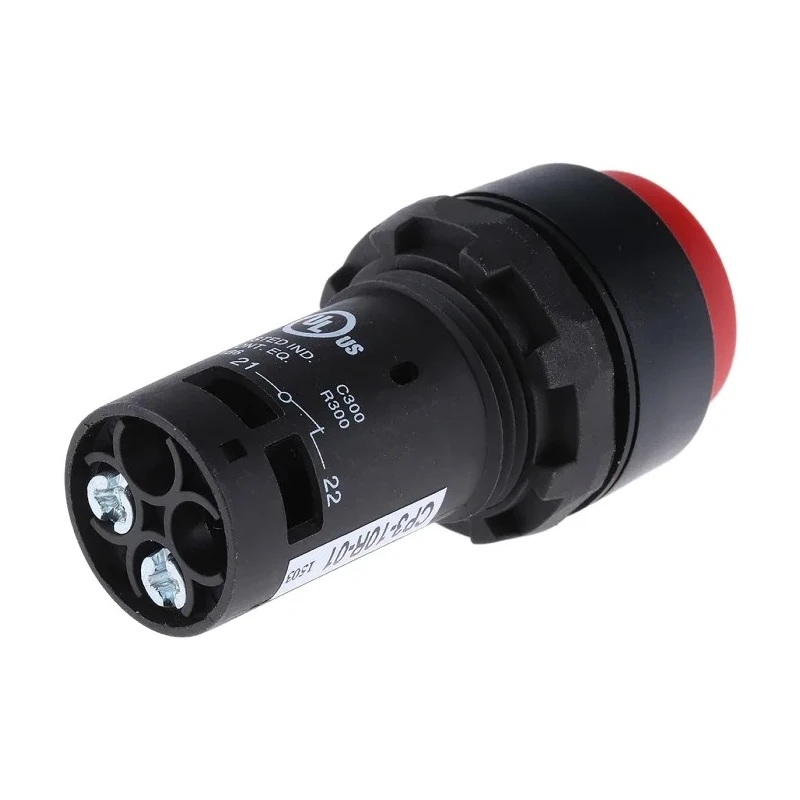

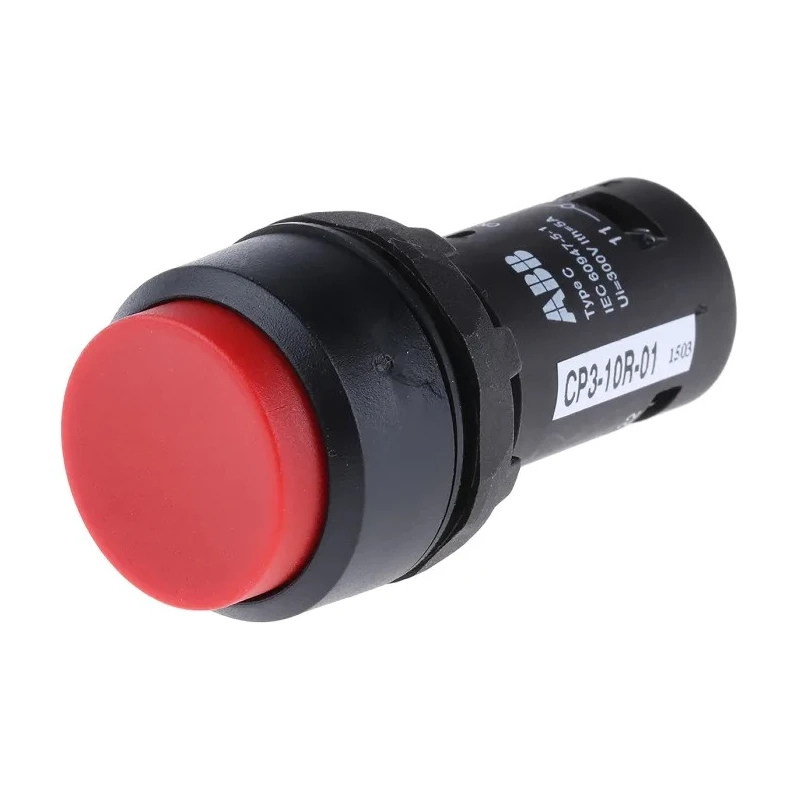

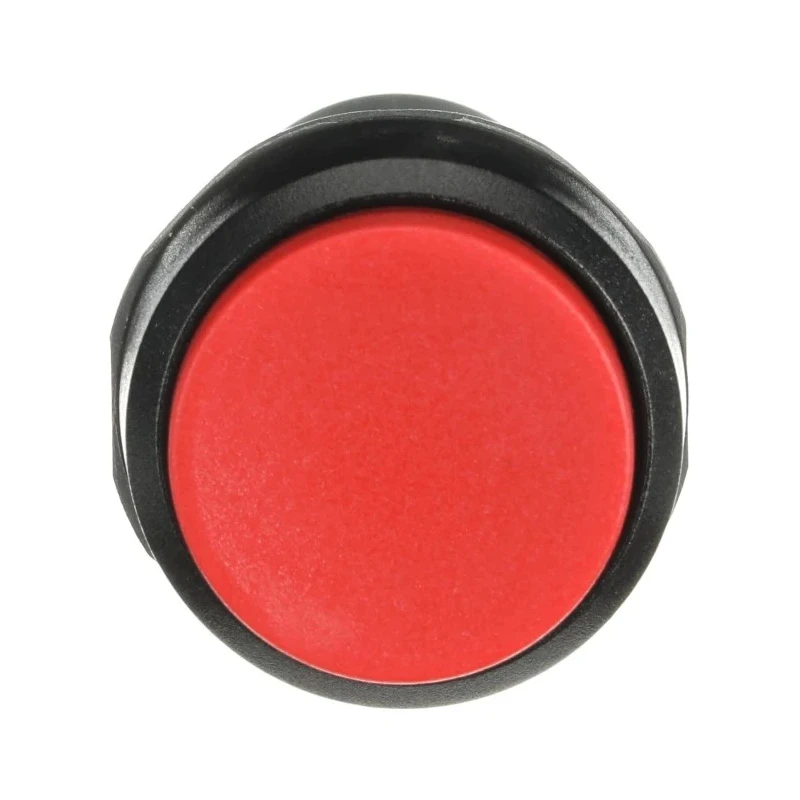

ABB Compact Series Push Button Switch Momentary Panel Mount 22 mm Cutout SPST IP69K 250V 2A 1SFA619102R1041 CP3-10R-01
Specifications
| Country of Origin | China |
|---|---|
| Brand | ABB |
| Height | 30mm |
| Length | 55mm |
| Model | 1SFA619102R1041 CP3-10R-01 |
| IP Rating | IP69K |
| Width | 30mm |
| Mount Type | Panel |
| Series | Compact |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 22 mm |
| Terminal type | Screw |
| Standards/Approvals | IEC 947-5-5EN 60204 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 479-3813Brand: ABBManufacturers Part No.: 1SFA619102R1041 CP3-10R-01 |
| Switch Operation | Momentary |
| Actuator Colour | Red |
| Contact DC Voltage | 250V |
| Actuator Style | Round |
| Switch Contact Current | 2A |
| Contact AC Voltage | 240V |
Key Features
- The switch features a round red actuator for clear visual identification.
- It supports momentary operation for temporary activation in control applications.
- Screw terminals provide reliable and secure electrical connections.
- Designed with high ingress protection IP69K for harsh environments.
- Operates reliably between -25°C and 70°C temperature range.
- Compact dimensions of 30mm height, 30mm width, and 55mm length fit space-constrained panels.
- Meets IEC 947-5-5 and EN 60204 standards for safety and quality.
- Suitable for industrial automation, control panels, and outdoor control stations requiring waterproof switches.
Product Description
ABB 1SFA619102R1041 CP3-10R-01 Compact Series Push Button Switch is a high-quality momentary switch designed for panel mounting in industrial electrical assemblies and automation systems. Rated for 250 V AC and 2A switching current, this switch provides reliable control in harsh operating environments.
The device features a clearly visible round red actuator enabling intuitive operation and quick identification in control panels. It employs screw terminals to ensure secure and low-resistance electrical connections, supporting stable performance under mechanical and electrical stress.
Its robust design offers a high ingress protection rating of IP69K, making it suitable for outdoor and heavy-duty applications exposed to moisture and dust. The operating temperature range from -25°C to 70°C allows consistent functionality across variable environmental conditions.
The switch dimensions of 30 mm height, 30 mm width, and 55 mm length provide a compact footprint ideal for installations with limited space. It complies with IEC 947-5-5 and EN 60204 standards, ensuring conformity to international electrical safety and performance requirements.
Common industrial uses include operator controls on assembly line machinery, emergency-stop style inputs within control cabinets, DC control circuits requiring compact panel-mounted switches, manual resets in motor controllers, and rugged outdoor control stations.
The switch features a round red actuator for clear visual identification. Supports momentary operation for temporary control inputs. Screw terminal connections provide secure wiring retention. High IP69K ingress protection suited for harsh environments.
Wide operating temperature range between -25°C and 70°C. Compact size fits space-constrained control panels. Compliant with IEC 947-5-5 and EN 60204 standards. Designed for industrial automation and electrical control applications.
This product is made in China and is supplied new. For more control switch options and industrial automation components, explore EnvMart’s comprehensive selection.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 70°C.
This switch has an ingress protection rating of IP69K, making it suitable for harsh environments.
The dimensions of this model are 30 mm in height, 30 mm in width, and 55 mm in length.
It features screw terminal connections for secure wiring retention.
The contact configuration of this switch is SPST (Single Pole Single Throw).
This model supports a contact voltage of 250V and a contact current of 2A.
The minimum operating temperature for this switch is -25°C.
It complies with IEC 947-5-5 and EN 60204 standards for safety and quality.
The actuator style is round and the color is red, allowing for clear visual identification.
This model supports momentary operation for temporary activation in control applications.
It is commonly used in industrial automation, control panels, and outdoor control stations requiring waterproof switches.
The required panel cutout size for this switch is 22 mm.
