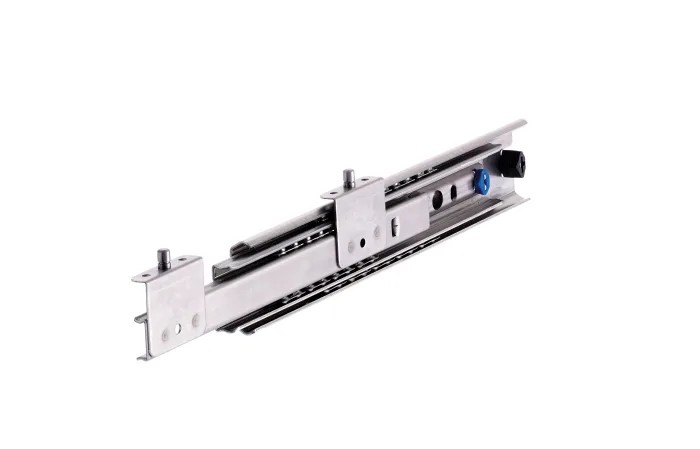

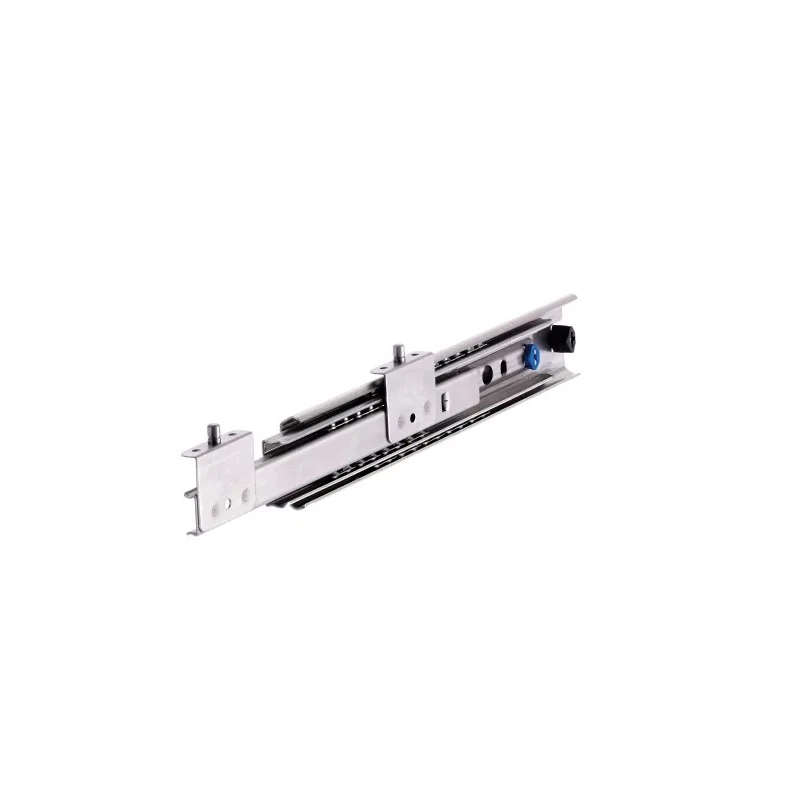

Accuride Stainless Steel Telescopic Slide Rack Rail 442 mm Depth 100kg Max Load DS5322-0040-2
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Accuride |
| Material | Stainless Steel |

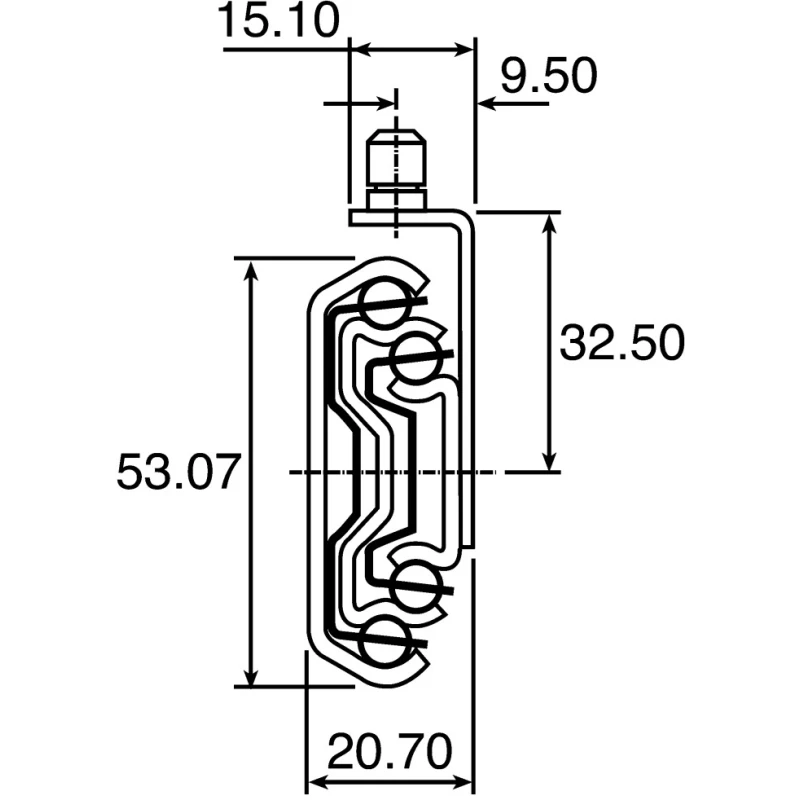

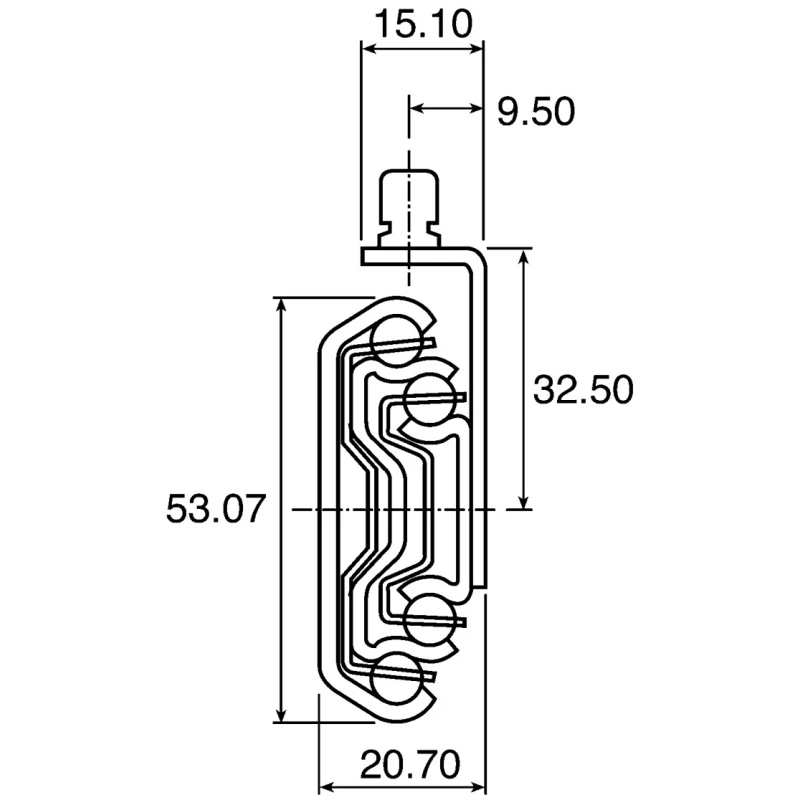

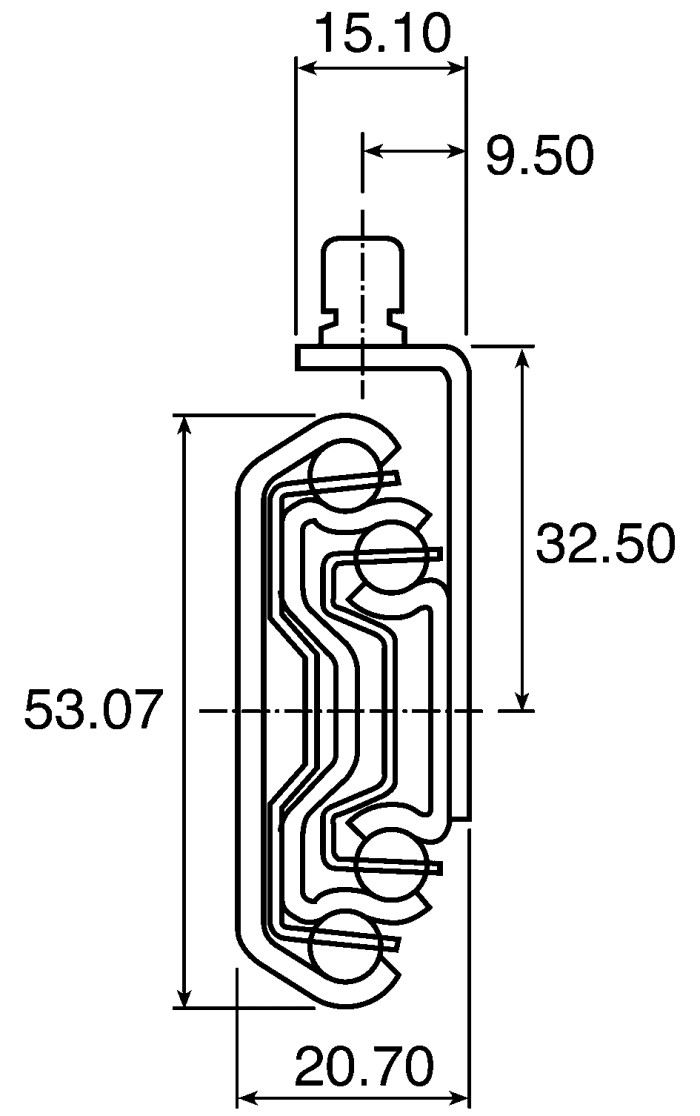

| Dimensions | W 20.7mm, H 69mm |
| Height | 53.1mm |
| Model | DS5322-0040-2 |
| Depth | 442mm |
| Width | 20.7mm |
| Series | DS5322 |
| Maximum Load | 100kg |
| Sub Type | Telescopic Slide |
| Closed Slide Length | 400mm |
| Recommended screws | M4 cheese head DIN 85 |
| Accuride Telescopic Slide, 592 mm Depth, 110kg Max LoadBrand | Accuride |
Key Features
- Constructed with high-grade stainless steel for durability and corrosion resistance.
- Features 100kg load rating suitable for heavy-duty rack applications.
- Hold-in detent mechanism included for secure positioning.
- Closed slide length of 400 mm enables smooth extension and retraction.
- Recommended use of M4 cheese head DIN 85 screws for installation.
- Optimized rail for server racks and enclosure mounting in industrial and electrical applications.
Product Description
Accuride DS5322-0040-2 Stainless Steel Telescopic Slide Rack Rail offers robust support for rack enclosures requiring a maximum load capacity of 100kg and a slide depth of 442 mm. This rack rail is engineered to deliver precise and reliable movement in electrical enclosures and server racks.
Made from high-grade stainless steel (1.4301x5GN, 1810), the slide rail ensures superior durability and resistance against wear and corrosion, making it ideal for demanding industrial environments including electrical, automation, and data center applications.
The model DS5322-0040-2 features a hold-in detent mechanism for secure slide retention and lift-off disconnection enabling easy removal and maintenance. Its closed slide length of 400 mm supports full extension movement while maintaining stability.
Dimensions stand at 442 mm depth, 20.7 mm width, and 53.1 mm height, with additional dimensional reference of width 20.7 mm and height 69 mm, allowing precise fitting in standard rack configurations. Installation is recommended using M4 cheese head DIN 85 screws for optimal mounting.
Manufactured in Germany, this telescopic slide rail meets high-quality standards and provides reliable operation in applications like server racks, enclosures, industrial machinery or automation equipment.
Constructed with high-grade stainless steel for corrosion resistance. Supports maximum load up to 100kg for heavy-duty rack use. 442 mm depth suitable for standard rack mounting. Hold-in detent secures slide positions during operation.
Closed slide length is 400 mm enabling smooth action. Lift-off disconnection facilitates easy serviceability. Recommended M4 cheese head DIN 85 screws for installation. Manufactured in Germany to ensure superior quality standards.
Designed for electrical, server rack, and industrial applications. Explore comprehensive solutions for electrical enclosures and Rack Rails at EnvMart for industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a maximum load capacity of 100kg, making it suitable for heavy-duty rack applications.
The dimensions of the rack rail are 442 mm in depth, 20.7 mm in width, and 53.1 mm in height.
The closed slide length of the DS5322-0040-2 is 400 mm, allowing for smooth extension and retraction.
It is constructed from high-grade stainless steel, which provides durability and corrosion resistance.
Installation is recommended using M4 cheese head DIN 85 screws for optimal mounting.
This telescopic slide rack rail is manufactured in Germany, ensuring high-quality standards.
It is designed for use in electrical enclosures, server racks, and industrial applications.
Yes, it features a hold-in detent mechanism that secures slide positions during operation.
The series designation for this model is DS5322.
The slide rail has a width of 20.7 mm and a height of 69 mm.
The lift-off disconnection feature allows for easy removal and maintenance of the slide rail.
The depth of the rack rail is 442 mm, which is suitable for standard rack mounting.
