RS PRO Thermocouple Panel Mount Socket Connector for Type N Thermocouple, IEC, RoHS Compliant 455-9815

RS PRO 455-9815 is a miniature thermocouple panel mounting socket connector specifically engineered for use with Type N thermocouples, compliant with IEC standards and RoHS regulations. This connector provides a reliable and accurate means of interconnecting temperature sensing components in various industrial settings.

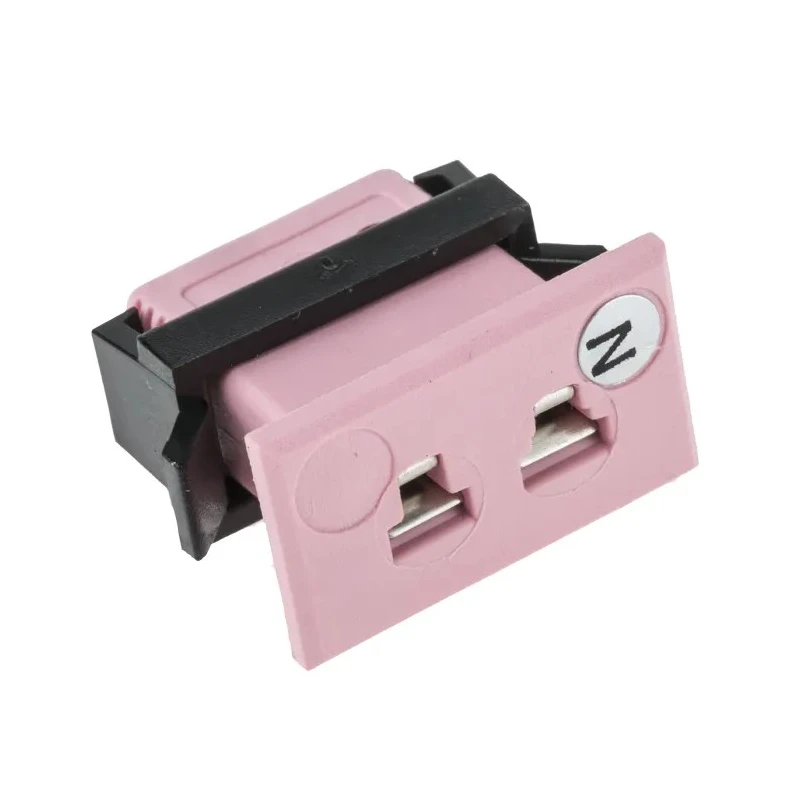

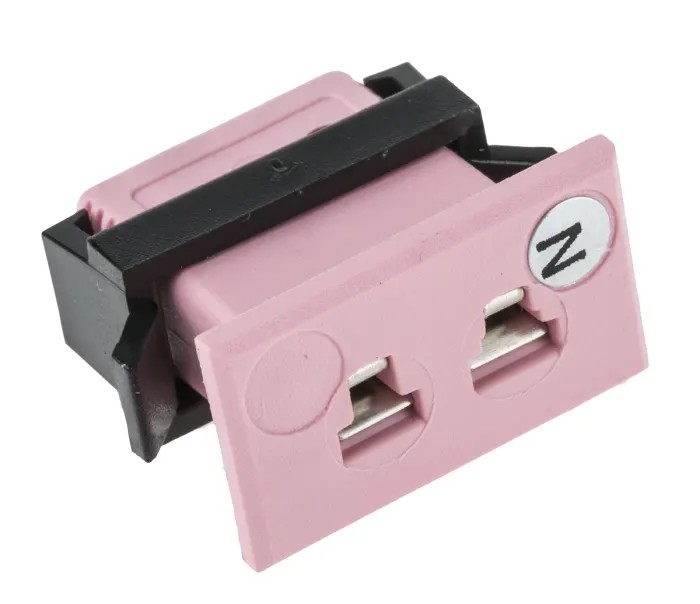

Manufactured from robust glass-filled thermoplastic, the housing is color-coded in accordance with IEC specifications to facilitate quick thermocouple type identification. The design includes a moulded fascia ensuring a flush and neat fit when mounted through instrumentation or control panels.

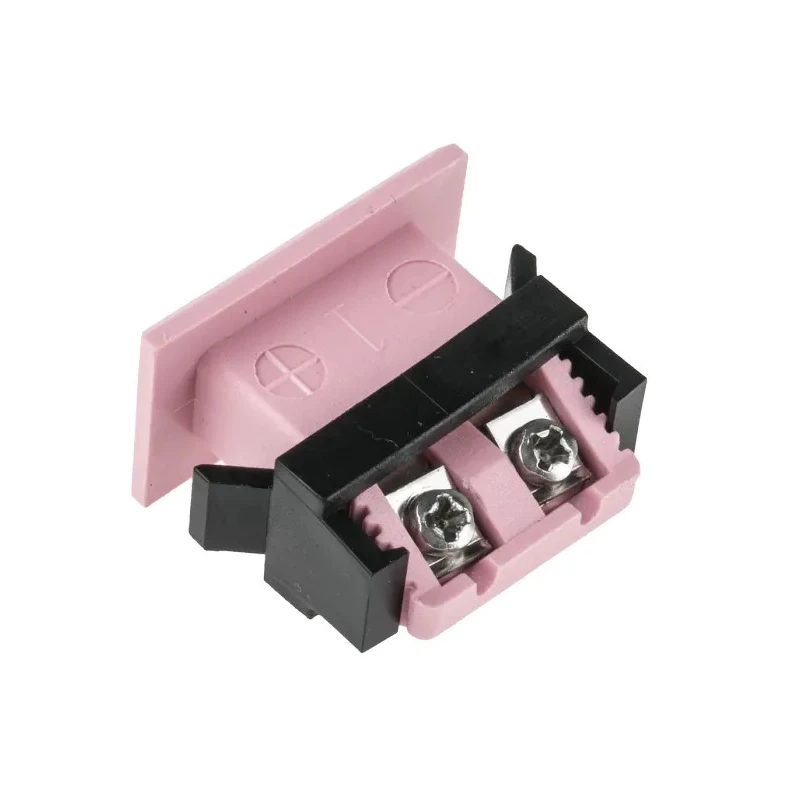

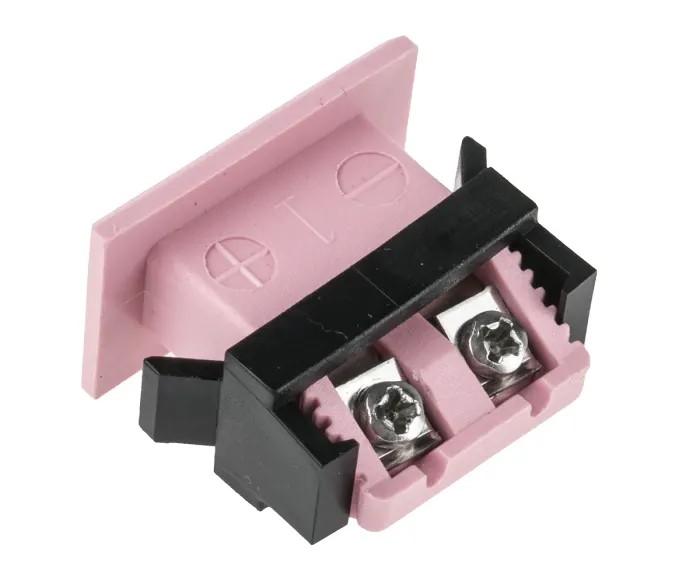

The connector's contacts use true thermocouple alloys or compensating materials matching the thermocouple to maintain signal integrity without alterations or distortions. Their flat pin design is polarized for guaranteed correct and secure mating, reducing connection errors in critical measurement applications. The connector further features captive screw clamps to simplify wiring, enabling efficient and secure assembly.

Designed to endure operating temperatures of up to 120°C, this panel mounting socket is suitable for demanding industrial and laboratory applications where temperature monitoring and control are vital. The included mounting clip allows for quick installation and firm attachment to panel backs, enhancing durability and maintenance convenience.

Typical applications include sensor extension, replacement, or installation in instrumentation setups, HVAC systems, manufacturing lines, and other sectors requiring precise thermocouple connections. Compatible aluminum faceplates in multiple configurations are available separately to enhance system integration.

Colour-coded miniature thermocouple panel mounting socket for easy identification. Constructed from rugged, glass-filled thermoplastic for durability. Houses contacts made of true thermocouple alloys for accurate signal transmission.

Moulded fascia enables flush fit when mounting through panels. Accepts polarized flat pin contacts ensuring precise connection. Equipped with captive screw clamps for secure and quick wire attachment. Withstands operating temperatures up to 120°C.

Supplied with a clip for reliable and fast mounting behind panels. Explore our extensive RS PRO range in Thermocouple Connectors to meet your industrial and laboratory sensing needs.
