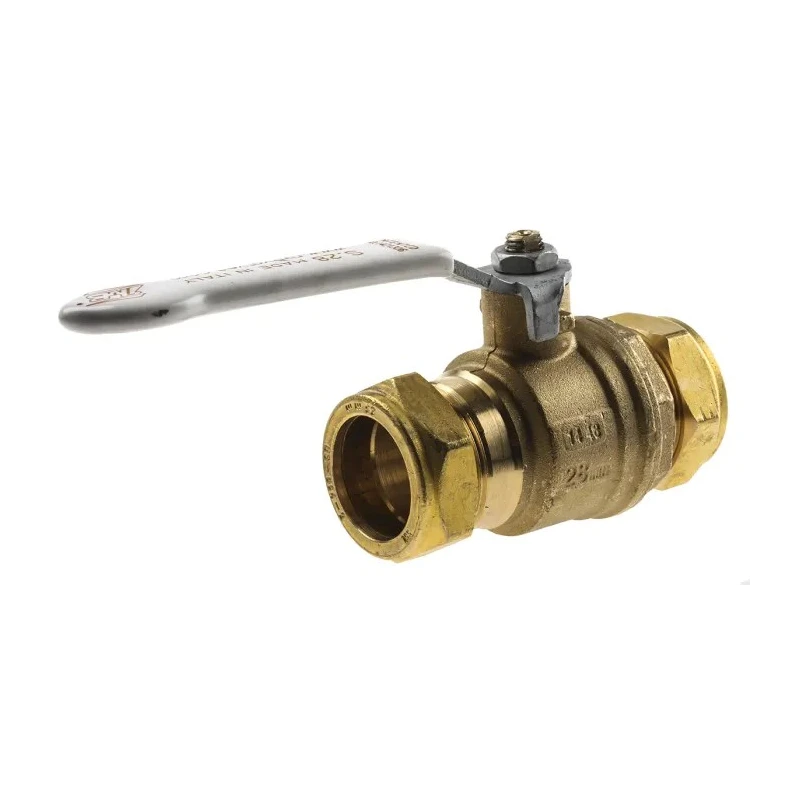

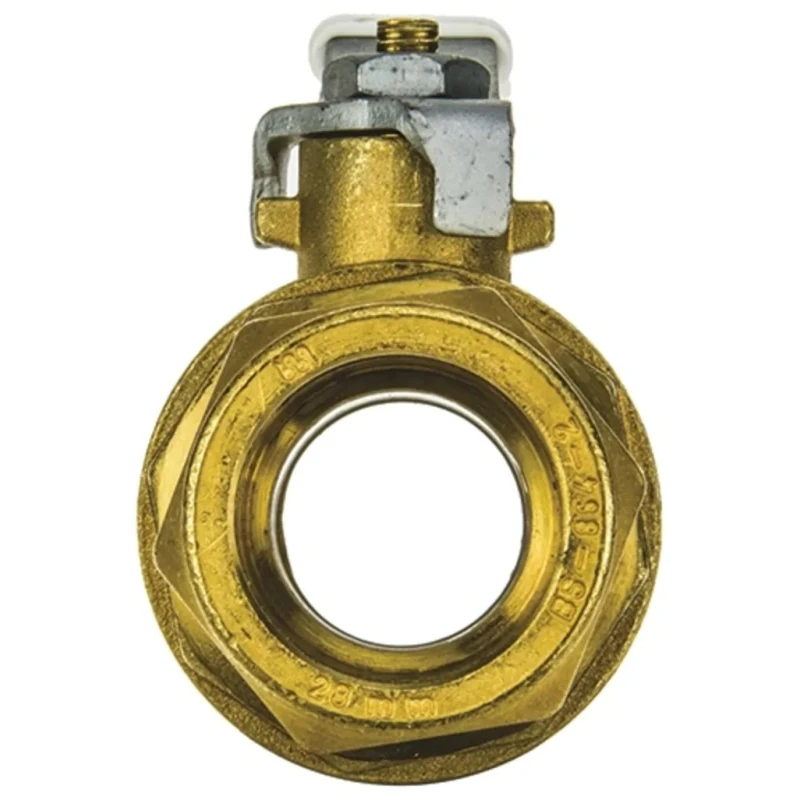

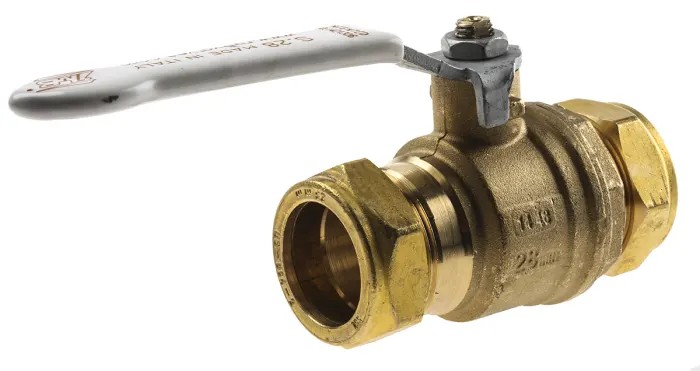

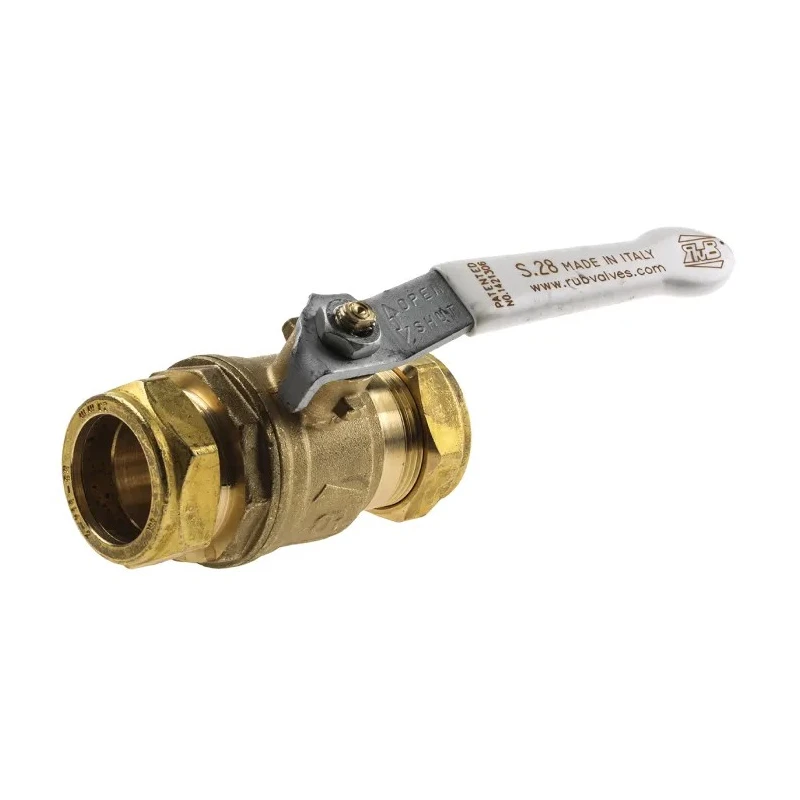

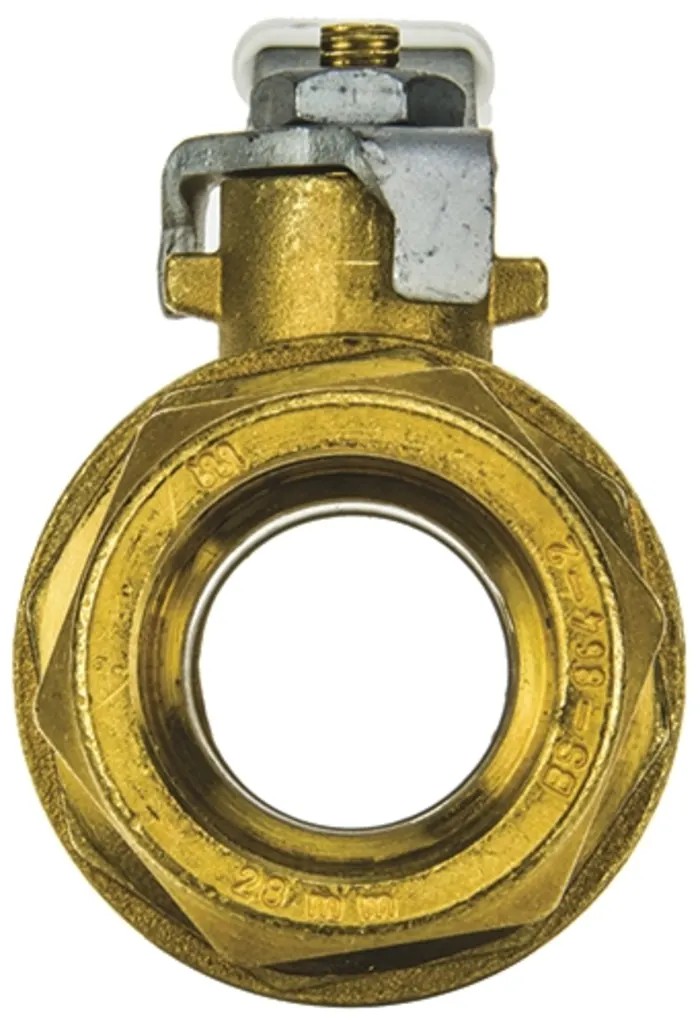

RS PRO Brass Compression Full Port Ball Valve 16 Bar Operating Pressure 12-54 mm Inlet 28 mm Outlet 486-344
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | RS PRO |
| Working Pressure | 16 Bar (230 PSI) |
| Body Material | Brass |
| Operating Temperature | -20°C (-4°F)/+120°C (+250°F) |
| Maximum Operating Pressure | 16 bar |
| Outlet Connection Type | Compression |
| Model | 486-344 |
| Handle Material | Polyvinyl Chloride Coated Steel |
| Valve Type | Full Port |
| Series | RS PRO |
| Inlet Port Size | 12-54 mm |
| Outlet Port Size | 28 mm |
| RS PRO Nickel Plated Brass, Manual Ball Valve 28mm, 28mmBrand | RS PRO |
Key Features
- Constructed from dezincification-resistant brass for enhanced corrosion resistance.
- Features a chrome plated ball with no metal-to-metal moving parts ensuring long service life.
- Compression fitting connections suitable for inlet port sizes from 12 to 54 mm and a 28 mm outlet port.
- Manual quarter-turn operation with a PVC-coated steel handle that clearly indicates flow direction.
- Designed for reliability in water, air, steam, chemical, and petrochemical applications.
- Operating temperature range from -20°C to +120°C supporting diverse industrial environments.
- Travel stops reduce stress on the stem during operation for increased durability.
- Dual sealing system allows valve operation in both directions enhancing installation flexibility.
Product Description
RS PRO 486-344 is a brass compression full port ball valve designed for industrial, HVAC, plumbing, and fluid control applications. This valve features a robust dezincification-resistant brass body and a chrome plated ball that do not require maintenance due to the absence of metal-to-metal moving parts. Its full port design ensures minimal flow resistance while handling pressures up to 16 bar.
The valve is manually operated via a quarter-turn lever coated in polyvinyl chloride for enhanced grip and corrosion resistance. The handle includes clear directional arrows to indicate ball and flow position during operation. Compression connections accommodate inlet port sizes ranging between 12 and 54 mm with a fixed 28 mm outlet port size, making it versatile for multiple pipeline configurations.
Designed especially to resist dezincification in harsh water conditions and high acidity/alkalinity, this ball valve is suitable for applications involving air, gases, water, steam, chemicals, and petrochemical products. The operating temperature range of -20°C to +120°C allows use in diverse environments including domestic water systems, heating, air-conditioning plants, and compressed air systems.
The valve includes travel stops preventing stress on the stem and a dual sealing system permitting flexible installation with operation possible in either direction. RS PRO's manufacturing quality ensures reliability and durability without the need for maintenance over the valve's lifecycle.
This ball valve is produced in Italy, reflecting high manufacturing standards. It is ideal for fluid power control in industrial and commercial pipeline systems. Constructed from dezincification resistant brass for corrosion resistance.
Chrome plated ball provides smooth operation and long service life. Compression connections enable easy installation and strong sealing. 16 bar maximum operating pressure suitable for multiple applications. Manual quarter-turn lever with clear directional indication.
Operating temperature range from -20°C to +120°C. Dual sealing system allows valve operation in either direction. Travel stops reduce stress on valve stem during operation. Used in water services, HVAC, compressed air, and petrochemical systems.
Manufactured in Italy with strict quality control. Explore more Ball Valves and industrial fluid control products at EnvMart for your precise application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this ball valve is 16 bar (230 PSI).
This model accommodates inlet port sizes ranging from 12 mm to 54 mm.
The outlet port size of this valve is fixed at 28 mm.
The valve is constructed from dezincification-resistant brass and features a chrome plated ball.
The operating temperature range for this valve is from -20°C to +120°C.
The valve is manually operated using a quarter-turn lever that is coated in polyvinyl chloride for enhanced grip and corrosion resistance.
Yes, it includes travel stops to reduce stress on the stem during operation and a dual sealing system that allows operation in both directions.
This valve is suitable for applications involving water, air, steam, chemicals, and petrochemical products.
This is a full port ball valve, designed to ensure minimal flow resistance.
This valve is manufactured in Italy, reflecting high manufacturing standards.
The valve features compression connections for both the inlet and outlet ports.
The handle is made from polyvinyl chloride coated steel, providing enhanced grip and corrosion resistance.
