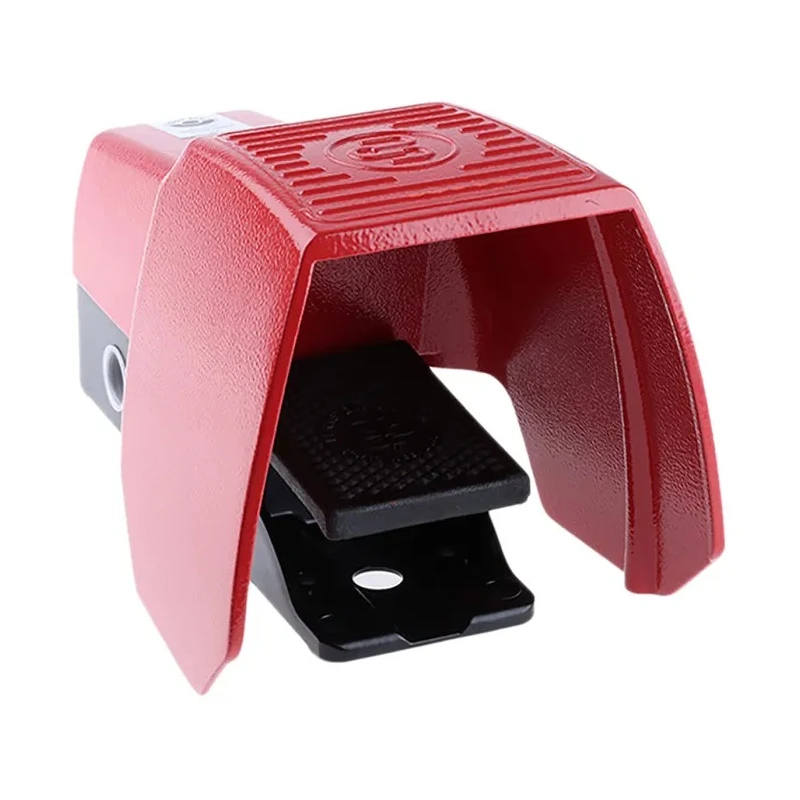

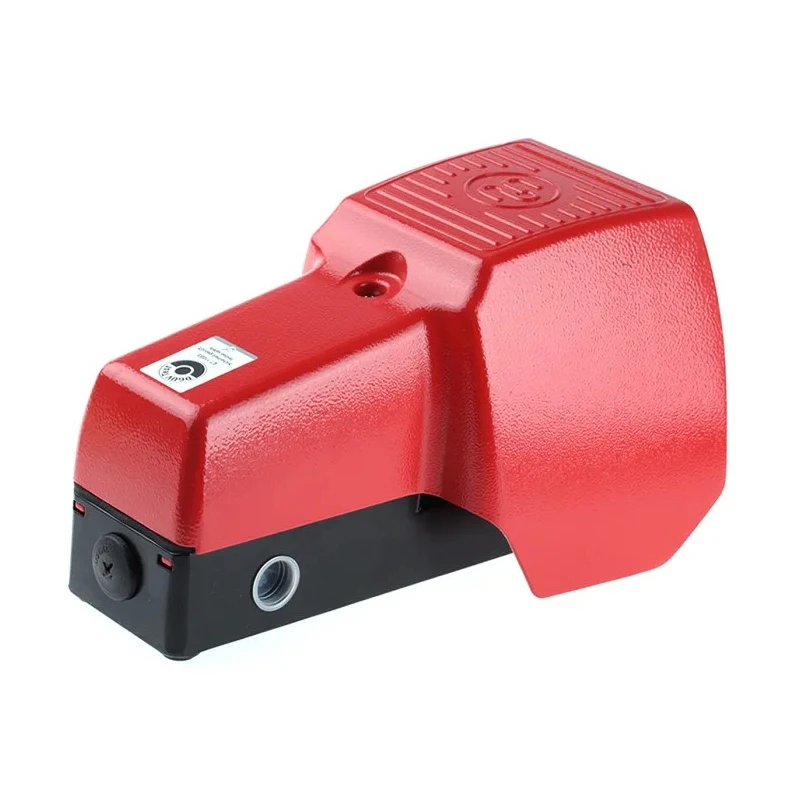

Bernstein AG Momentary Foot Switch 2 NO/2 NC Aluminium 10 A Contact Current 400 V ac 6061700004

Bernstein AG 6061700004 Momentary Foot Switch features a 2 normally open and 2 normally closed contact configuration with a momentary operation style. Its aluminium housing is robust and finished in red colour, designed for industrial environments requiring high reliability and safety.

The foot switch is rated for 10 A contact current with an AC voltage tolerance of up to 400 V and DC voltage of up to 240 V. It is IP65 rated, ensuring resistance against dust ingress and water jets, making it suitable for harsh industrial conditions.

Equipped with 8 M3.5 screw terminals and cable entry size 1 x M20 x 1.5, it facilitates secure electrical connections. The foot pedal is crafted from thermoplastic with an aluminium safety cover to prevent accidental activation, enhancing operator safety. It also includes a safety stay-put manual locking release and a latching foot pedal feature.

This momentary foot switch boasts a mechanical life expectancy of 1,000,000 operations, ideal for continuous and demanding applications. The device is widely used in automation machinery such as coil winding machines, conveyor belts, sewing machines, imprinting equipment, CNC machines, and photo lab equipment.

It holds certifications including CCC, CSA, DGUV, UL, BG, and meets international standards DIN EN 60947-1, IEC 60947-1, DIN EN 60947-5-1, and IEC 60947-5-1, affirming its compliance with safety and quality regulations.

The Foot Switch features a robust aluminium housing with red colour for easy identification. It operates with a momentary action and includes a safety stay-put manual locking release. Contact current rating is 10 A at AC voltage up to 400 V and DC voltage up to 240 V.

Complies with IP65 rating ensuring protection against dust and water jets. Equipped with 8 screw (M3.5) connections and cable entry of 1 x M20 x 1.5. Durable mechanical life of 1,000,000 operations for long-term performance.

Foot pedal is thermoplastic with an AL safety cover for accident prevention. Ideal for use in coil winding machines, sewing machines, conveyor belts, CNC machines, and photo lab equipment. Certified with CCC, CSA, DGUV, UL, BG, and complies with DIN EN 60947 and IEC 60947 standards.
