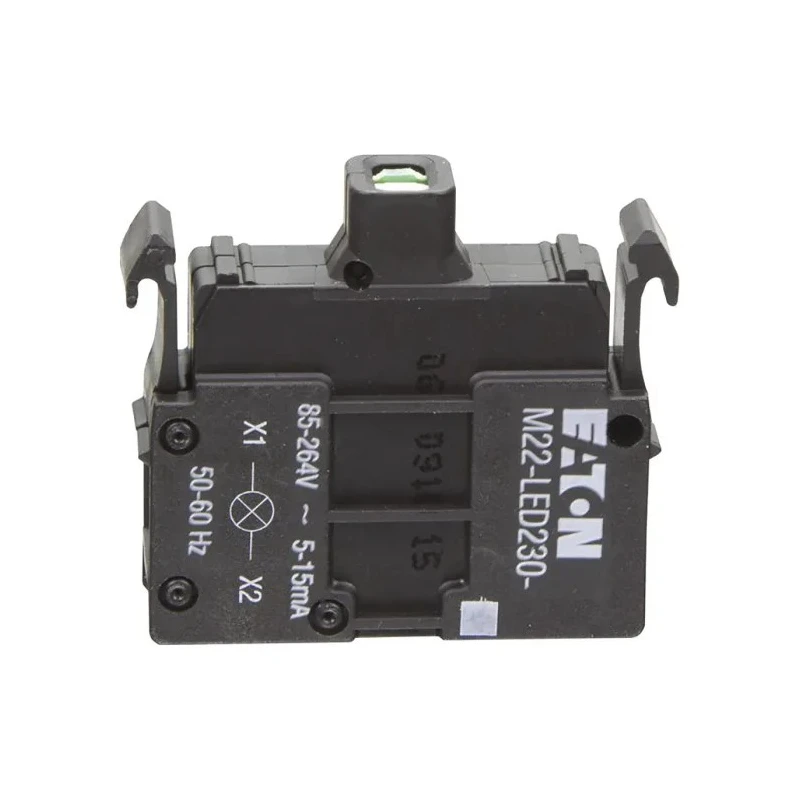

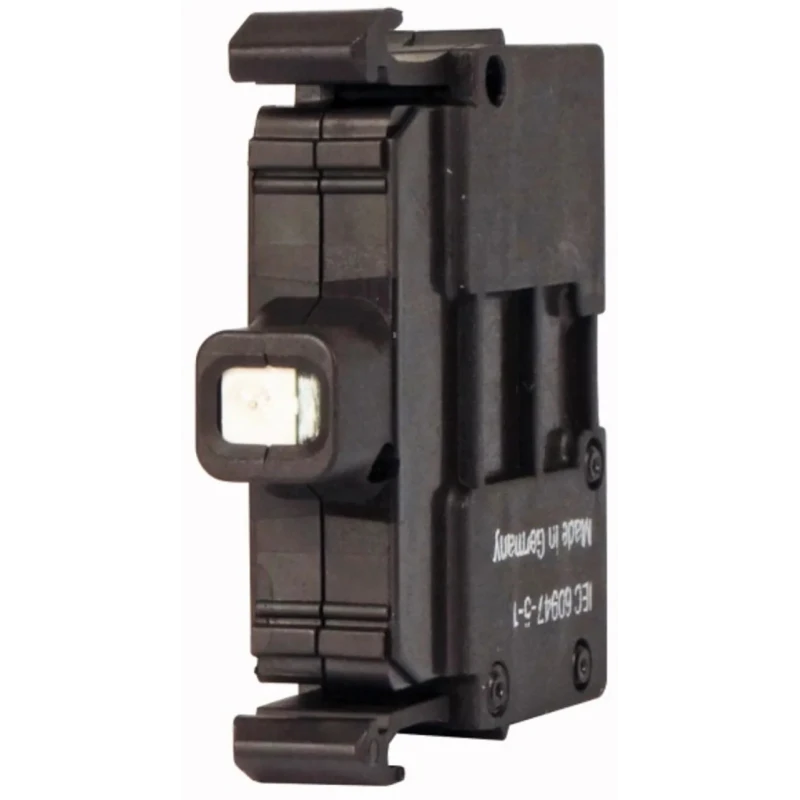

Eaton M22 Series LED Light Block, Green Illumination, 264V AC, Screw Terminal, 15mA Current Rating 216565 M22-LED230-G
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 264V ac |
| Brand | Eaton |
| Height | 37.2mm |
| Length | 71mm |
| Model | 216565 M22-LED230-G |
| Width | 30mm |
| Current Rating | 15mA |
| Series | M22 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Illumination type | LED |
| Block Type | Light Block |
| Illumination Colour | Green |
| Eaton M22 Series, 85 → 264V ac, Green LightBrand | Eaton |
| Eaton Green Pilot Light Head, 22.5 mm Cutout RMQ Titan M22 SeriesBrand | Eaton |
| Eaton RMQ Titan M22 Series Light Block, 30 V ac, 30V dc, Green LightBrand | Eaton |
Key Features
- This LED block features a bright green LED for clear status indication.
- Operates at a current rating of 15mA supporting efficient power usage.
- Equipped with screw terminals for secure and easy wiring.
- Designed for industrial environments with an operating temperature range of -25°C to 70°C.
- M22 series light block manufactured with impact-resistant materials for durability.
- Supports a rated insulation voltage of 500V ensuring safe operation.
- Compliant with multiple standards including IEC 60947-5-1 and UL 508 for quality assurance.
- IP20 rated touch-proof design enhances operator safety during handling.
Product Description
Eaton 216565 M22-LED230-G is a high-quality LED Light Block designed to provide clear green illumination for push button indicators. Operating at 264V AC with a 15mA current rating, this LED block is suitable for applications demanding reliable visual status signals.
The device features a screw terminal connection system with cage clamp technology, ensuring secure and efficient wiring while saving installation time. The light block's modular design is intended to save space on control panels, making it versatile for various industrial setups.
Engineered to operate within a temperature range of -25°C to +70°C, this light block can withstand demanding environmental conditions including heat and humidity. Its IP20 rating ensures touch-proof safety, protecting operators from electrical contact hazards.
The compact size (71mm length, 37.2mm height, 30mm width) enables installation in tight spaces, while impact-resistant construction protects the device from accidental mechanical damage. It complies with internationally recognized standards such as CSA-C22.2 No. 14-05, IEC 60947-5-1, UL 508, and CE certification requirements.
Bright green LED illumination for easy status recognition. 15mA steady current rating supporting low power consumption. Screw terminal type with cage clamp technology for reliable wiring. Wide operating temperature and environmental tolerance suitable for industrial and medical use.
Compact form factor with impact-resistant body for durability. 500V rated insulation voltage ensuring safe electrical isolation. Multiple international standards approvals enhance compliance assurance. Modular design to minimize panel space usage.
IP20 touch-proof rating for operator safety. Extended lifespan of 100,000 cycles for long-term performance.
This Eaton LED Light Block is ideal for use in industrial automation, manufacturing control panels, medical equipment setups, and humid environments like industrial kitchens. It serves as a reliable visual indicator enhancing equipment safety and operation efficiency.
Explore more Eaton switch and indicator solutions in EnvMart's Push Button Contact Blocks & Light Blocks category.
Explore more products in our Push Button Contact Blocks & Light Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a voltage rating of 264V AC.
It has a current rating of 15mA, which supports efficient power usage.
The light block measures 71mm in length, 37.2mm in height, and 30mm in width.
It can operate within a temperature range of -25°C to 70°C.
This unit features screw terminals with cage clamp technology for secure wiring.
It provides bright green illumination for clear status indication.
Yes, it complies with IEC 60947-5-1 and UL 508 standards, among others.
It has a rated insulation voltage of 500V, ensuring safe operation.
This unit has an IP20 rating, which provides touch-proof safety during handling.
It is suitable for industrial automation, manufacturing control panels, and medical equipment setups.
The country of origin for this model is Germany.
It has an extended lifespan rated for 100,000 cycles, ensuring long-term performance.
