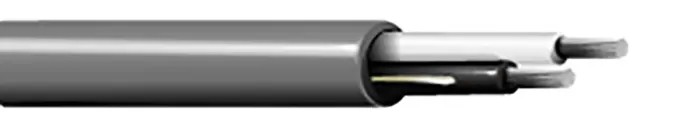

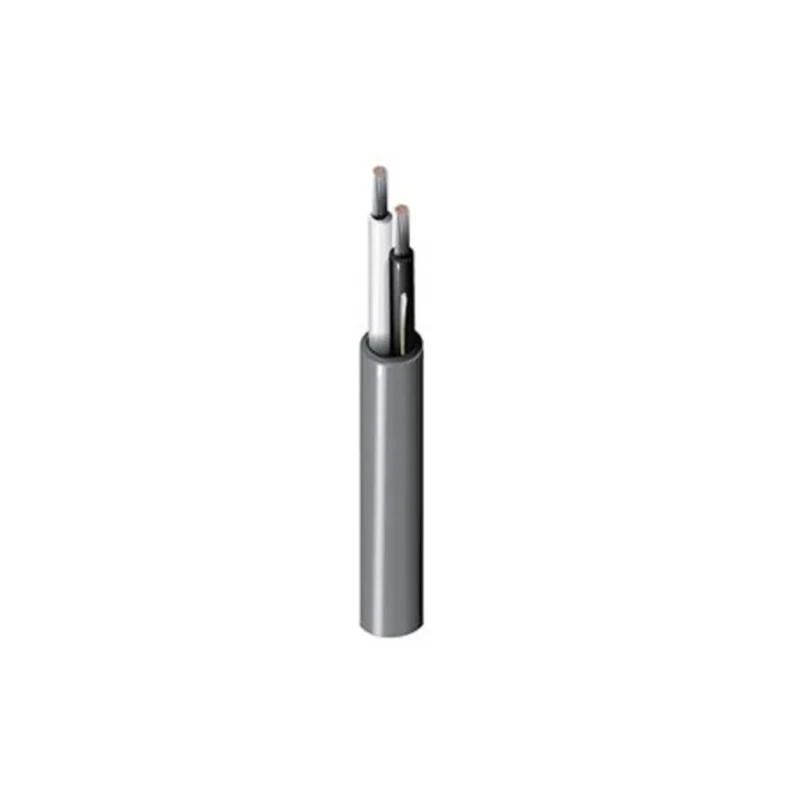

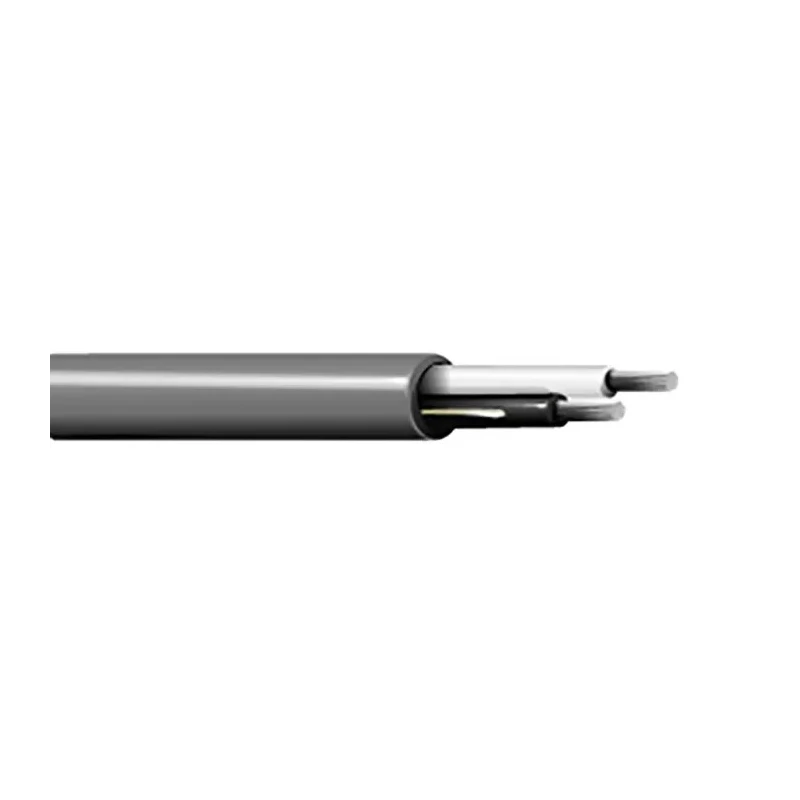

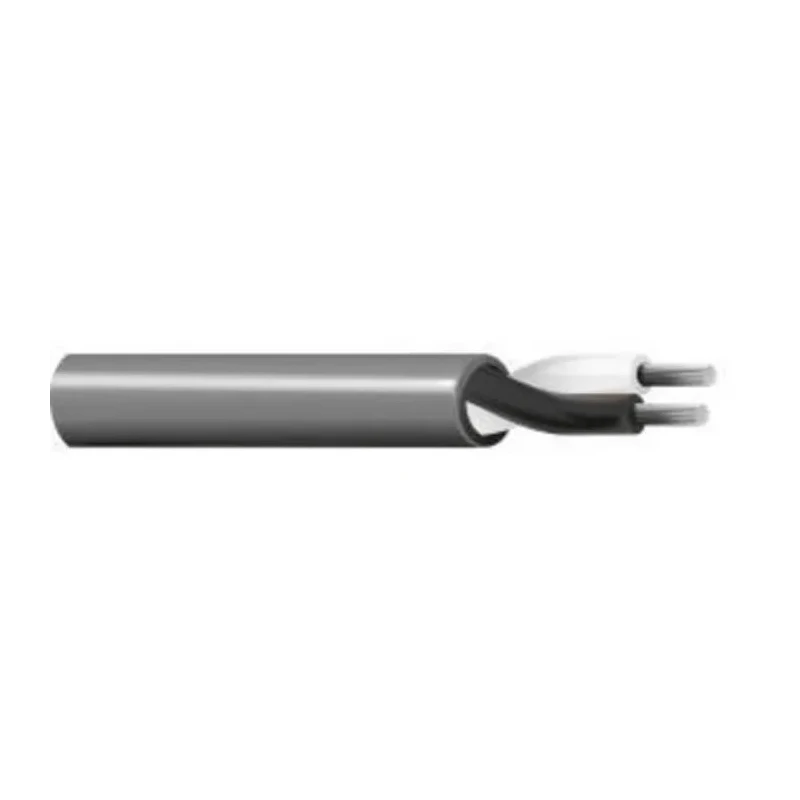

Belden 8471NH Series Data Cable 1 Pair 2 Cores 1.33 mm² Cross Section 304 m Length Silver Sheath Low Smoke Zero 8471NH.00305
Specifications
| Country of Origin | Netherlands |
|---|---|
| Voltage | 300V |
| Brand | Belden |
| CROSS SECTIONAL AREA | 1.33 mm² |
| Model | 8471NH.00305 |
| Cable Length | 304m |
| Series | 8471NH |
| Outside diameter | 7.15mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 2 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -20°C |
| Jacket Material | Low Smoke Zero Halogen |
| Standards/Approvals | Euroclass B2ca-s1 d1 a1 |
| Jacket Colour | Silver |
| Fire Behaviour | Flame Retardant, Low Smoke Zero Halogen (LSZH) |
| Conductor Type | Stranded |
| Number of Strands | 19 |
| Core Strands | 19 x 29AWG |
| Size of Strands | 29AWG |
| Number of Pairs | 1 |
| Belden 8471 Series 1 Unscreened, 152 m, SilverBrand | Belden |
Key Features
- The cable has a stranded tin copper conductor for excellent conductivity.
- It operates in a temperature range from -20°C to 80°C, suitable for demanding environments.
- The jacket material is low smoke zero halogen, and the cable is flame retardant improving workplace safety.
- It has an outside diameter of 7.15 mm and a core strand size of 29 AWG with 19 strands per conductor.
- This 300 V rated cable adheres to Euroclass B2ca-s1 d1 a1 fire standards.
- The silver-colored jacket provides UV stability for outdoor use without insulation degradation.
- It is ideal for sound system installations and low-voltage analogue signalling applications.
- The unshielded twisted pair construction offers flexibility and reliable signal transmission.
Product Description
Belden 8471NH.00305 is a high-quality data cable designed for effective signal transmission with 1 twisted pair consisting of 2 cores and a 1.33 mm² stranded tin copper conductor. With a length of 304 meters and a silver low smoke zero halogen (LSZH) jacket, this cable offers durability and safety in industrial and commercial settings.
The cable operates reliably within an ambient temperature range from -20°C to 80°C, making it suitable for demanding conditions. Its flame retardant and LSZH jacket comply with Euroclass B2ca-s1 d1 a1 standards, minimizing fire risks and smoke emission, enhancing workplace safety.
The conductor is stranded with 19 strands of 29 AWG size, ensuring high flexibility and conductivity. The 7.15 mm outside diameter and UV-stable silver sheath allow installation in both indoor and outdoor environments without loss of performance or insulation integrity.
This Belden cable is ideal for a variety of industrial, audio, and low-voltage analogue signalling applications such as sound system installations. Its unshielded twisted pair design balances flexibility with reliable transmission.
The cable features a stranded tin copper conductor for optimal signal quality. Operating temperature range is -20°C to 80°C for versatility in various environments. Constructed with a low smoke zero halogen jacket for enhanced safety.
Compliance with Euroclass B2ca-s1 d1 a1 ensures stringent fire resistance. The silver sheath provides UV stability and outdoor usability. Cable length of 304 meters facilitates multiple installations. Outside diameter of 7.15 mm balances flexibility and robustness.
The 2-core unshielded twisted pair configuration supports efficient data transmission.
For industrial, commercial, and audio applications, trust Belden's 8471NH.00305 cable for quality and safety. Explore more cables and wiring products in the Data Cable category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for the Belden 8471NH Series Data Cable is 80°C.
This model has a length of 304 meters.
It features a stranded tin copper conductor, which ensures excellent conductivity.
The outside diameter of this cable is 7.15 mm.
The cable complies with Euroclass B2ca-s1 d1 a1 fire standards, ensuring flame retardancy and low smoke emission.
The minimum operating temperature is -20°C, making it suitable for various environments.
This cable consists of 2 cores, arranged in a twisted pair configuration.
The cross-sectional area of the conductors is 1.33 mm².
It has a low smoke zero halogen (LSZH) jacket, which is flame retardant and enhances safety in installations.
Each conductor has 19 strands, with a size of 29 AWG.
Yes, the silver-colored jacket provides UV stability, allowing for outdoor installation without degradation of insulation.
It is ideal for sound system installations and low-voltage analogue signalling applications.
