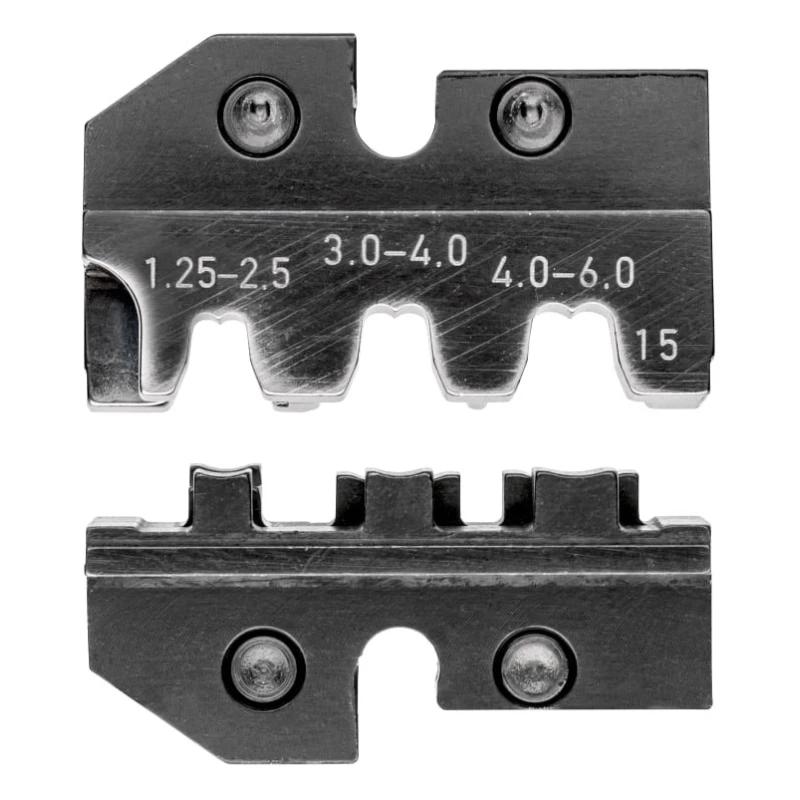

Knipex Crimp Die Set Coaxial Type, Insulated, 3 to 6/1.25 to 2.5 mm², Black, 2 Pieces 97 49 15

Knipex 97 49 15 Crimp Die Set Coaxial Type is a high-quality industrial hand tool designed for precise crimping of insulated coaxial and open plug connectors. The set consists of two black crimp dies engineered for crimping cable sizes ranging from 3 to 6 mm² and 1.25 to 2.5 mm², meeting DIN 46346 Form A and DIN 46247 standards. These dies are specifically machined and engraved with cable section information to ensure accurate and consistent crimps essential for reliable electrical connections.

This crimp die set is intended for use with the Knipex 97 43 200 universal crimping tool, enabling compatibility with a wide range of applications. The dies are secured with screws to maintain position during the crimping process. The tool’s virtually parallel crimping mechanism and factory-calibrated crimping pressure contribute to uniform and precise crimps, reducing manual effort due to efficient lever transmission.

Constructed from oil-hardened vanadium chrome electric steel, the dies provide exceptional durability and resistance to wear. Weighing about 40 grams, they offer easy handling even in prolonged industrial or workshop use. Maintenance involves periodic lubrication of moving parts to ensure a long service life, particularly under conditions involving dirt or contaminants.

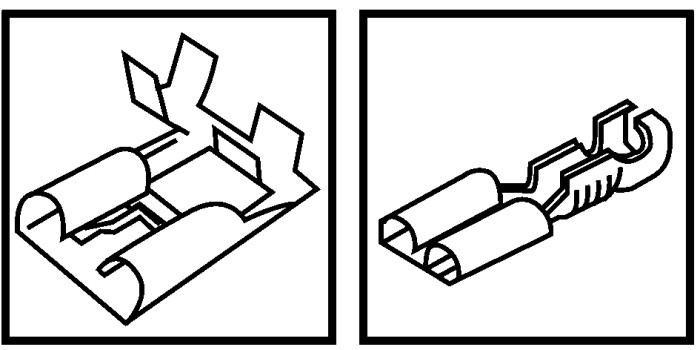

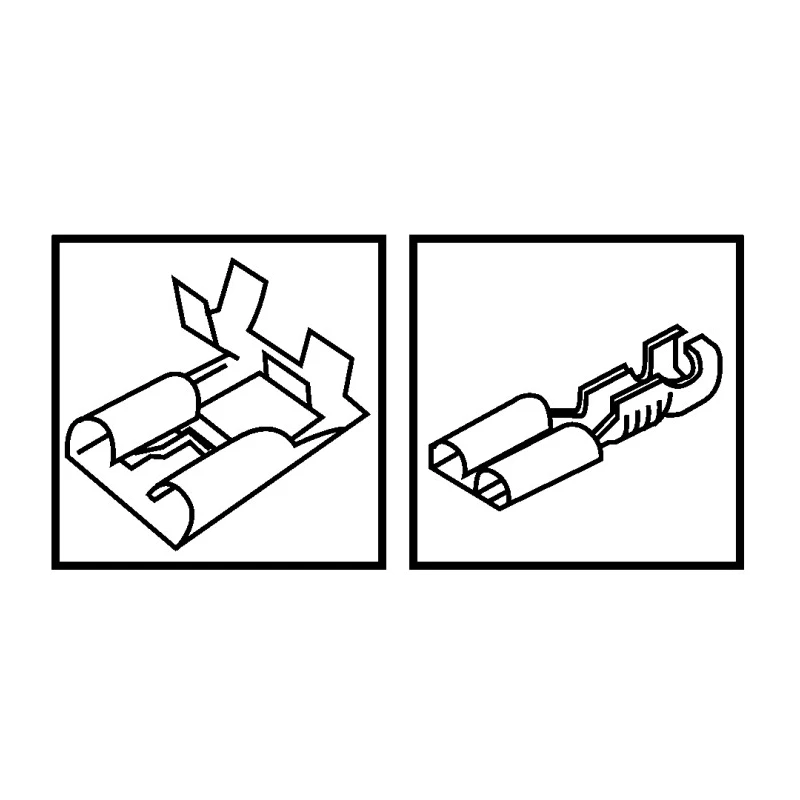

The crimp die set’s design supports crimping of uninsulated connectors such as flag plugs (6.3mm wide) and non-insulated open shank connectors (4.8mm wide) across various cable cross sections. This ensures a gas-tight electrical connection with no voids that could cause corrosion, resistance, or heat buildup, essential for safety and performance in electrical installations.

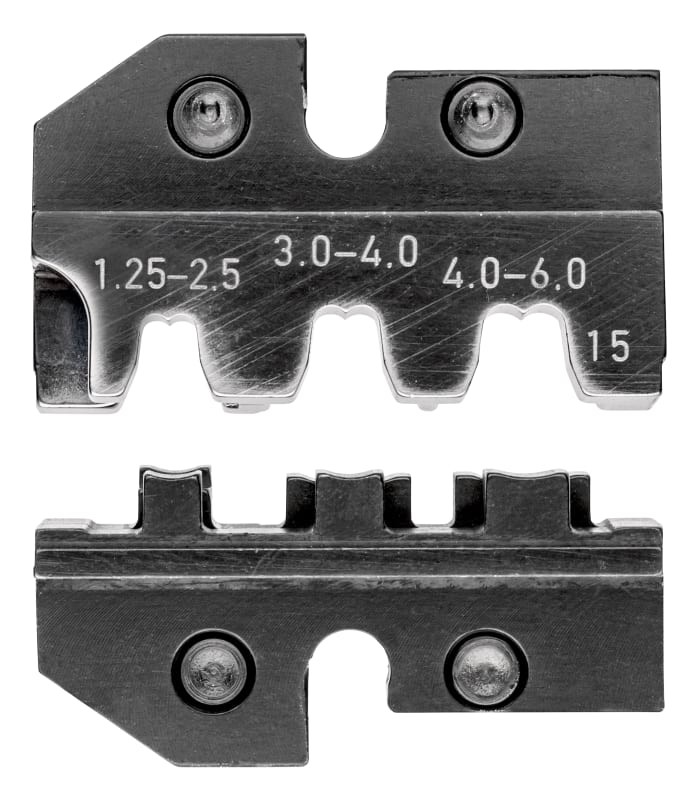

The set includes 2 insulated black crimp dies suitable for 3 to 6 and 1.25 to 2.5 mm² cable sizes. Designed for use with open plug types and compliant with DIN 46346 Form A and DIN 46247 standards. Dies are machined and engraved with cable section sizes for accuracy.

Fixed with screws, the dies fit the Knipex 97 43 200 universal crimping tool. Precision parallel crimping mechanism ensures consistent high-quality crimps. Manufactured from oil-hardened vanadium chrome electric steel for durability.

Lightweight at approximately 40 grams, facilitating ergonomic handling. Ideal for electrical and mechanical industrial applications requiring reliable crimping quality.

This product is manufactured in Germany, reflecting high engineering and quality standards typical of Knipex tools. It is suitable for use in industrial, electrical, construction, and manufacturing settings that demand precision crimping solutions. Explore more Knipex crimping tools and accessories in EnvMart’s extensive Industrial Tools & Equipment catalog.
