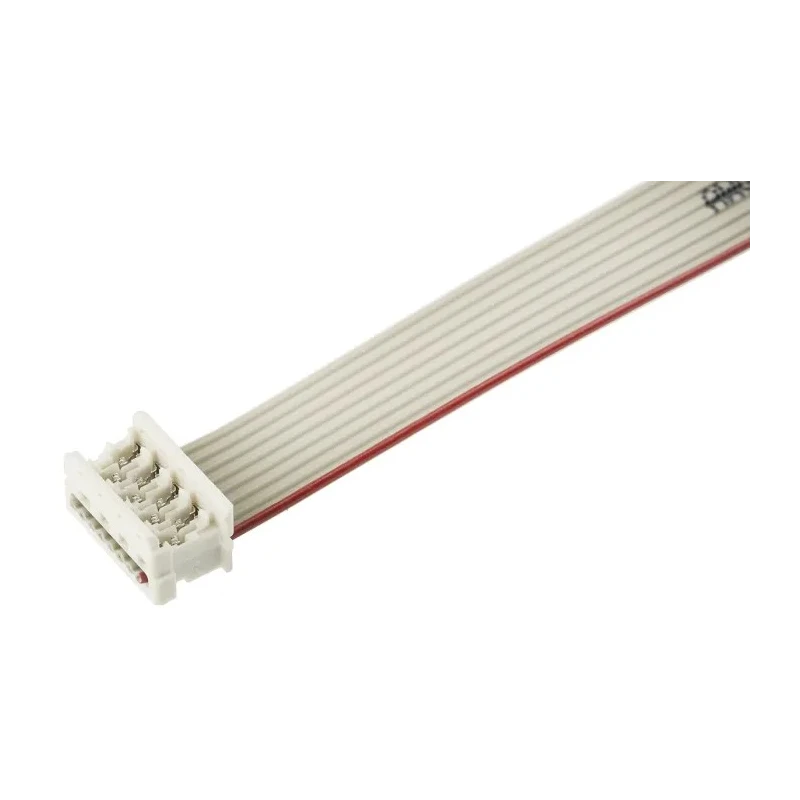

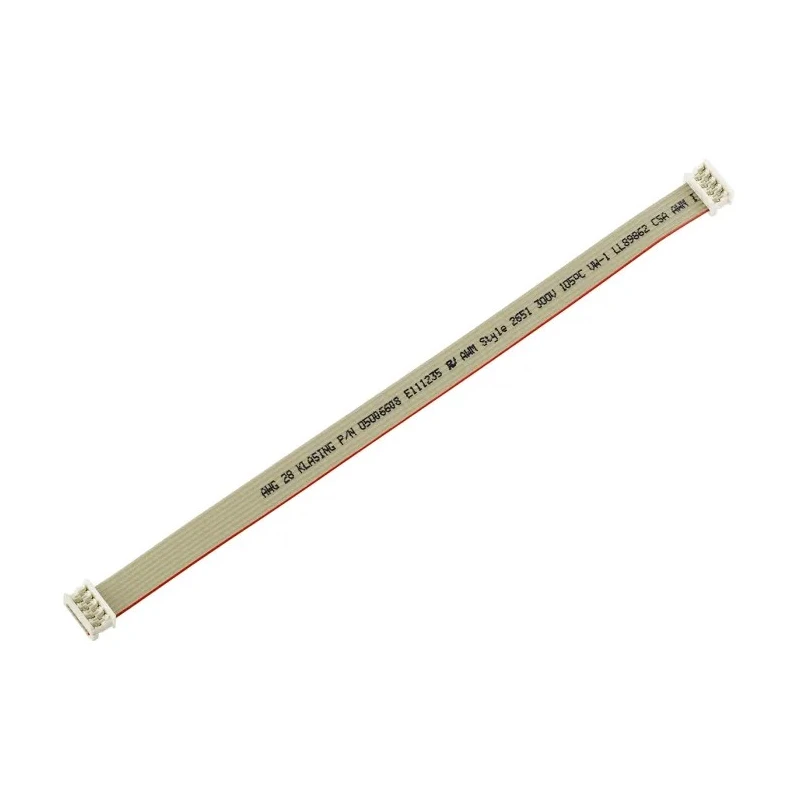

Molex Picoflex Series Flat Ribbon Cable 200 mm Length Picoflex IDC to Picoflex IDC 92315-0820

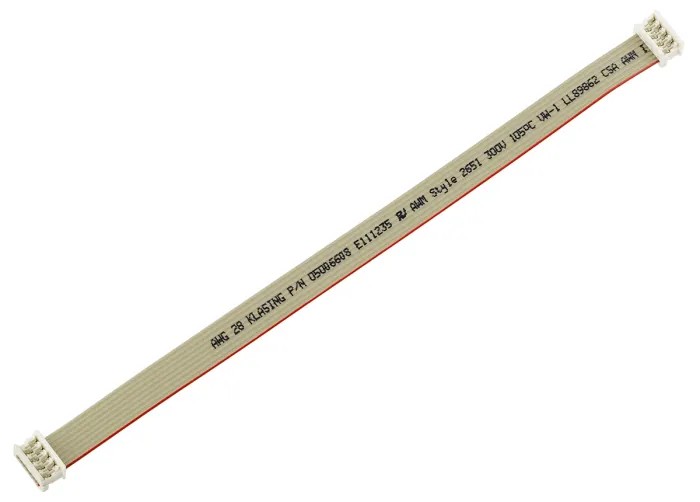

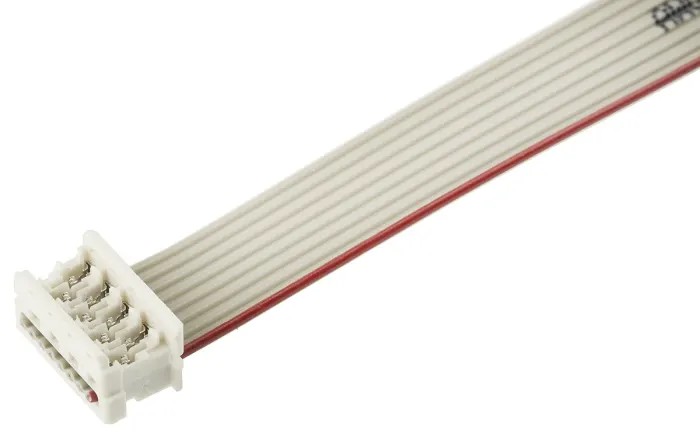

Molex 92315-0820 Picoflex Series flat ribbon cable offers a reliable and compact solution for wire-to-board applications requiring 200 mm length. It features Picoflex IDC connectors on both ends, suitable for mating with Molex Picoflex PF-50 headers series 90325, 90800, 90779, 90715, and 90814.

The cable assembly includes a 28 AWG 7-strand ribbon cable with gray PVC insulation and a durable polyester jacket. Contacts are made from phosphor bronze alloy with tin plating, providing excellent electrical performance and resistance to corrosion. The IDT housing uses Nylon 6/6 material compliant with UL 94V-0 for flame retardancy.

With a 1.27 mm pitch and 50% space-saving design, this cable assembly significantly reduces installation space requirements while maintaining high vibration and shock resistance. This product is RoHS compliant and ideal for automotive, consumer electronics, and other high-density electronic equipment applications.

These cable assemblies reduce tooling investment and save installation time, making them efficient for manufacturing processes that require reliable interconnect solutions. This flat Ribbon Cable features Picoflex IDC connectors on both ends for reliable wire-to-board connections.

The cable length is precisely 200 mm, suitable for compact electronic assemblies. Constructed with gray PVC insulation and polyester jacket ensuring durability and flexibility. Contact materials are phosphor bronze alloy with tin plating for excellent conductivity and corrosion resistance.

IDT housing made of Nylon 6/6 meets UL 94V-0 flammability standard for enhanced safety. Complies with RoHS standards ensuring environmentally friendly manufacturing. Ideal for automotive and consumer electronics applications requiring space-saving and vibration-resistant cabling.

The 1.27 mm pitch and PF-50 design enable 50% space savings compared to traditional cable assemblies. Explore Molex Picoflex cable solutions and other wire and cable products at EnvMart for industrial and commercial electronics applications.
