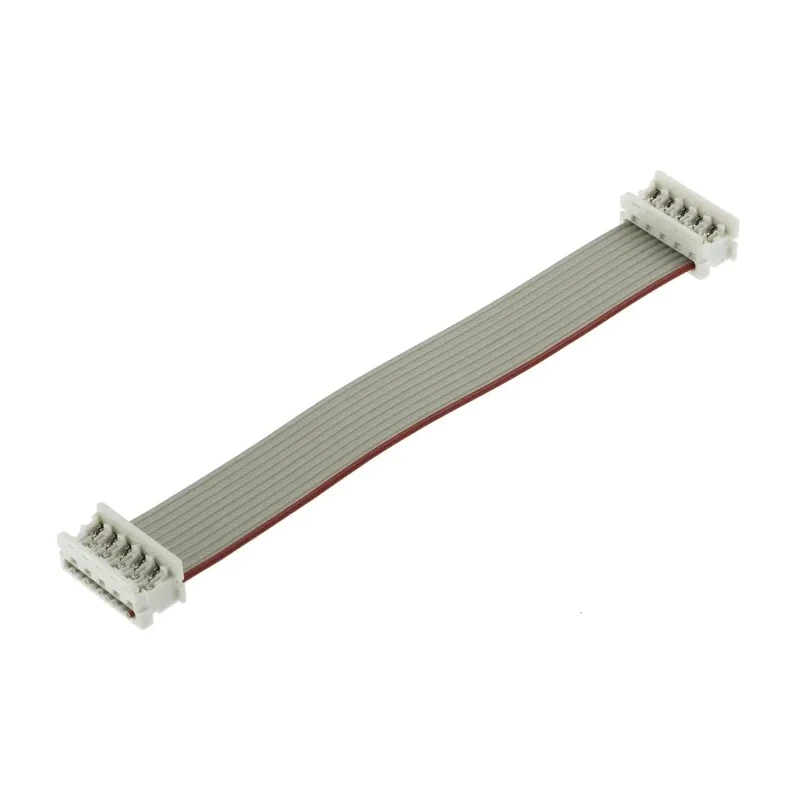

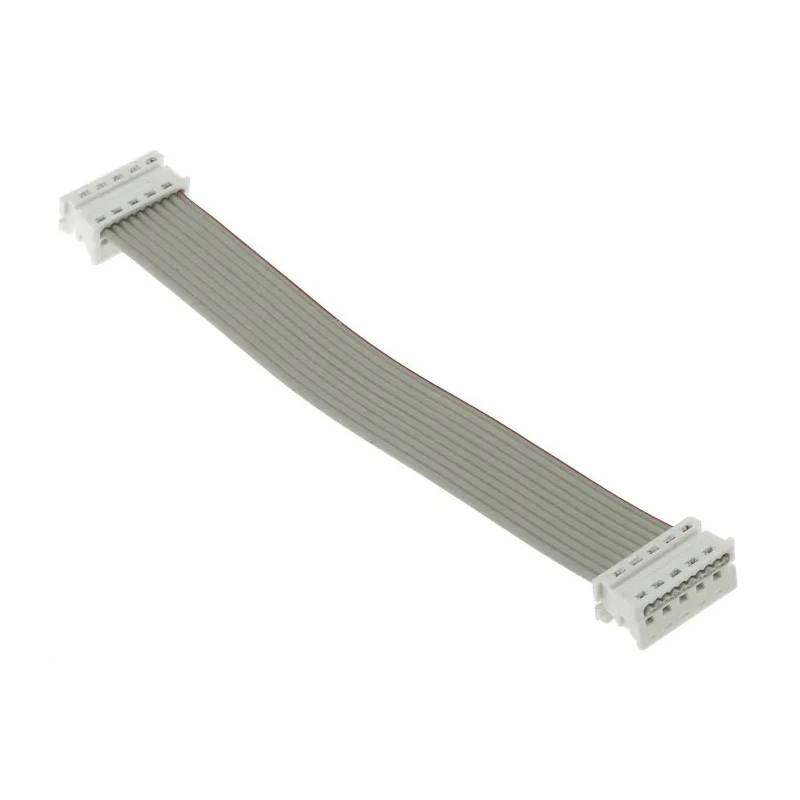

Molex Picoflex Series Flat Ribbon Cable 100 mm Length Picoflex IDC to Picoflex IDC 92315-1010
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Cable Length | 100mm |
| Contact Material | Phosphor Bronze alloy, tin plated |
| Cable insulation | Gray PVC |
| Series | Picoflex |
| Cable Type | Flat |
| Jacket Material | Polyester |
| Standards/Approvals | RoHS Compliant |
| Connector Type A | Picoflex IDC |
| Connector Gender A | Female |
| Jacket Colour | Grey |
| Contact Gender A | Female |
| IDT housing Material | Nylon 6/6, UL 94V-0 |
Key Features
- The cable has a length of 100 mm with a flat cable type.
- Connectors are Picoflex IDC type with female contact and connector gender on both ends.
- The jacket material is durable polyester in grey color.
- Contacts are made of phosphor bronze alloy with tin plating to ensure reliability.
- Cable insulation is gray PVC for protection and flexibility.
- IDT housing material is Nylon 6/6 compliant with UL 94V-0 for flame resistance.
- The cable assembly complies with RoHS standards for environmental safety.
- This assembly includes two 90327 Series Picoflex IDC connectors mating with multiple Picoflex PF-50 headers.
Product Description
Molex 92315-1010 Picoflex Series Flat Ribbon Cable 100 mm Length with Picoflex IDC to Picoflex IDC connectors is a high-quality wire to board cable assembly designed for compact, high-density electronics applications.
The cable is a 1.27 mm pitch Picoflex PF-50 series, known for significant space savings of up to 50% compared to traditional pitch wiring solutions. This assembly consists of two 90327 Series Picoflex IDT connectors paired with a flat UL 2651, 28 AWG (7 strand) ribbon cable. The cable length is precisely 100 mm, making it suitable for compact assembly and wiring tasks.
The connectors and contacts feature robust materials: the contact material is phosphor bronze alloy with tin plating for conductivity and corrosion resistance, while the IDT housing uses flame-retardant Nylon 6/6 material rated at UL 94V-0. The cable insulation comprises gray PVC, and the outer jacket is durable grey polyester, providing mechanical protection and flexibility.
Designed for industrial, automotive, and consumer electronics manufacturing, this cable assembly offers excellent polarization features and integral strain relief, making it highly resistant to vibration and shock. It is also RoHS compliant, ensuring environmental and regulatory adherence.
The cable assembly connects Picoflex IDC connectors to Picoflex IDC connectors for reliable wire to board interconnection. The compact 1.27 mm pitch allows for high-density applications requiring minimal space. Durable insulating and jacket materials ensure longevity in demanding environments.
Provides significant assembly time and tooling cost savings due to pre-termination. Ideal for use with various Picoflex PF-50 series headers.
Available as part of the Molex Picoflex product line, this cable meets the needs of engineers and manufacturers seeking compact, reliable ribbon cable solutions in electronics and automation sectors.
Browse the Ribbon Cable category at EnvMart for more high-density cable assemblies and related products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable has a length of 100 mm.
It uses Picoflex IDC connectors with female contact on both ends.
The cable insulation is made of gray PVC, and the outer jacket is made of durable polyester in grey color.
The contacts are made of phosphor bronze alloy with tin plating for conductivity and corrosion resistance.
The IDT housing is made of Nylon 6/6 and is compliant with UL 94V-0 for flame resistance.
Yes, this cable assembly is RoHS compliant, ensuring it meets environmental safety standards.
This cable is part of the Picoflex series, designed for high-density electronics applications.
The Picoflex connectors have a pitch of 1.27 mm, allowing for significant space savings in wiring solutions.
This cable assembly is designed for industrial, automotive, and consumer electronics manufacturing.
The cable assembly includes integral strain relief, making it highly resistant to vibration and shock.
The ribbon cable is 28 AWG (7 strand), which is suitable for compact assembly tasks.
The country of origin for this cable is India.
