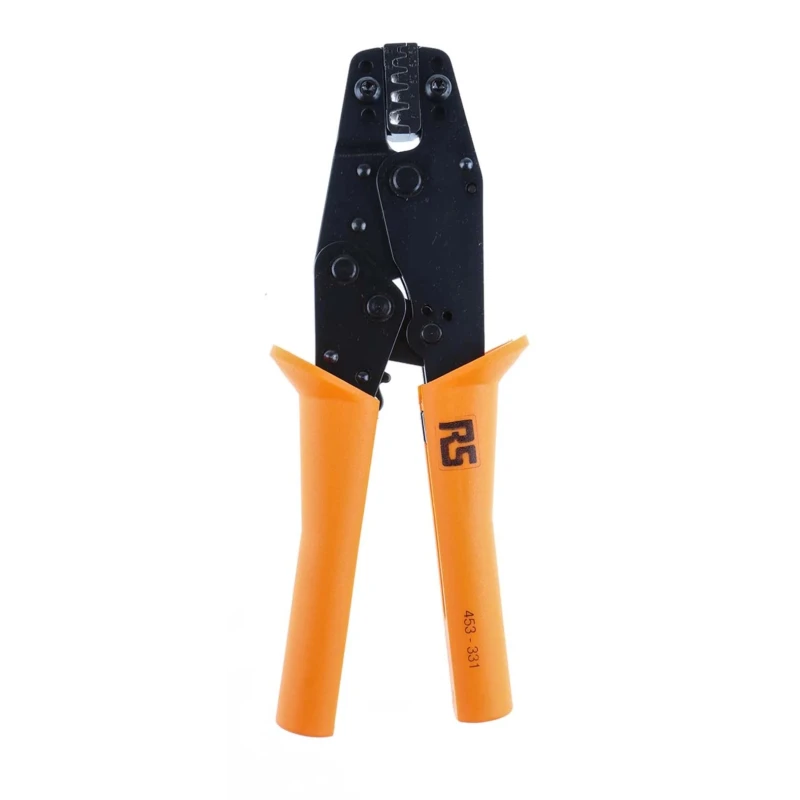

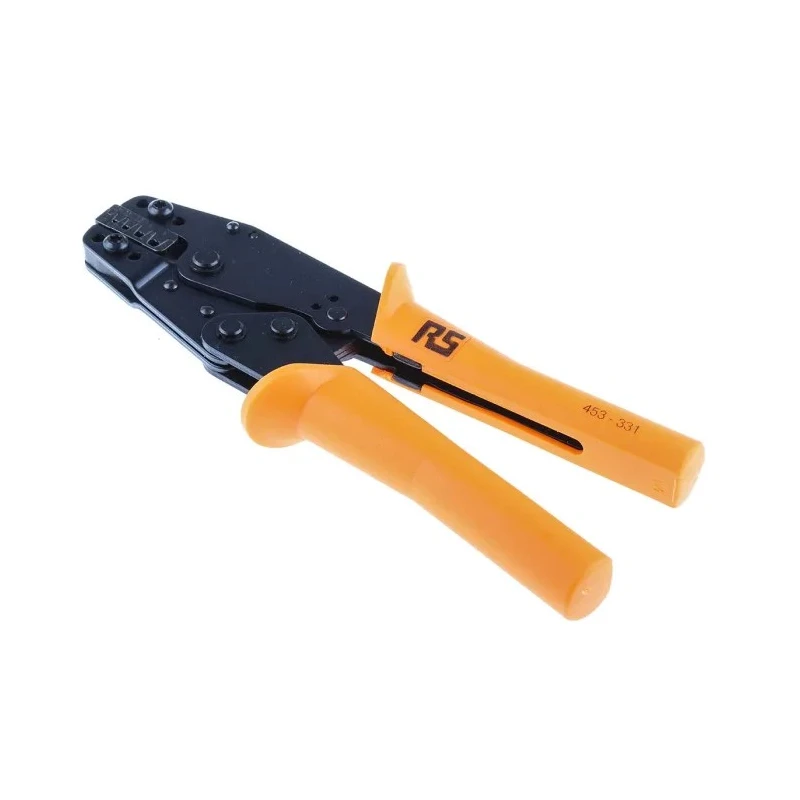

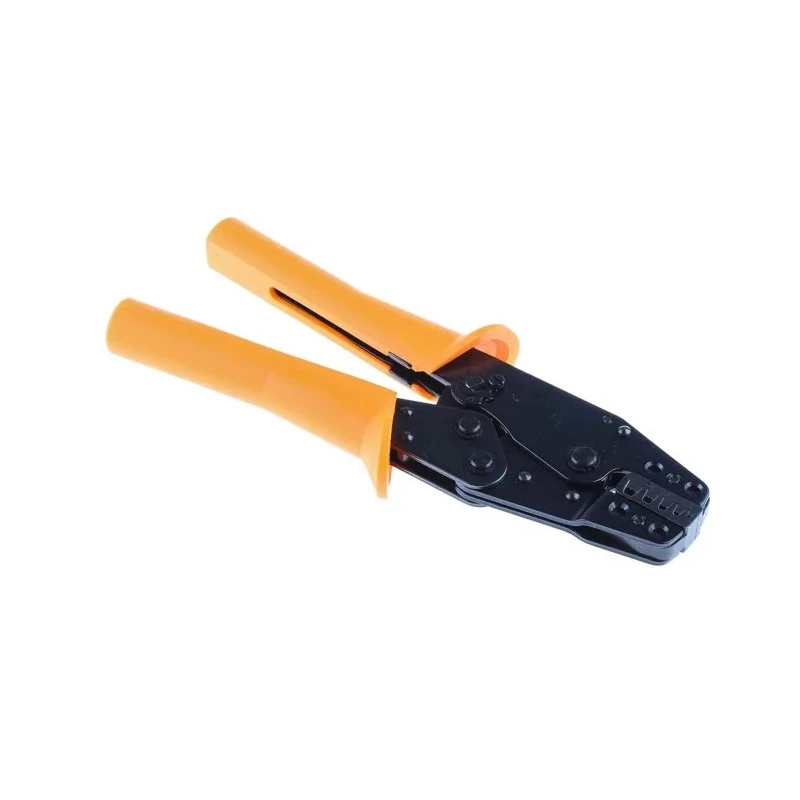

Weidmüller Hand-Operated PZ 20 AWG Crimp Tool for Wire Ferrules 9011680000, 200mm Length, Adjustable Ratchet, German Origin
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Weidmüller |
| Overall Length | 200mm |
| Series | PZ |
| Sub Type | Crimp Tool |
| Cutting Capacity | 20 AWG |
| For Use With | Wire Ferrules |
| Standards/Approvals | VG 95211, DIN 46228 T. 1 et 4, partie 5, EN 60947-1, VDE 0680, VG 95236 T 14 A 0001 |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 10AWG |
| • Compact size | only 200 of length and 380g weight |
| Weidmüller PZ 6/5 PZ 6/5 Crimp Tool for Wire FerrulesBrand | Weidmüller |
Key Features
- Suitable for wire ferrules from 0.5 to 6 mm² or 24 AWG to 10 AWG.
- Compact and ergonomic design with 200mm overall length for easy handling.
- Lightweight at approximately 380 grams to reduce user fatigue.
- Adjustable ratchet mechanism ensures consistent and precise crimps.
- Complies with VG 95211, DIN 46228 T.1 & 4, EN 60947-1, and other European standards.
- Side insertion of ferrules for faster and easier operation.
- Includes release function to avoid damage on incorrect operation.
- Achieves airtight crimps to minimize wire corrosion risks.
Product Description
Weidmüller 9011680000 PZ 20 AWG Crimp Tool is a professional-grade, hand-operated crimping tool designed for electrical and industrial applications requiring precise ferrule connections. It supports wire ferrules ranging from 0.5 to 6 mm² cross-section, corresponding to 24 AWG minimum and 10 AWG maximum wire sizes. The compact 200 mm length and ergonomic handles provide comfortable use and reduced fatigue during extended tasks.
The tool features an adjustable ratchet mechanism that guarantees an airtight crimp, essential for reliable conductor connections and prevention of wire corrosion. Ferrules can be inserted conveniently from the side, streamlining work on varied job sites. The integrated release function allows operators to correct incorrect crimps without damaging the wire.
Manufactured according to standards VG 95211, DIN 46228 T.1 & 4 (part 5), EN 60947-1, VDE 0680, and VG 95236 T 14 A 0001, this German-origin tool meets stringent safety and performance guidelines.
Weidmüller PZ 20 AWG Crimp Tool is ideal for electrical installations, cable assembly lines, and general maintenance in industrial, manufacturing, and commercial environments. Its precise indent crimping capability is suitable for insulated and uninsulated bootlace ferrules, providing secure, long-lasting connections without the need for soldering.
Typical crimp pull-off forces range from 15 N for 0.25 mm² to 60 N for 6.0 mm², ensuring strong mechanical performance tailored to wire size. The tool's lightweight of 380 grams further enhances portability and ease of use.
Suitable for wire ferrules from 0.5 to 6 mm² cross-section. Ergonomic handles reduce user fatigue during long operations. Ratchet mechanism ensures precise crimps with release feature. Side ferrule insertion for quicker wiring tasks.
Conforms to multiple European and international standards. Explore EnvMart's wide selection of hand tools and crimping equipment for all professional industrial and electrical needs.
Explore more products in our Crimping Tools category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp tool has a cutting capacity for wire sizes from 0.5 to 6 mm², which corresponds to 24 AWG minimum and 10 AWG maximum wire sizes.
The overall length of this crimp tool is 200 mm, and it weighs approximately 380 grams.
It complies with several standards including VG 95211, DIN 46228 T. 1 & 4, EN 60947-1, VDE 0680, and VG 95236 T 14 A 0001.
The adjustable ratchet mechanism ensures consistent and precise crimps, allowing for controlled crimping of wire ferrules.
The side insertion feature allows for faster and easier operation when inserting ferrules, streamlining the crimping process.
Yes, it is suitable for crimping both insulated and uninsulated bootlace ferrules, providing secure connections without soldering.
The release function allows operators to correct incorrect crimps without damaging the wire, enhancing usability.
It is ideal for electrical installations, cable assembly lines, and general maintenance in industrial, manufacturing, and commercial environments.
Typical crimp pull-off forces range from 15 N for 0.25 mm² to 60 N for 6.0 mm², ensuring strong mechanical performance tailored to wire size.
The compact and ergonomic design of this model helps reduce user fatigue during extended tasks, making it comfortable to use.
This crimp tool is manufactured in Germany, ensuring adherence to high manufacturing standards.
The weight of this crimp tool is approximately 380 grams, which contributes to its portability and ease of use.
