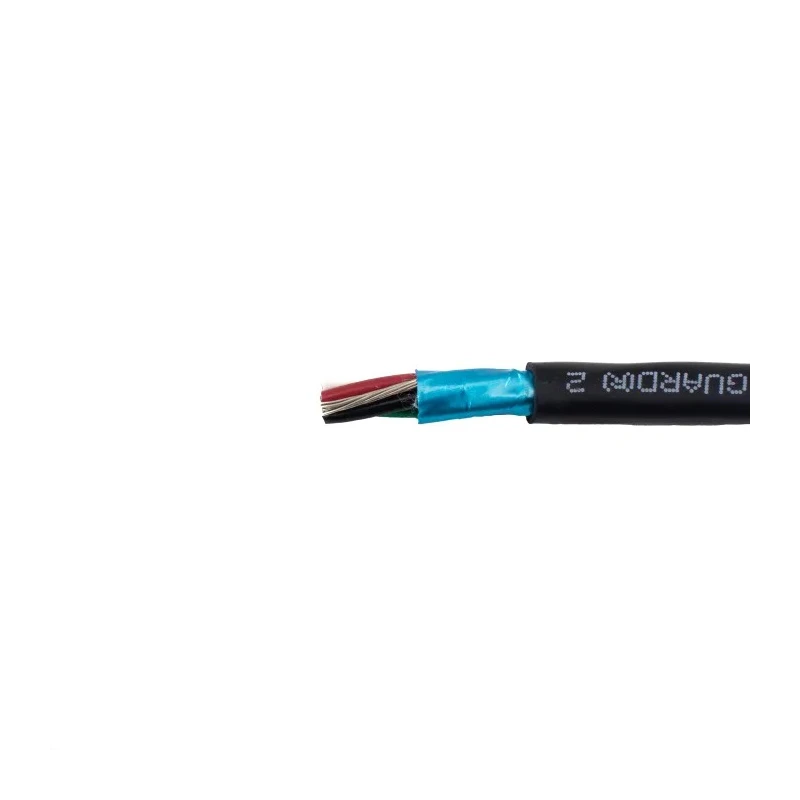

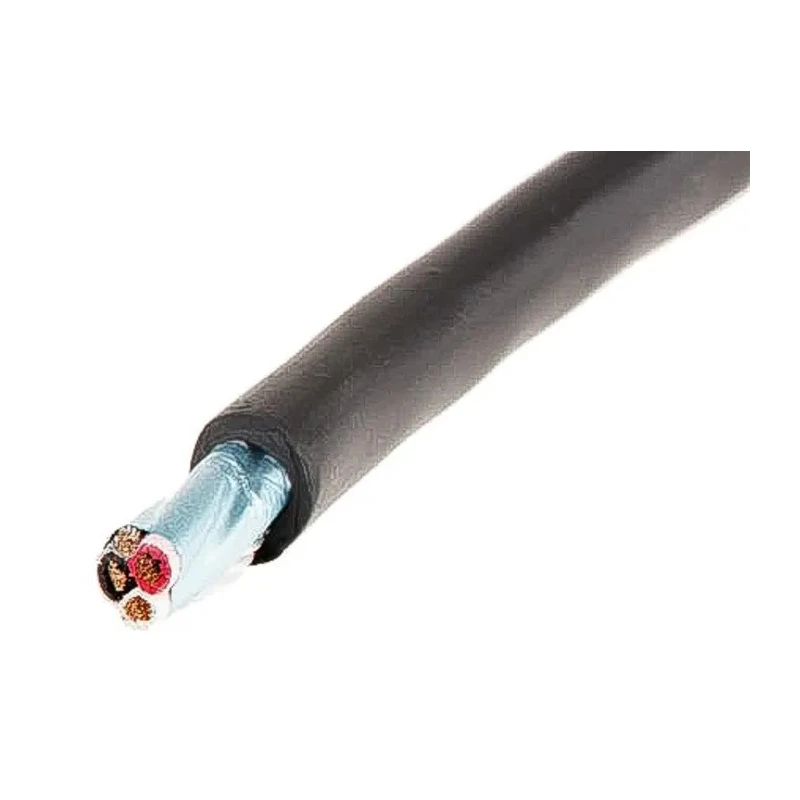

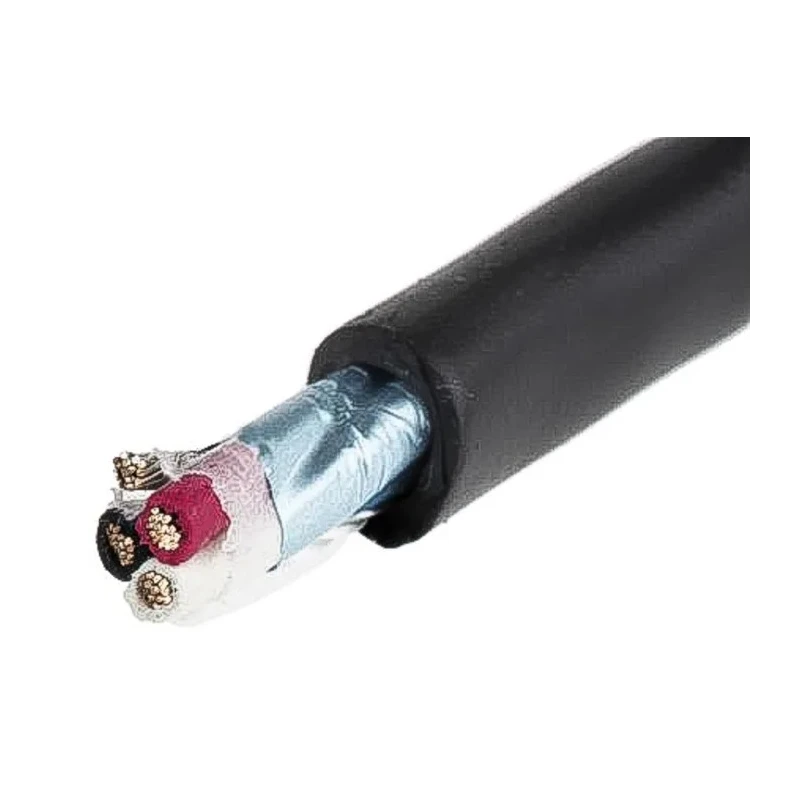

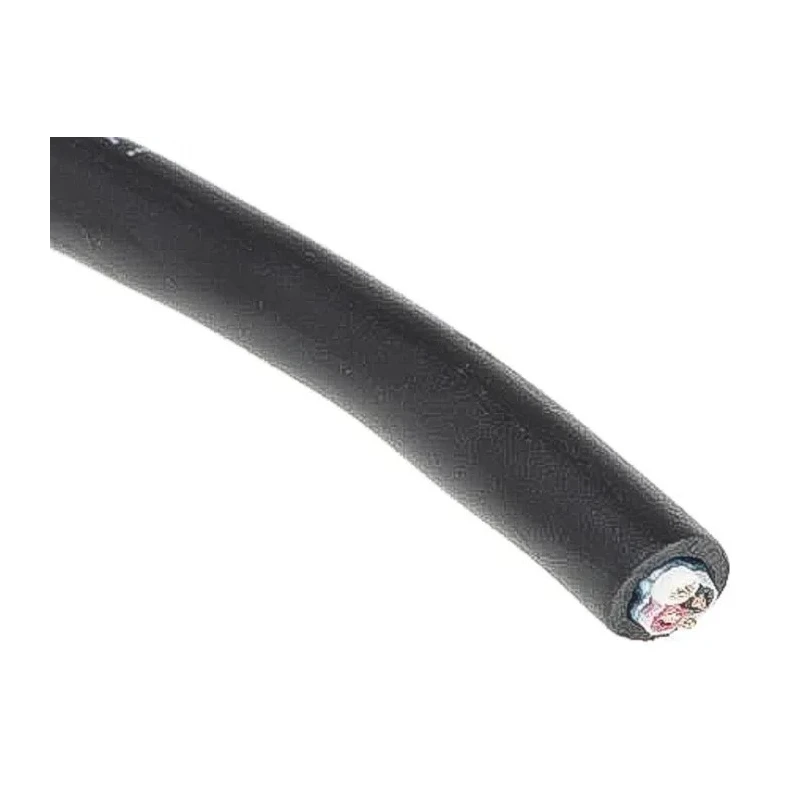

Alpha Wire XTRA-GUARD 2 Control Cable, 3 Cores, 0.56mm² (20 AWG), Screened, 30 m, Black Polyvinyl Chloride Sheath 25463 BK005

Alpha Wire 25463 BK005 is a high-quality XTRA-GUARD 2 control cable designed for industrial signalling and control applications. It features three cores of tin-plated copper conductors, each with a conductor area of 0.56mm² (20 AWG), which are screened to reduce electromagnetic interference and ensure signal integrity.

The cable has a durable black polyvinyl chloride sheath that is flame retardant, UV resistant, and flame resistant according to UL1581 VW-1 and IEC 60332-1 standards. Rated for 300V operation and with a temperature tolerance range from -30°C to 90°C, it is suitable for a wide range of industrial environments.

This cable is constructed with seven strands per conductor (7 x 0.32mm strands), providing flexibility and robustness. Its screening consists of aluminium/Mylar foil combined with a tinned copper drain wire to enable simplified earth termination and superior electromagnetic protection.

The XTRA-GUARD 2 cable series meets CSA, UL, and CE standards, assuring compliance with major industrial regulations. Its flame retardant and low smoke zero halogen (LSZH) jacket reduces toxic emissions, making it safer for confined spaces and industrial plants.

Applications include factory automation control panels, motor controllers, wiring of machine tools and conveyor control systems, distributed I/O installations, PLC field connections, and signal or sensor cabling in robotics and industrial plants. The cable is especially suitable for indoor runs requiring flame retardance and reduced smoke emission.

Tinned copper conductors reduce corrosion and improve conductivity for reliable signal transmission. Screened construction limits electromagnetic interference for precise control signals. Rated voltage of 300V suitable for low-voltage control circuits.

Operating temperature range from -30°C to 90°C supports various environments. Polyvinyl chloride jacket is flame retardant and UV resistant for extended durability. Flame resistance to UL1581 VW-1 and IEC 60332-1 increases safety during fire exposure.

Flexible stranded conductor design (7 strands of 0.32mm each) ensures good flexibility and performance. Suitable for use in factory automation, motor controllers, machine tools, and conveyor systems. Compliant with CSA, UL, and CE standards for industrial quality assurance.
