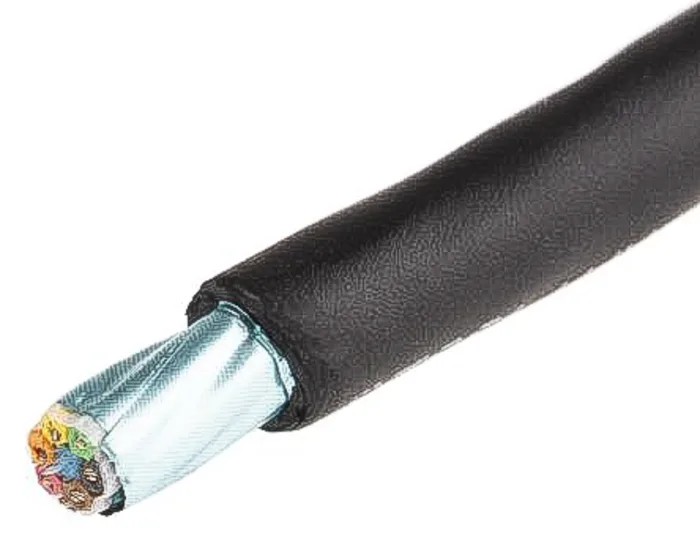

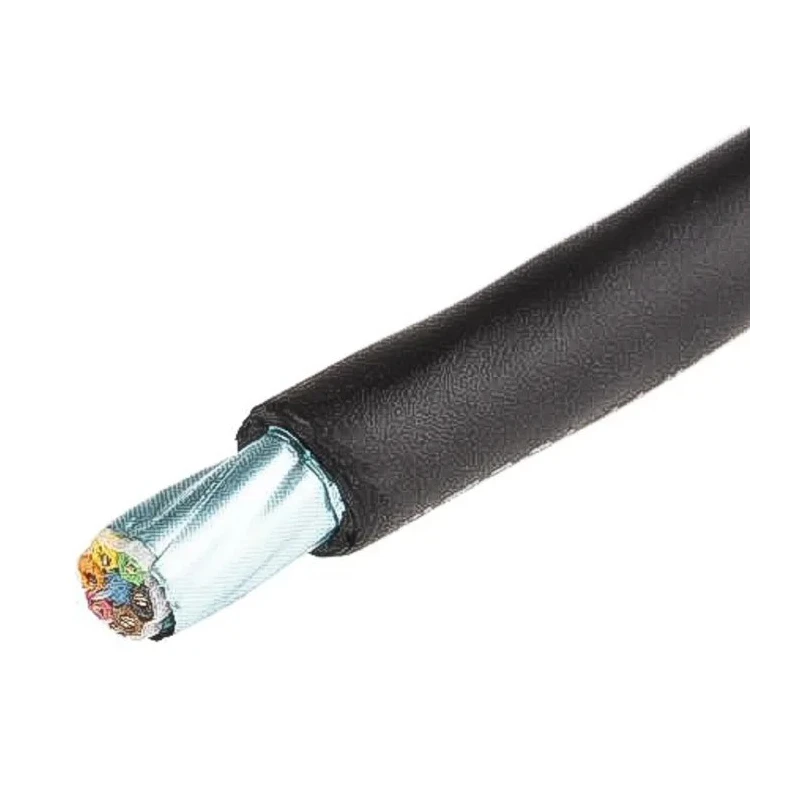

Alpha Wire XTRA-GUARD 2 Series Data Cable 3 Pairs 6 Cores 30 m Black Polyurethane Sheath 300V 25483 BK005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | 25483 BK005 |
| Cable Length | 30m |
| Series | XTRA-GUARD 2 |
| Outside diameter | 6.32mm |
| Maximum Operating Temperature | 90°C |
| Number Of Cores | 6 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyurethane |
| Standards/Approvals | CSA, UL, CE |
| Jacket Colour | Black |
| Fire Behaviour | Flammability Test: VW-1 |
| Number of Strands | 7 |
| Core Strands | 7 x 0.25mm |
| Size of Strands | 0.25mm |
| Number of Pairs | 3 |
| Fire Behaviour Flammability Test | VW-1 |
Key Features
- Heavy-duty polyurethane jacket offers excellent abrasion and tear resistance.
- Rated for voltage up to 300 volts suitable for industrial use.
- Special foil shielding with Supra-Shield braiding provides excellent EMI protection.
- Operates reliably between -30°C and 90°C temperature range.
- Color-coded conductors simplify installation and identification.
- Multiple approvals including CSA, UL, and CE ensure compliance with industry standards.
- Tin copper conductor strands, 7 strands of 0.25 mm diameter each, for improved conductivity.
- High resistance to oils, chemicals, solvents, and UV light for harsh environments.
Product Description
Alpha Wire 25483 BK005 XTRA-GUARD 2 Series Data Cable is a robust industrial-grade cable with 3 pairs (6 cores) and a total length of 30 meters. It features a specially formulated black polyurethane jacket that provides exceptional abrasion and tear resistance, making it suitable for mechanical abuse and harsh conditions.
The cable is designed for use at 300 volts, making it ideal for demanding electrical and automation applications. Its tin copper conductor strands (7 strands of 0.25 mm each) ensure excellent electrical conductivity and performance. The jacket material is resistant to chemicals, solvents, oils, and fuels, holding stable performance in industrial environments.
The cable is equipped with a triple-layer Supra-Shield comprising aluminum/polyester/aluminum foil plus a tinned copper braided shield to provide outstanding electromagnetic interference (EMI) protection. This is critical for sensitive data transmission in environments prone to electrical noise.
Temperature ratings range from -30°C to 90°C with excellent low temperature flexibility and UV resistance, suitable for outdoor or exposed installations. The cable has been tested and approved under UL AWM 20668 VW-1 and CSA AWM I/II A/B FT-1 standards, ensuring compliance with safety and fire resistance requirements.
Key uses include CNC machinery, automotive plants, packaging machines, petrochemical plants, military ground support systems, and geophysical equipment, among others, reflecting the cable's versatility in industrial and manufacturing sectors.
Heavy-duty polyurethane jacket with superior abrasion resistance. Triple-layer Supra-Shield for electromagnetic interference protection. Tin copper conductor strands for reliable electrical performance. Wide temperature operating range of -30°C to 90°C.
Resistance to oils, chemicals, solvents, and UV exposure. Certified to UL and CSA industrial standards. Ideal for industrial automation, manufacturing, and harsh environments. Explore more industrial cables in the Data Cable category at EnvMart for reliable electrical and data transmission solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this data cable is 300 volts, making it suitable for industrial applications.
This model operates reliably within a temperature range of -30°C to 90°C, providing flexibility in various environments.
The cable features a total of 6 cores, organized into 3 pairs.
The conductors are made of tin copper wire, consisting of 7 strands of 0.25 mm diameter each, ensuring good electrical conductivity.
It has a heavy-duty polyurethane jacket that offers excellent abrasion and tear resistance, suitable for harsh conditions.
The cable is certified to UL, CSA, and CE standards, ensuring compliance with industry safety and performance requirements.
The outside diameter of this data cable is 6.32 mm.
It features a triple-layer Supra-Shield comprising aluminum/polyester/aluminum foil plus a tinned copper braided shield for excellent EMI protection.
This cable is suitable for applications including CNC machinery, automotive plants, packaging machines, and petrochemical plants, among others.
The polyurethane jacket is highly resistant to oils, chemicals, solvents, and UV light, making it suitable for harsh environments.
The cable has a fire behavior rating of VW-1, indicating its performance in flammability tests.
The total length of this data cable is 30 meters, providing ample length for various installations.
