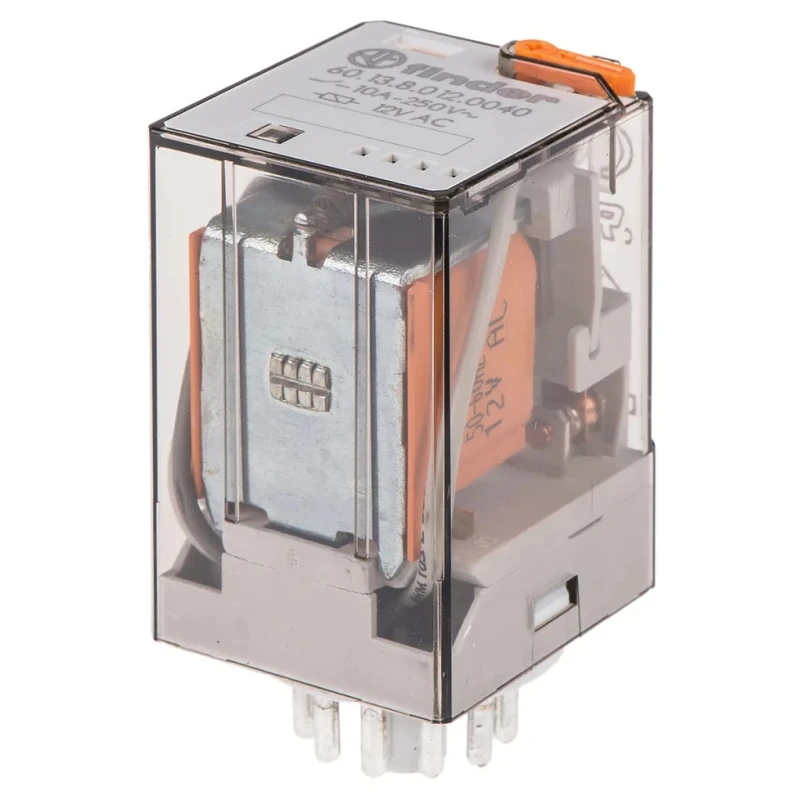

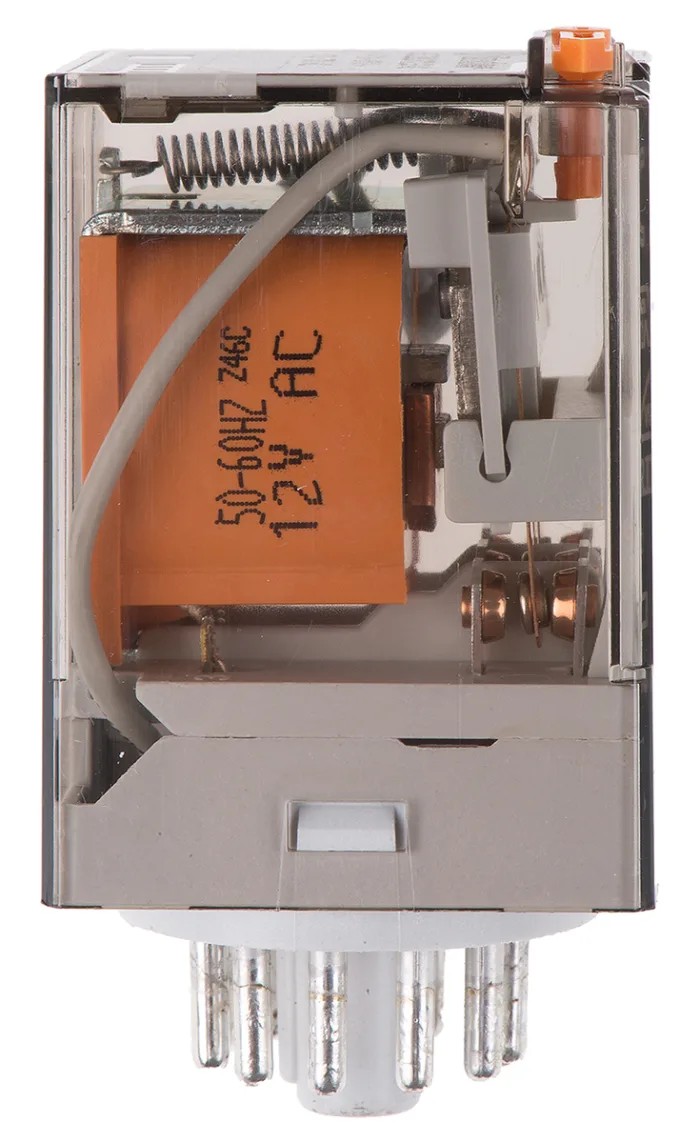

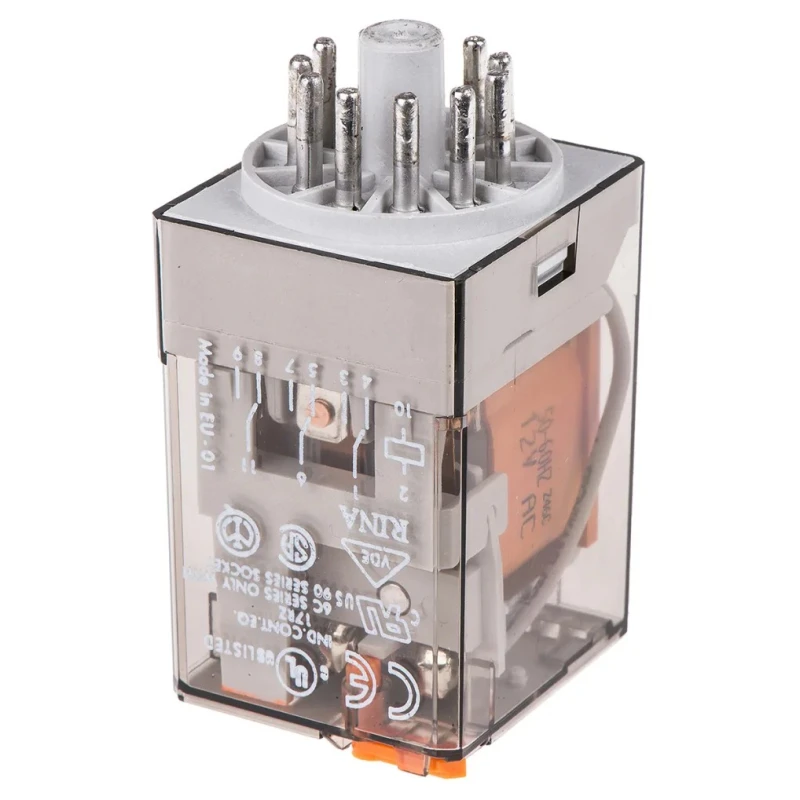

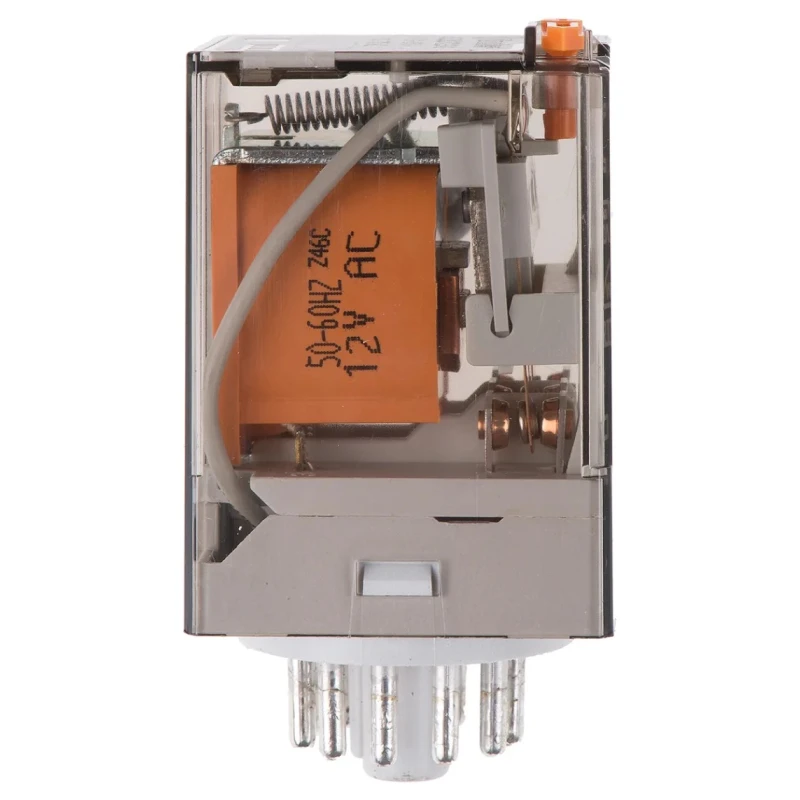

Finder Power Relay with 12V AC Coil Voltage, 10A Switching Current, 3PDT Contact Configuration 60.13.8.012.0040

Finder 60.13.8.012.0040 Power Relay is a general-purpose plug-in relay designed for industrial and automation applications. Featuring a 12V AC coil voltage and a 3PDT (three-pole double-throw) contact configuration, this relay provides reliable switching operation with a rated current of 10A. The relay effectively switches DC voltages up to 220V and AC voltages up to 400V, accommodating a wide range of control requirements.

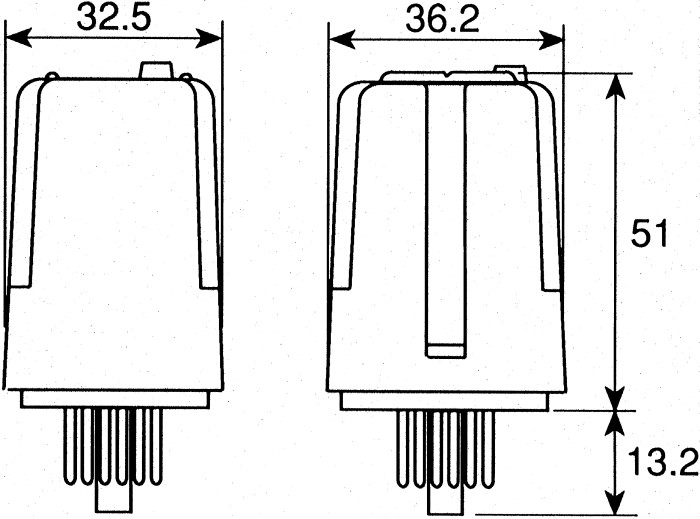

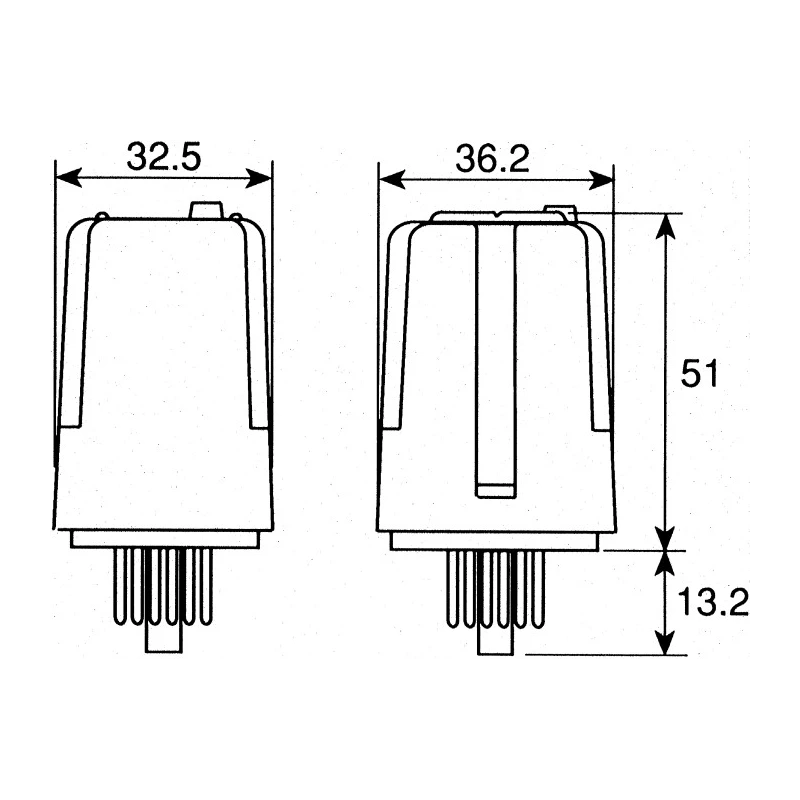

With dimensions of 32.5mm length, 36.4mm width, and 54.2mm height, the compact form factor simplifies integration into control panels and electrical systems. The PCB pin terminal arrangement allows straightforward installation and durability in circuit boards.

The power relay operates safely within a broad temperature range from -40°C minimum to a maximum of 70°C, ensuring stable performance in demanding environments. Silver alloy contact material enhances electrical conductivity while reducing wear for long operational life. It offers exceptional electrical endurance, rated for up to 200,000 switching cycles.

Safety is enhanced with a high coil-to-contact isolation voltage of 3.6kV, protecting sensitive control circuits from high voltage transients. Compliance with rigorous standards including VDE, CE, CSA, cURus, EAC, EN, RINA, RoHS, and CCC guarantees reliability and global applicability.

This relay is ideally suited for use in automated control systems, industrial machinery like hoists and cranes, burner, boiler, and furnace controls, as well as in shipyard switching and public lighting controls such as roads and tunnels.

This power relay supports a switching current of up to 10A for robust performance. It features PCB pin terminal type for easy installation in control panels. Designed to switch DC voltages up to 220V and AC voltages up to 400V.

The relay operates efficiently within a temperature range of -40°C to +70°C. Silver alloy contacts ensure high conductivity and durability during switching cycles. It provides high coil-to-contact isolation voltage of 3.6kV for enhanced safety in high-voltage applications.

The compact dimensions (Length 32.5mm x Width 36.4mm x Height 54.2mm) suit tight spaces in electrical assemblies. Ideal for use in industrial automation, control panels, hoists, cranes, and burner control systems. Conforms to multiple international standards including VDE, CE, CSA, cURus, EAC, EN, RINA, RoHS, and CCC for quality assurance.
