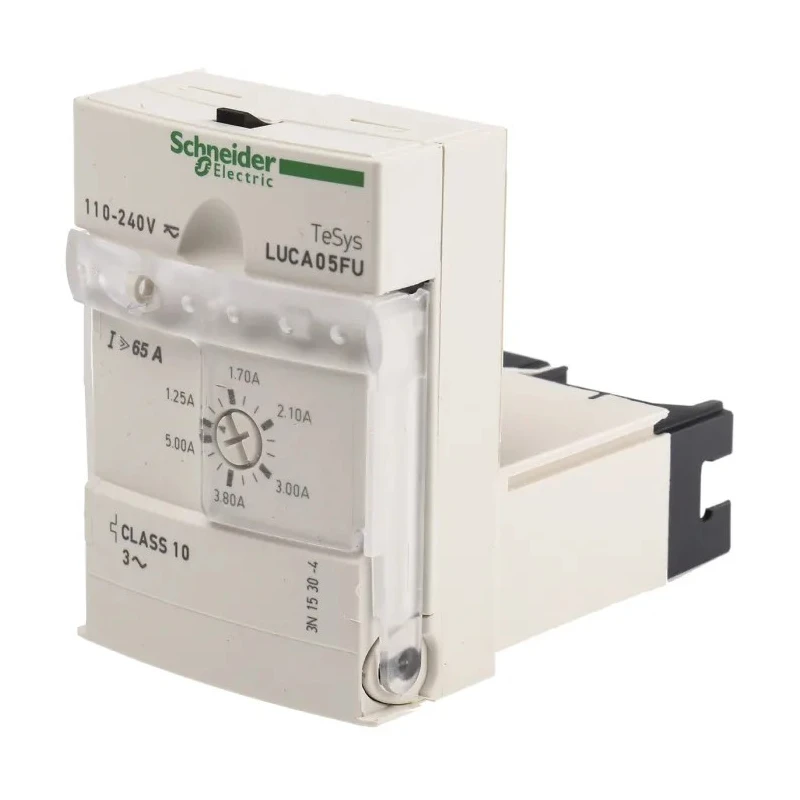

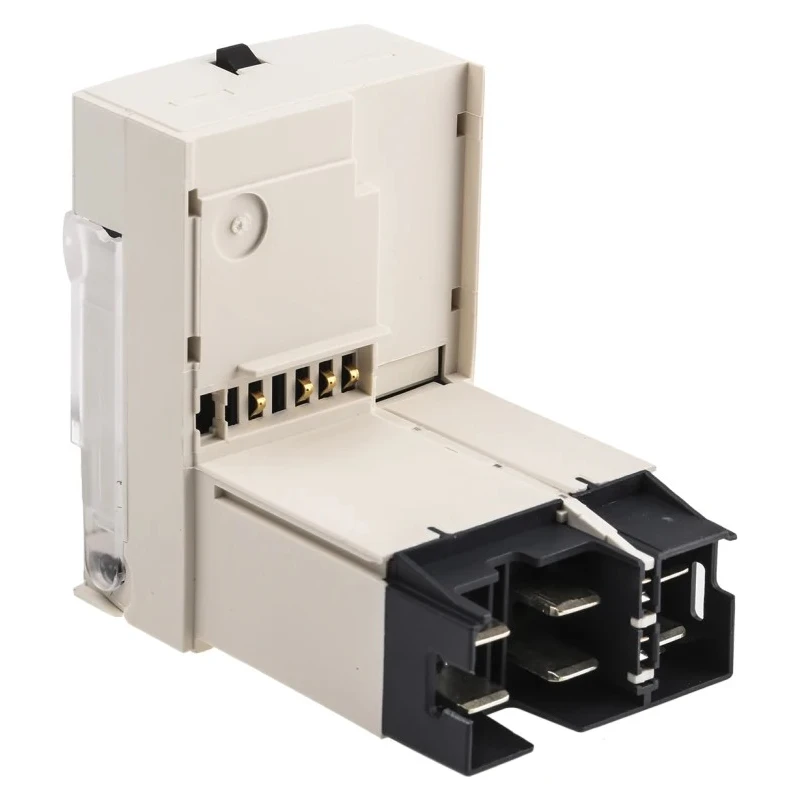

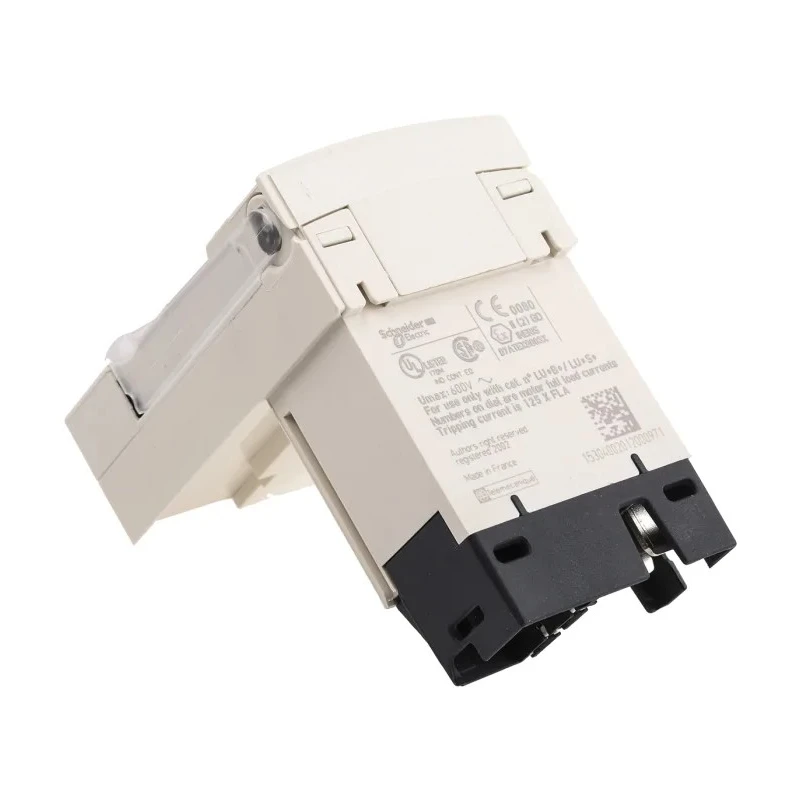

Schneider Electric Direct On Line (DOL) Starter 3 kW 3 Phase 690V AC IP40 LUCA05FU

Schneider Electric LUCA05FU Direct On Line (DOL) Starter is a compact and reliable control unit specifically engineered for starting and protecting three-phase motors with a power rating of up to 3 kW at 690V AC. The device integrates advanced thermal-magnetic overload and short-circuit protection combined with phase loss and imbalance monitoring to ensure motor safety and operational efficiency in demanding industrial environments.

This DOL starter features adjustable current protection ranging from 1.25 to 5 amperes, providing effective safeguarding of motor windings against overloads. It is designed with a Class 10 thermal release mechanism offering a time-delayed overload response, enhancing protection accuracy. The starter accepts a versatile control supply voltage of 110 to 240V AC or 110 to 220V DC, accommodating varied control panel requirements.

Engineered for hazardous-area installations, the LUCA05FU carries ATEX certification. It also conforms to rigorous international safety and performance standards including CSA C22.2 No. 14 Type E, UL 508 Type E, IEC 60947-6-2, and EN 60947-6-2. The device has an IP20 front and IP40 front-outside protection rating, ensuring robustness for panel mounting in harsh industrial settings.

With dimensions of 66 mm length, 45 mm width, and 60 mm depth, this starter is optimized for installation flexibility. It operates efficiently within ambient temperatures from -25°C up to 70°C, suitable for a wide range of industrial environments, and stores safely down to -40°C. The unit is rated for altitudes up to 2000 meters, making it suitable for diverse geographical applications.

LUCA05FU is compatible with plug-in power bases such as the LUB12 and LUB32, facilitating easy integration within motor control panels. Application areas include machinery requiring reversing contactor to breaker assemblies, hazardous area motor starting, and scenarios necessitating phase-failure protection. Typical switch operation times are approximately 50 ms to close and 35 ms to open on compatible bases.

Adjustable current protection from 1.25 to 5A safeguards motor windings. Compact thermal-magnetic overload and short-circuit protection integrated. Phase loss and imbalance monitoring for enhanced motor protection. Control supply voltage input supports 110 - 240V AC or 110 - 220V DC.

ATEX certification for hazardous-area usage ensuring compliance. IP20 front and IP40 front-outside protection suitable for panel mounting. Conforms to standards CSA C22.2 No.14 type E, UL 508 type E, IEC 60947-6-2, EN 60947-6-2.

Operational temperature range from -25°C to 70°C and altitude rating up to 2000 m. Compatible with plug-in bases LUB12 and LUB32 for easy installation.

Designed for industrial automation, electrical control panels, and motor protection in manufacturing, HVAC, water treatment, and other sectors requiring high-performance motor control equipment. Explore the full range of Motor Starters and control gear on EnvMart for industrial applications.
