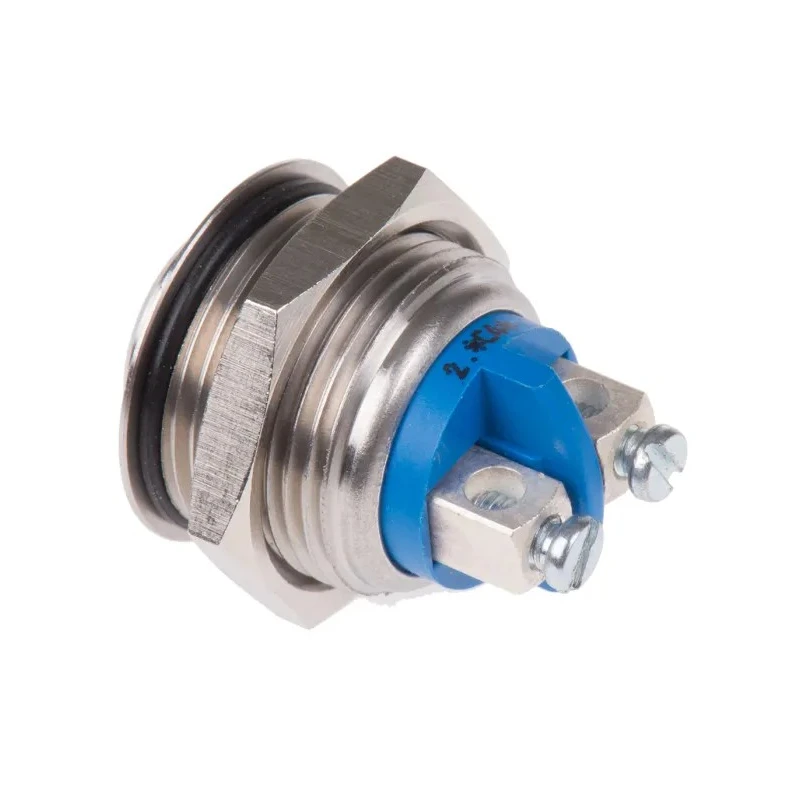

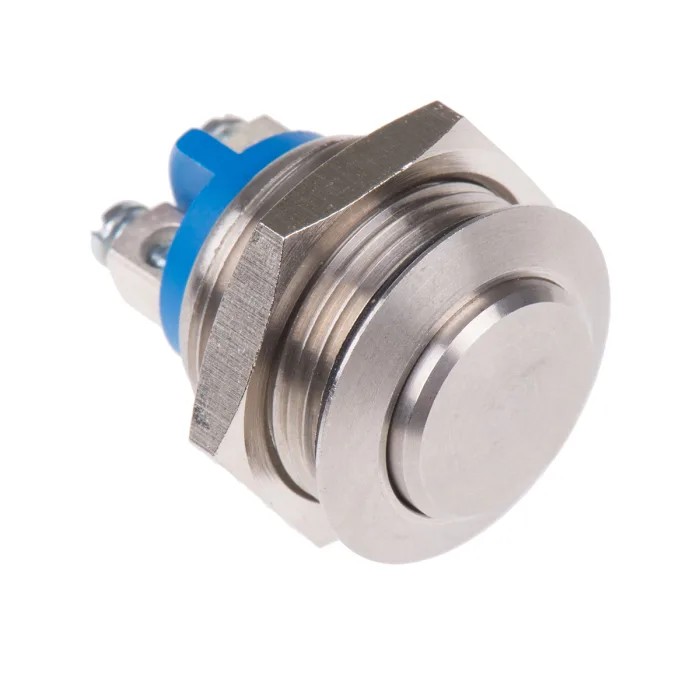

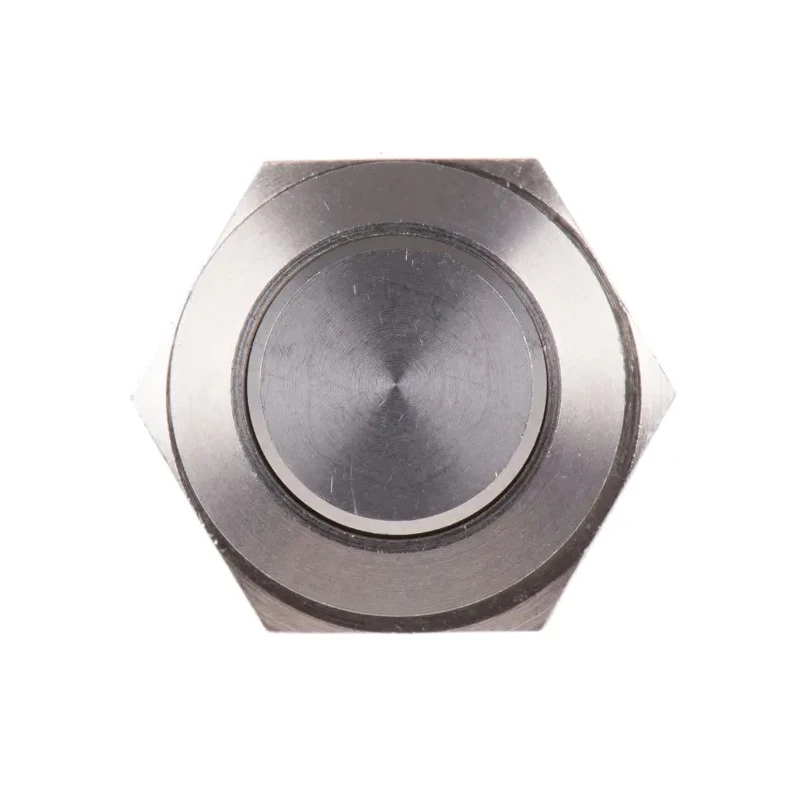

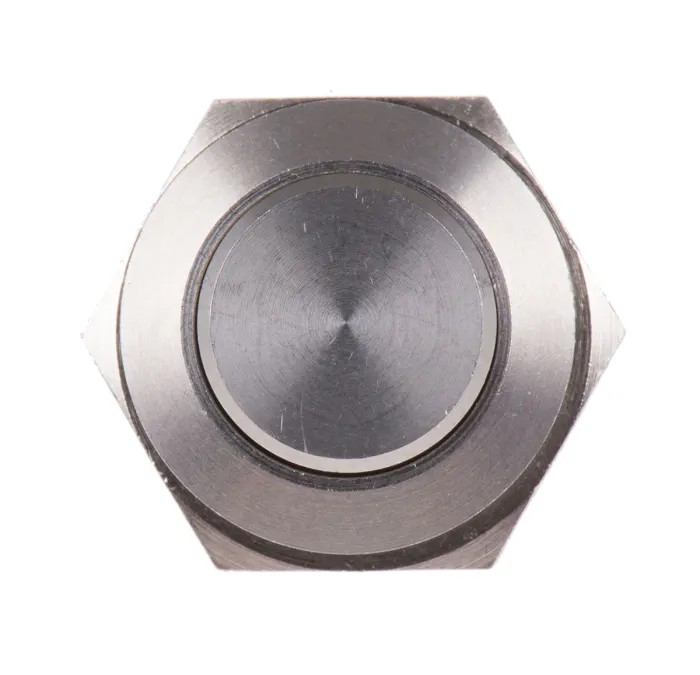

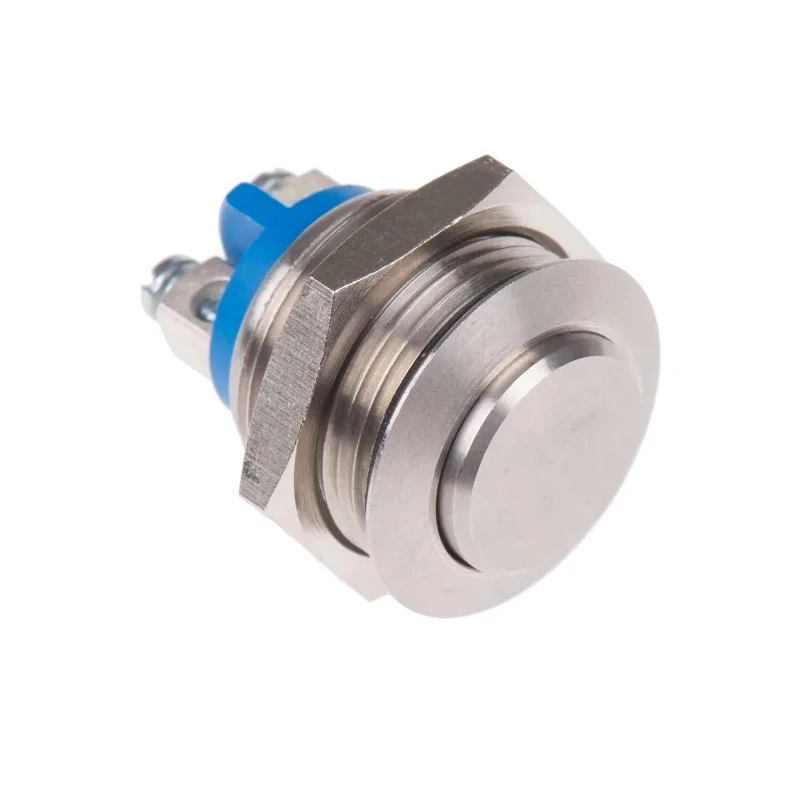

APEM AV Series Push Button Switch Momentary Panel 16.2 mm Cutout SPST IP65 48 V dc 250 V ac AV0630C940K
Specifications
| Country of Origin | India |
|---|---|
| Brand | APEM |
| Model | AV0630C940K |
| IP Rating | IP65 |
| Mount Type | Panel |
| Series | AV |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Switch Configuration | Latching, Momentary |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 16.2 mm |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 48V dc |
| Actuator Style | Round |
| Switch Contact Current | 200mA |
| Contact AC Voltage | 250V ac |
| Stock No | 225-599 is a vandal resistant push-button with a flat actuator |
Key Features
- The switch features a silver round actuator with flat design.
- It is designed for momentary operation with latching capabilities.
- Suitable for panel thickness from 1 to 6 mm.
- Offers a contact rating of 48 V dc and 250 V ac with a maximum current of 200mA.
- Constructed with stainless steel bushing and actuator to resist impact and jamming.
- Rated for operation in temperatures from -30°C to 70°C.
- IP65 sealing protects against water jets and dust ingress.
- Mechanical life expectancy of 1,000,000 cycles ensures durability in harsh environments.
Product Description
The APEM AV0630C940K is a highly durable, anti-vandal push button switch from the AV Series, designed for momentary use in industrial and commercial panel mounting applications. Featuring a 16.2 mm panel cutout size and a silver round actuator, this switch offers a reliable single pole single throw (SPST) contact configuration.
Its construction boasts a stainless steel bushing and actuator, providing robust resistance to impact, jamming, and harsh environmental conditions. The switch is sealed to an IP65 rating, ensuring protection against dust and water jets, making it ideal for demanding industrial, automation, and electrical control systems.
The electrical ratings include a contact voltage of 48 V dc and 250 V ac, suitable for low current control circuits up to 200 mA. Operating temperature ranges from -30°C to 70°C, supporting reliable performance under extreme conditions.
The AV0630C940K offers a mechanical life of up to 1,000,000 cycles, ensuring long-lasting service life. It is RoHS compliant, reflecting adherence to environmental and safety standards.
Applications include industrial machinery control panels, automation systems, electrical enclosures, and other settings where vandal resistance and durability are critical. Momentary operation with latching function for user-friendly control.
Silver round actuator with flat profile for ergonomic use. Panel mount with screw terminal connections for secure installation. IP65 rating for protection against dust ingress and water jets. Mechanical life rated at 1,000,000 cycles for longevity.
Operating temperature range suitable for diverse industrial environments. RoHS compliant for environmental safety.
Choose APEM AV Series Push Button Switches for reliable, rugged performance in challenging industrial environments. Browse EnvMart for more industrial automation and control components from APEM.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact configuration of this model is SPST (Single Pole Single Throw).
The maximum current rating for the APEM AV0630C940K is 200 mA.
This switch requires a panel cutout size of 16.2 mm for installation.
The APEM AV0630C940K has a contact voltage rating of 48 V dc and 250 V ac.
The operating temperature range for the switch is from -30°C to 70°C.
This model uses screw terminals for secure connections.
The switch has an IP65 rating, providing protection against dust and water jets.
The mechanical life expectancy of the APEM AV0630C940K is rated at 1,000,000 cycles.
The actuator style of this model is round, with a silver color and flat profile.
Yes, it is RoHS compliant, reflecting adherence to environmental and safety standards.
The APEM AV0630C940K features momentary operation with latching capabilities.
This switch is suitable for applications in industrial machinery control panels, automation systems, and electrical enclosures.
