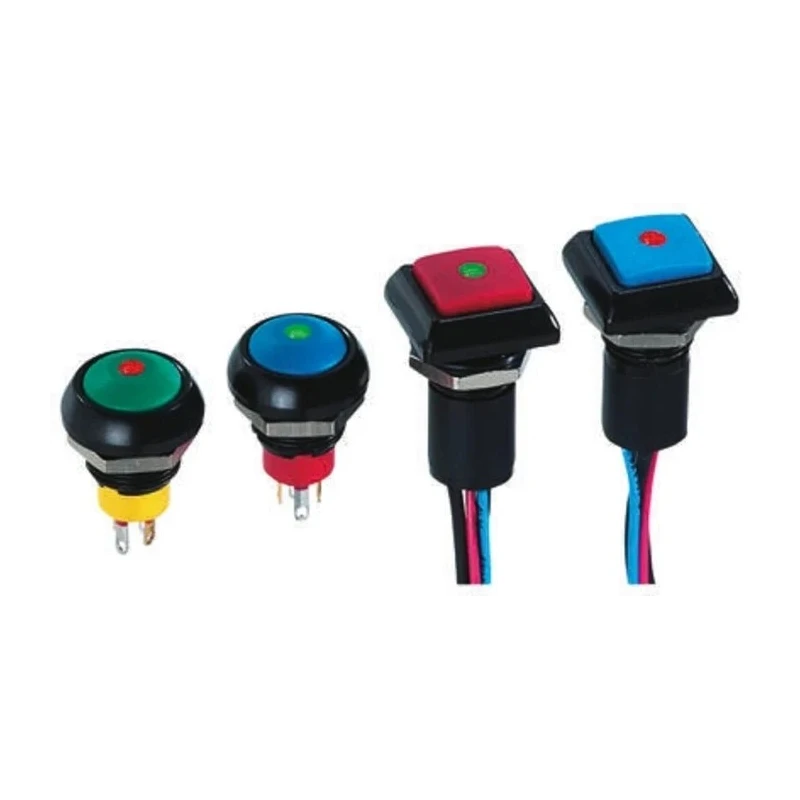

APEM IP Series Illuminated Momentary Push Button Switch, Panel Mount, 13.6 mm Cutout, SPST, Red LED, IP67, 28 V IPR3SAD1L0S
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 20mm |
| Model | IPR3SAD1L0S |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | IP |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | NC, NO, Off-On |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 13.6 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Switch Operation | Momentary |
| Actuator Colour | Blue |
| Contact DC Voltage | 28V dc |
| Actuator Style | Dome |
| Switch Contact Current | 5A |
Key Features
- This switch is panel mount with a dome actuator style in blue color.
- The switch operation is momentary with SPST (Single Pole Single Throw) configuration.
- The red LED illumination provides clear visual indication.
- It has an IP67 rating, ensuring protection against dust and water ingress.
- Suitable for harsh environments with operational temperatures ranging from -40°C to 85°C.
- Contact DC voltage rating is 28 V dc and switch contact current rating is 5 A AC.
- Terminal connections require soldering for installation.
- Compact height of 20 mm fits panel mounting requirements.
Product Description
The APEM IPR3SAD1L0S is a high-quality illuminated momentary push button switch designed for panel mounting applications requiring precise control and reliability. Featuring a 13.6 mm cutout diameter, this switch incorporates a blue dome actuator with a red LED illumination for clear visual feedback in both industrial and electrical automation settings.
Its Single Pole Single Throw (SPST) contact configuration facilitates simple On-Off switching with momentary action, suitable for control panels, machinery, and automation systems. The push button is rated IP67, ensuring robust protection against dust ingress and temporary water immersion, making it ideal for harsh or outdoor environment installations.
The switch withstands operational temperatures from -40°C up to 85°C, allowing it to perform reliably in extreme temperature conditions. It supports a maximum contact DC voltage of 28 V dc and an AC contact current rating of 5 A.
This product features solder terminal connections for secure electrical contacts and a compact 20 mm height to fit within limited panel space requirements. It complies with RoHS environmental standards, minimizing hazardous substances in manufacturing.
Manufactured in France under strict IEC 512-4 and IEC-512-6 standards, the IPR3SAD1L0S switch is suited for diverse industrial, commercial electrical, and automation applications demanding durability and accurate momentary switching.
Panel mount illuminated momentary Push Button Switch. Blue dome actuator with red LED indicator. IP67 rated for dust and water resistance. Suitable for harsh environments and industrial use. Operating temperature range from -40°C to 85°C.
Single Pole Single Throw (SPST) contact configuration. Contact DC voltage 28 V dc with 5 A contact current. RoHS compliant and IEC certified manufacture. Solder terminal connections for installation. Compact size with 13.6 mm cutout diameter and 20 mm height.
Explore more switches and electrical components in the Electronics & Electricals category at EnvMart for your automation and control panel needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 85°C.
This switch has an IP67 rating, providing protection against dust and temporary water immersion.
The switch features a Single Pole Single Throw (SPST) contact configuration.
The required panel cutout size for this model is 13.6 mm.
It uses solder terminal connections for installation.
The contact DC voltage rating is 28 V dc.
The height of this switch is 20 mm.
The illumination LED color is red.
The minimum operating temperature is -40°C.
The actuator style is a dome type.
Yes, it complies with RoHS environmental standards.
It is manufactured in France.
