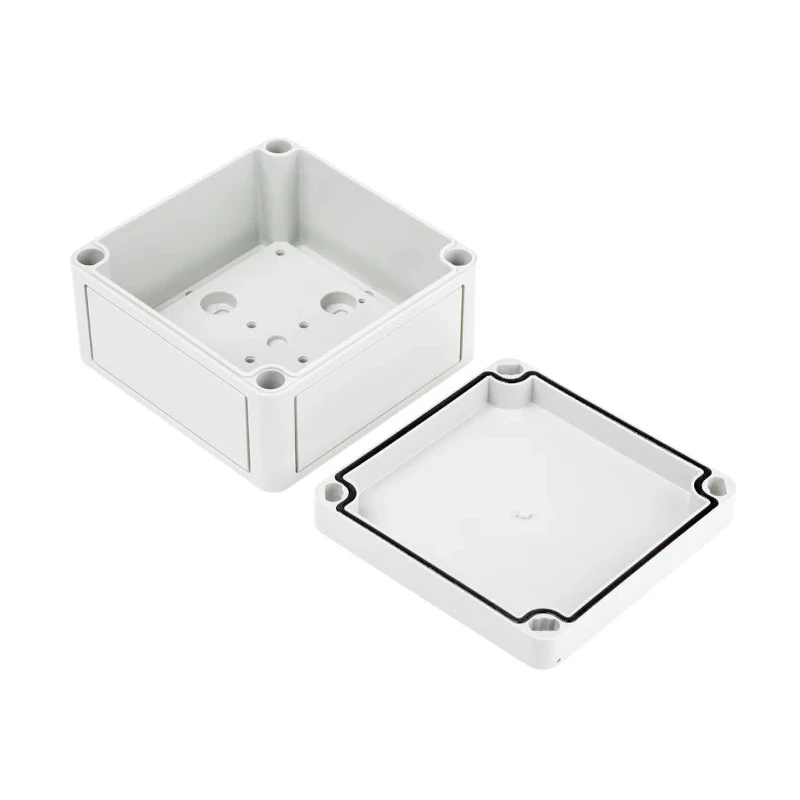

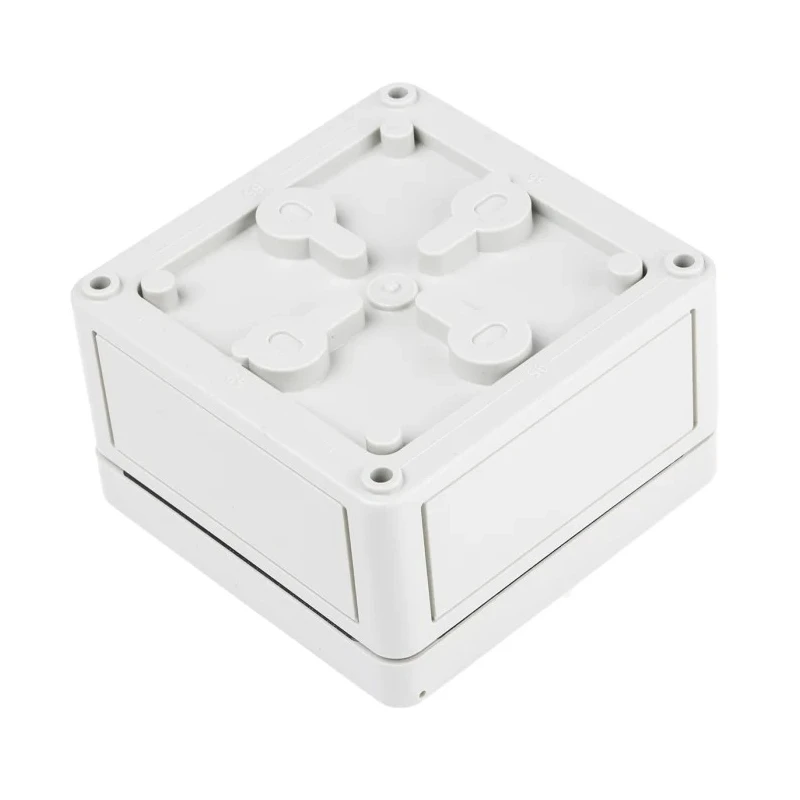

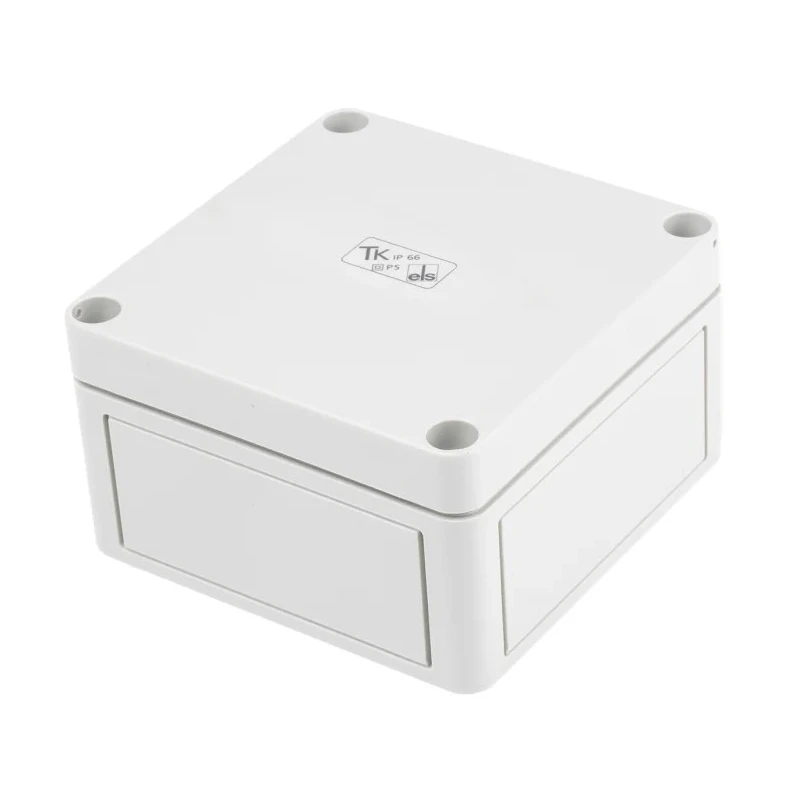

Spelsberg TK PS Series Grey Polystyrene Enclosure 66 mm x 110 mm x 110 mm, IP66, IK07 Impact Resistant 11040401
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Spelsberg |
| Colour | Grey |
| Body Material | Polystyrene |
| Model | 11040401 |
| IP Rating | IP66 |
| Series | TK PS |
| External Width | 110mm |
| External Height | 66mm |
| Shielding | Unshielded |
| Flammability Rating | VDE 0471, UL94, 650 °C / HB |
| External Length | 110mm |
| IK Rating | IK07 |
| Gasket Material | Polyurethane |
Key Features
- The enclosure body and lid are made of durable grey polystyrene material rated for indoor electrical use.
- It features IP66 ingress protection to guard against dust and water jets.
- Impact resistance is assured by an IK07 rating for mechanical shocks.
- Equipped with polyurethane sealing gasket and polyamide 6 fibre glass reinforced cover screws.
- The enclosure has no pre-embossed knockouts or cable entries, making it customizable for specific applications.
- Operating temperature range is -25 to +40 °C suitable for various industrial environments.
- Flammability rating complies with VDE 0471, UL94 standards for safety.
- The enclosure is designed for wall or surface mounting with sealing plugs included for knockout holes.
Product Description
Spelsberg 11040401 TK PS Series Grey Polystyrene Enclosure features a robust polystyrene base and cover with a grey (RAL 7035) finish. It provides rated insulation voltage up to AC 690 V and DC 1000 V with a sealable design for secure protection in indoor electrical installations.
This enclosure is compliant with multiple international safety standards including VDE 0471, UL94, EN 60529 (IP66), and DIN EN 5012 (IK07). Its polyurethane gasket ensures excellent sealing to prevent ingress of dust and water jets, making it suitable for demanding industrial environments such as electrical automation, control panels, and instrumentation housing.
Although it is not recommended for outdoor weather-proof use due to its polystyrene construction, it offers superior resistance to acids, alkalis, corrosion, and mechanical knocks compared to common plastic alternatives.
The TK PS Series enclosure allows for easy wall mounting using through holes located below lid fixing screws. Surface mounting is possible by using the knockouts in the base, with sealing plugs provided to maintain ingress protection when not used.
The enclosure provides a non-transparent grey lid as standard and does not have a transparent door option in this model. Polyamide 6 fibre glass reinforced cover screws enhance durability and corrosion resistance. The product is halogen free, reducing toxic fume risks in case of fire.
Its compact size of 66 mm (H) x 110 mm (W) x 110 mm (L) makes it ideal for housing electrical and electronic components in confined spaces. It supports a wide temperature range allowing use in industrial, laboratory, and manufacturing applications.
This product is manufactured in Germany and is provided new with relevant certifications such as cULus and CE to ensure quality and compliance. Explore a wide range of Electrical Enclosures including the Spelsberg TK PS Series on EnvMart for reliable industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The enclosure measures 66 mm in height, 110 mm in width, and 110 mm in length.
It has an IP66 ingress protection rating, which guards against dust and water jets.
This enclosure has an IK07 impact resistance rating, indicating it can withstand mechanical shocks.
The enclosure body and lid are made of grey polystyrene, and it features a polyurethane sealing gasket.
It operates within a temperature range of -25 to +40 °C, suitable for various industrial environments.
No, it is not recommended for outdoor weather-proof use due to its polystyrene construction.
It complies with multiple international safety standards including VDE 0471, UL94, and EN 60529.
It is designed for wall or surface mounting, with sealing plugs included for knockout holes.
The flammability rating complies with VDE 0471 and UL94 standards, rated at 650 °C / HB.
No, the enclosure has no pre-embossed knockouts or cable entries, allowing for customization for specific applications.
It is equipped with polyamide 6 fibre glass reinforced cover screws, enhancing durability and corrosion resistance.
This product is manufactured in Germany.
