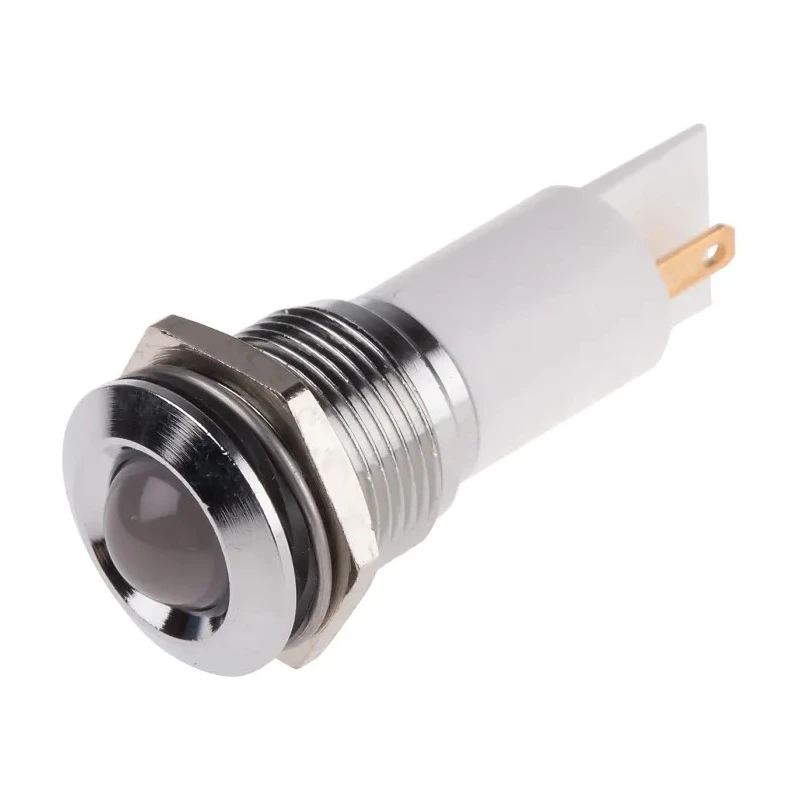

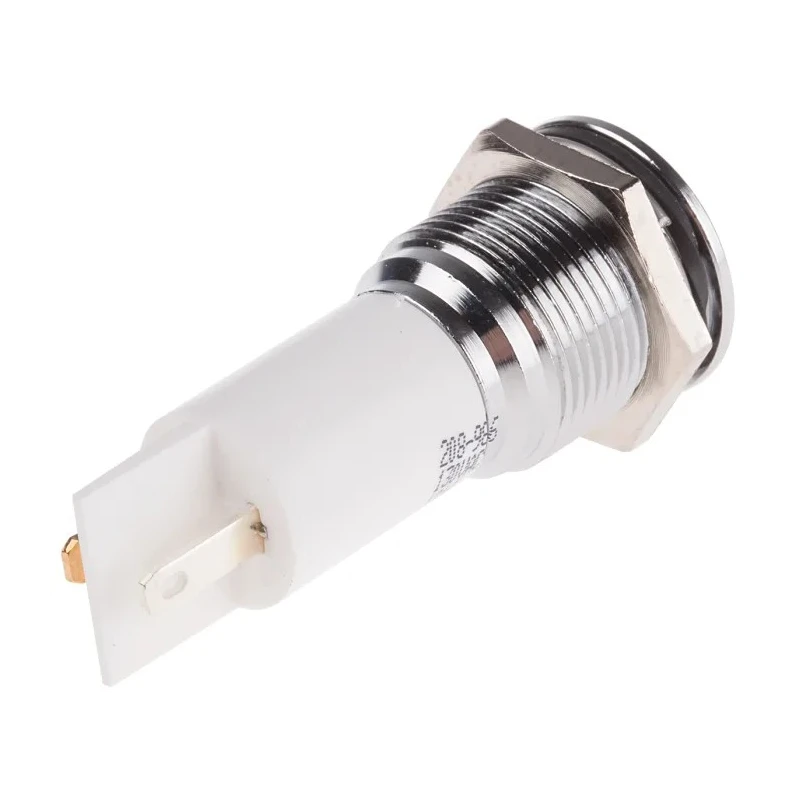

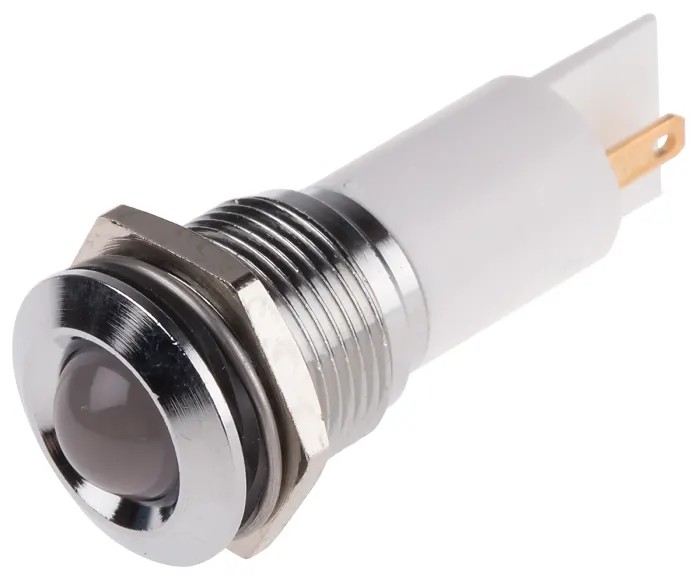

RS PRO White Panel Mount Indicator LED, 130V AC, 6mA, Solder Tab Termination, Prominent Chrome Bezel 208-986
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 130V ac |
| Brand | RS PRO |
| Current | 6mA |
| Operating Temperature Range | -25 to +60°C |
| Length | 62.5mm |
| Model | 208-986 |
| Termination Type | Solder Tab |
| Light Output Colour | White |
| Bezel Style | Prominent |
| Bezel Colour | Silver |
| Mount Hole Size | 16 mm |
| Life Expectancy | 100000 Hours |
| LED,indicator,16mm mount,roundBrand | NEUTRAL |
Key Features
- The indicator features a 10mm white diffused round LED lens for clear illumination.
- Operates at 130V AC with a low current consumption of 6mA.
- Equipped with solder tab termination for easy and secure installation.
- The prominent silver bezel adds durability and enhances panel aesthetics.
- Sealed to IP67, protecting against dust and water ingress.
- Compact size with a 62.5mm length and 16mm mount hole diameter.
- Designed to withstand an operating temperature range from -25 to +60°C.
- Long life expectancy of 100,000 operating hours ensures reliable performance.
Product Description
RS PRO 208-986 White Panel Mount Indicator LED is engineered for industrial and commercial electrical panel applications requiring effective visual status signaling.
This LED indicator incorporates a 10mm diffused white lens recessed within a chrome prominent bezel, providing both durability and enhanced visibility. It is designed to operate at 130V AC with a minimal current draw of 6mA, ensuring energy efficiency.
The indicator's compact and robust body is finished with a silver bezel and features solder tab termination for straightforward and reliable panel installation. It is sealed to an IP67 standard, offering excellent protection against dust and water, making it suitable for harsh industrial environments.
The device supports an operating temperature range of -25 to +60°C, suitable for various climatic conditions. The LED has a rated life expectancy of 100,000 hours, guaranteeing long-term operational reliability. The product package includes essential mounting accessories such as a pin protection tube, fixing nut, washer, and gasket.
The indicator’s 10mm white diffused LED lens ensures clear and bright light output. Operates efficiently at low current consumption of 6mA. Durable construction with a prominent chrome bezel enhances panel design. Mounts easily via solder tab termination.
Protected at IP67 rating for water and dust resistance. Compact 62.5mm length and 16mm mount hole size fit standard panels. Wide operating temperature range from -25 to +60°C. Expected LED life exceeds 100,000 hours for extended use.
Complete mounting kit provided for secure installation.
This panel mount LED indicator is ideal for use in industrial machines, instrumentation panels, HVAC systems, and electrical distribution boards where clear visual indication and reliability are critical.
Browse EnvMart’s Electronics Components category for a comprehensive range of Panel Mount Indicators and other electronic signalling devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a voltage of 130V AC.
The current consumption is 6mA, ensuring energy efficiency during operation.
It can operate within a temperature range of -25 to +60°C.
The mount hole size required is 16mm.
The overall length of this indicator is 62.5mm.
It features solder tab termination for easy and secure installation.
The LED has a life expectancy of 100,000 hours, ensuring long-term reliability.
It provides a white light output, ensuring clear visibility.
It is sealed to an IP67 rating, providing protection against dust and water ingress.
The package includes a pin protection tube, fixing nut, washer, and gasket for secure installation.
The bezel style is prominent and the color is silver, enhancing durability and aesthetics.
It is suitable for use in industrial machines, instrumentation panels, HVAC systems, and electrical distribution boards.
