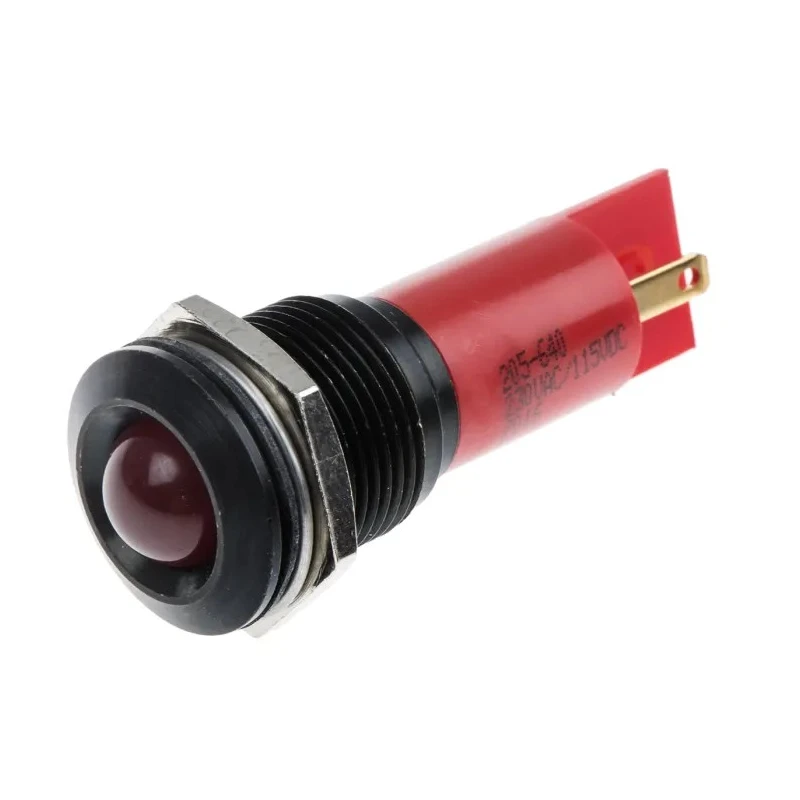

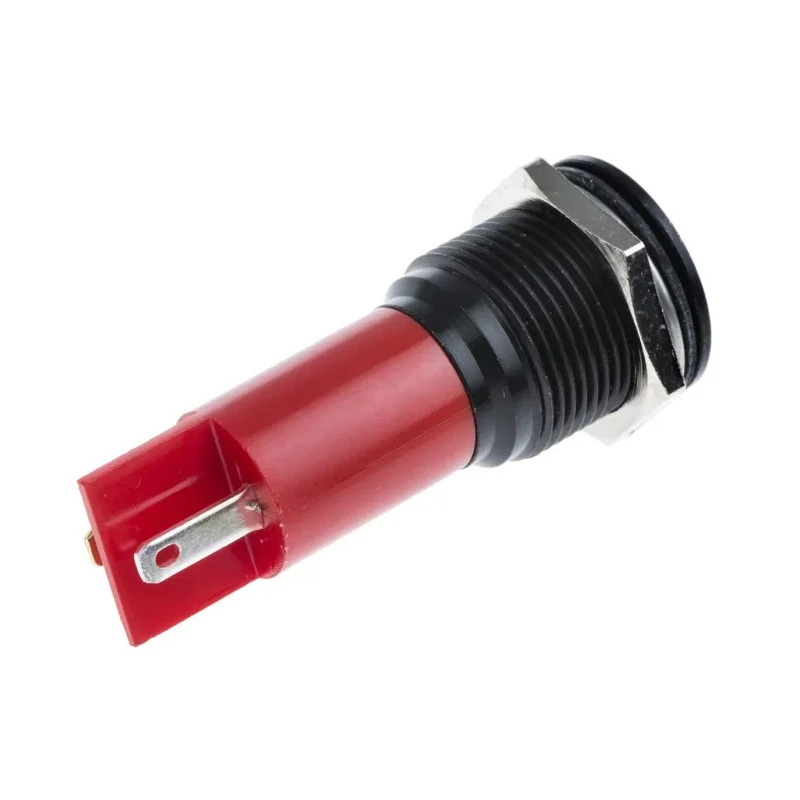

RS PRO Red Panel Mount Indicator 230 V AC, 115 V DC, 3mA, Solder Tab Termination, Prominent Bezel 205-640

RS PRO 205-640 Red Panel Mount Indicator is designed for reliable signaling in industrial and electronic applications requiring 230 V AC or 115 V DC input voltage, operating at a low current of 3mA. This panel mount LED indicator features a robust and compact design, making it ideal for control panels, machinery, and electronic equipment interfaces.

The indicator uses a 10mm diffused red LED lens set within an 18.3mm chrome bezel, providing prominent visibility and enhanced aesthetics. The chrome bezel style is prominent, aiding easy identification even from a distance. The device is sealed to IP67 standard, offering excellent protection against dust, water, and environmental contaminants, thereby enabling usage in harsh conditions.

Its durable LED technology ensures a long operational life of approximately 100,000 hours, minimizing the need for frequent replacements and associated downtime. The operating temperature range is wide, from -25 to +60 degrees Celsius, accommodating various industrial and laboratory environments.

The indicator terminates via solder tabs sized 2.8 x 0.8mm for sturdy electrical connection and ease of installation. The package includes essential mounting accessories such as pin protection tube, fixing nut, washer, and gasket ensuring a secure panel installation with a standard 16mm mounting hole.

Common applications include usage in electrical distribution panels, industrial automation systems, machinery status indication, and control consoles, making it a versatile and reliable component in diverse sectors including manufacturing, HVAC, and laboratory instrumentation.

Features a 10mm coloured diffused red round lens for clear indication. Equipped with an 18.3mm prominent chrome bezel providing sturdy mounting and visibility. Sealed to IP67 rating ensuring protection against dust and water ingress.

Long life LED with life expectancy of 100,000 hours reducing maintenance needs. Compact robust body measuring 62.5mm length with 16mm mounting hole size. Operating temperature range from -25 to +60°C suitable for varied industrial environments.

Convenient solder tab termination for efficient and reliable installation. Supplied with pin protection tube, fixing nut, washer, and gasket for secure assembly.

This RS PRO indicator is a high-quality choice for panel-mounted signaling requiring durability and clear visibility, compliant with demanding industrial standards. Explore similar products and additional accessories in the Panel Mount Indicators category on EnvMart.
