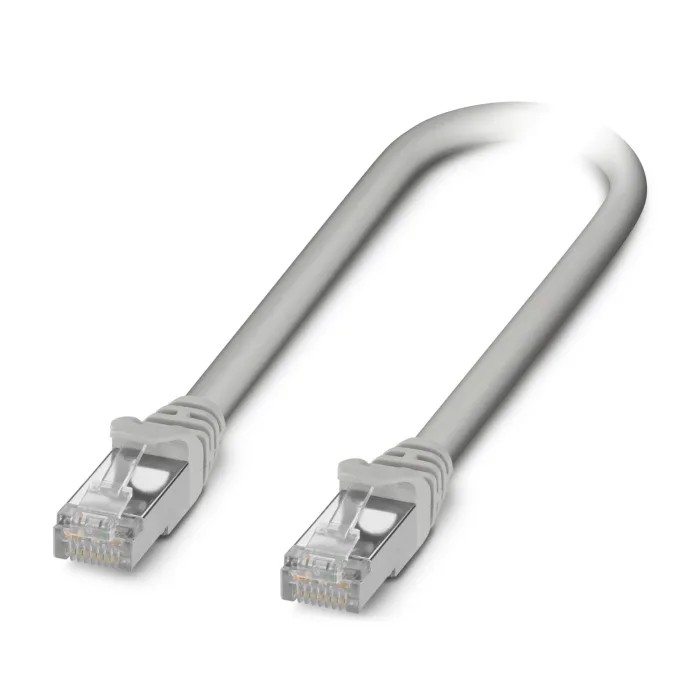

Phoenix Contact Cat5 Ethernet Cable 8 Core, Grey, 2 m, S/UTP Screened, Low Smoke Zero Halogen Cat5

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact Cat5 Ethernet Cable 8 Core, Grey, 2 m, S/UTP Screened, Low Smoke Zero Halogen Cat5

Name: Phoenix Contact Cat5 Ethernet Cable 8 Core, Grey, 2 m, S/UTP Screened, Low Smoke Zero Halogen Cat5
Brand: PHOENIX CONTACT
SKU: 114643
Price: 24.31 USD
Availability: InStock



Category Ethernet Cable Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	China
Voltage	72V
Brand	Phoenix Contact
CROSS SECTIONAL AREA	26 AWG
Model	Cat5
Cable Length	2m
Outside diameter	5.7mm
Maximum Operating Temperature	80°C
Number Of Cores	8
Conductor Material	Bare Copper
Sub Type	Cat5 Cable
Minimum Operating Temperature	-20°C
Jacket Material	Low Smoke Zero Halogen
Shield Type	S/UTP
Standards/Approvals	UL / cUL / EAC / cULus
Jacket Colour	Grey
Fire Behaviour	IEC 60332-1-2
Screened/Unscreened	Screened
LAN Category	Cat5

Key Features

The cable features S/UTP screened shielding to reduce electromagnetic interference.
The jacket material is low smoke zero halogen for enhanced safety in confined spaces.
Designed for Cat5 LAN category supporting transmission speeds up to 1 Gbps.
It operates reliably in temperatures ranging from -20°C to 80°C.
The conductor material is bare copper with a cross-sectional area of 26 AWG.
The cable diameter measures 5.7 mm, ensuring robust physical stability.
It complies with IEC 60332-1-2 fire behaviour standards.
Certified to UL, cUL, EAC, and cULus standards for international compliance.

Product Description

Phoenix Contact Cat5 Ethernet Cable Cat5 is a high-quality 8 core ethernet cable measuring 2 meters in length with a grey low smoke zero halogen jacket, designed to provide reliable and safe network connections in industrial, commercial, and home networking environments.

This S/UTP screened cable reduces electromagnetic interference, ensuring stable and high-speed data transmission up to 1 Gbps. The bare copper conductors with a 26 AWG cross-sectional area offer excellent conductivity and durability.

The cable outer diameter is 5.7 mm, providing mechanical protection and flexibility for installation in tight networking spaces. It is rated for a voltage of 72V and operates within a wide temperature range from -20°C to 80°C, making it suitable for various ambient conditions.

Compliance with IEC 60332-1-2 fire behaviour standards and certifications including UL, cUL, EAC, and cULus ensure safety and quality for industrial, office, and laboratory use. The low smoke zero halogen jacket improves fire safety by minimizing toxic fumes and smoke emissions.

This ethernet cable is ideal for networking, telecommunications, industrial automation, data centers, and general data transmission applications. The cable features S/UTP screened shielding to reduce electromagnetic interference.

The jacket material is low smoke zero halogen for enhanced safety in confined spaces. Designed for Cat5 LAN category supporting transmission speeds up to 1 Gbps. It operates reliably in temperatures ranging from -20°C to 80°C.

The conductor material is bare copper with a cross-sectional area of 26 AWG. The cable diameter measures 5.7 mm, ensuring robust physical stability. It complies with IEC 60332-1-2 fire behaviour standards. Certified to UL, cUL, EAC, and cULus standards for international compliance.

The cable has a rated voltage of 72V suitable for typical ethernet applications. For additional networking and cabling solutions, browse the Ethernet Cable category on EnvMart.
