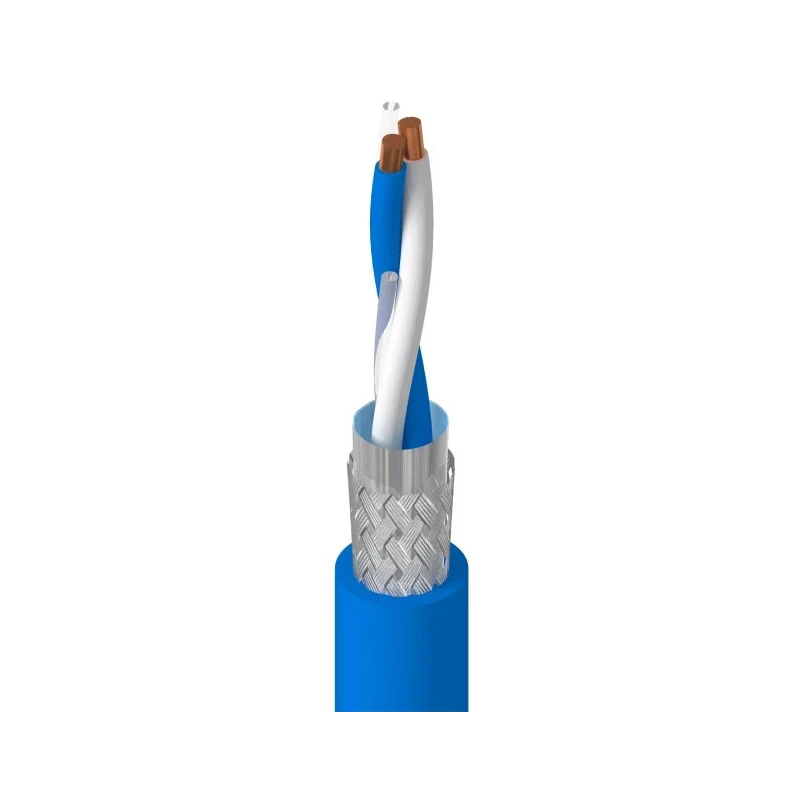

Belden Ethernet Cable 500 m Screened Low Smoke Zero Halogen Blue 300V 74031NH-C500
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 300V |
| Brand | Belden |
| CROSS SECTIONAL AREA | 0.65 mm² |
| Model | 74031NH-C500 |
| Cable Length | 500m |
| Series | 74031NH |
| Outside diameter | 5.1mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 2 |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Low Smoke Zero Halogen |
| Standards/Approvals | UL, ISO, RoHS, IEC |
| Jacket Colour | Blue |
| Fire Behaviour | Flame Retardant |
| Screened/Unscreened | Screened |
| Conductor Type | Solid |
Key Features
- Compliant with Category 5e TIA 568-C.2 standards.
- Features screened construction for enhanced signal integrity.
- Jacket made of low smoke zero halogen material for safety in confined spaces.
- Solid bare copper conductor with 0.65 mm² cross sectional area.
- Operating temperature range from -30°C to 80°C.
- Fire behaviour rated as flame retardant meeting UL, ISO, RoHS, and IEC standards.
- Cable outer diameter is 5.1 mm with two cores for data transmission.
Product Description
Belden 74031NH-C500 Ethernet Cable is a 500 meter long screened industrial cable with a blue low smoke zero halogen jacket, rated for 300 V operation. It addresses the need for reliable Ethernet connectivity in harsh environments requiring compliance with Category 5e standards set by TIA 568-C.2.
The cable features solid bare copper conductors with a 0.65 mm² cross sectional area and two cores designed for sensor and industrial Ethernet data transmission at frequencies up to 20 MHz. Its jacket material is flame retardant and low smoke zero halogen, ensuring safety by reducing smoke and toxic gas emission in confined or industrial spaces.
Operating safely between -30°C and 80°C, this cable is suitable for use in industrial edge and long distance sensor networks under demanding conditions. It meets multiple certifications including UL, ISO, RoHS, and IEC, reinforcing its suitability for industrial and manufacturing environments requiring durable and compliant networking cabling.
Compliant with Category 5e TIA 568-C.2 standards. Screened cable construction enhances signal performance. Low smoke zero halogen jacket enhances safety in fire situations. Bare copper solid conductor ensures low resistance and reliable conductivity.
Wide temperature operating range for harsh environments. Flame retardant jacket suitable for industrial installations. Voltage rating of 300 V for industrial usage. Blue jacket provides visual identification and organizational convenience.
This Belden Ethernet cable is ideal for industrial, manufacturing, automation, and instrumentation applications requiring reliable data transmission. It combines safety features with robust electrical properties for use in challenging networking environments.
Explore complete Ethernet Cable selections and industrial networking products at EnvMart for superior cable quality and technical support.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this Ethernet cable is 80°C.
This cable complies with Category 5e standards set by TIA 568-C.2 and meets multiple certifications including UL, ISO, RoHS, and IEC.
The outer diameter of the cable is 5.1 mm.
This model uses solid bare copper conductors.
The cable length is 500 meters.
The voltage rating of this cable is 300V.
The minimum operating temperature for this cable is -30°C.
The low smoke zero halogen jacket enhances safety by reducing smoke and toxic gas emissions in confined spaces during fire situations.
This Ethernet cable has two cores.
This cable is suitable for industrial, manufacturing, automation, and instrumentation applications requiring reliable data transmission.
This model features a screened cable construction for enhanced signal integrity.
The cable is rated as flame retardant, ensuring safety in industrial installations.
