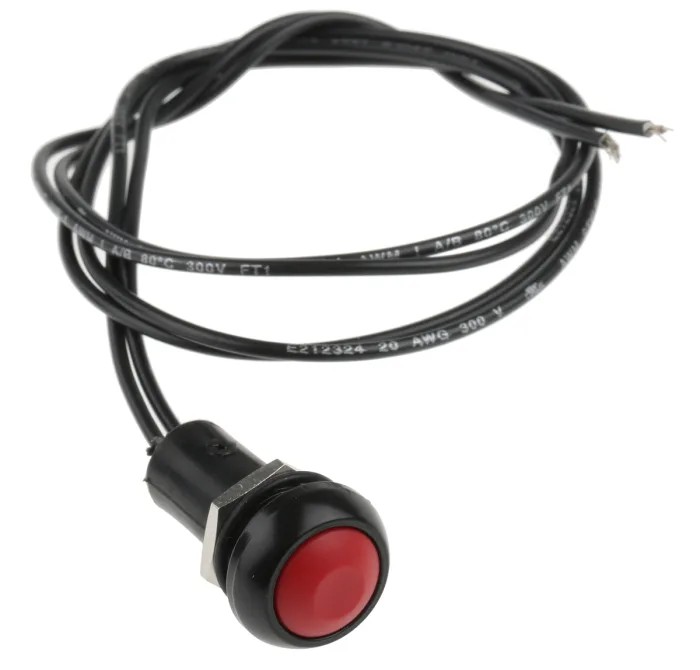

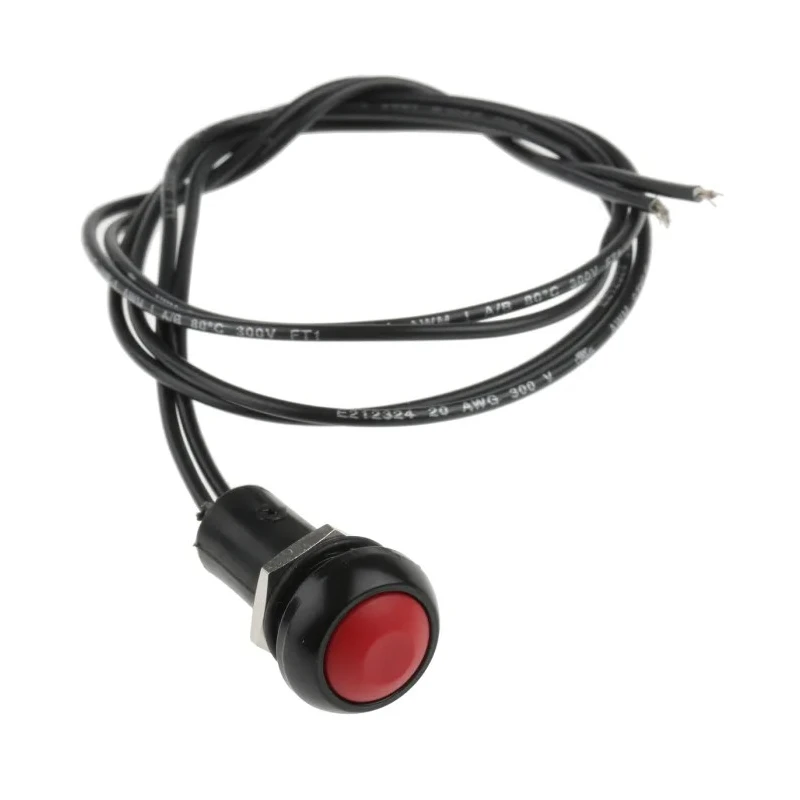

APEM IP Series Panel Mount Momentary Push Button Switch, 13.6 mm Cutout, SPST, IP67, 50 V dc 250 V ac, Model IPR3FAD-6
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 16mm |
| Model | IPR3FAD-6 |
| IP Rating | IP67 |
| Width | 17.5mm |
| Mount Type | Panel |
| Series | IP |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPST |
| Switch Configuration | NO, NC |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 13.6 mm |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Contact DC Voltage | 50V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 250V ac |
| Very robust | IK06 |
Key Features
- The switch has a 13.6 mm panel cutout for mounting.
- Single Pole Single Throw (SPST) contact configuration with NO and NC switch options.
- Operates reliably at 50 V dc and 250 V ac voltages.
- Features robust construction with IK06 impact resistance and salt spray protection.
- Designed for temperatures ranging from -40°C to 125°C.
- Terminal type is through hole providing secure connections.
- Compact dimensions of 17.5 mm width and 16 mm height for space-saving installation.
- Complies with RoHS standards and is manufactured in France.
Product Description
APEM IPR3FAD-6 is a sealed momentary push button switch designed for panel mounting in industrial and harsh environment applications. Featuring a compact 13.6 mm cutout, this switch offers IP67 ingress protection ensuring robust sealing against dust and water ingress. It provides Single Pole Single Throw (SPST) contact configuration with normally open (NO) and normally closed (NC) options to suit various circuit requirements.
This push button switch supports a contact voltage of 50 V dc and 250 V ac, suitable for low voltage control panels and automation systems. The switch has a robust IK06 impact rating protecting it against mechanical shocks. It operates across a wide temperature range from -40°C up to 125°C, making it suitable for environmental stress in industrial automation, electrical panels, and machinery control applications.
The terminal type uses through-hole mounting to ensure a secure electrical connection. Its compact dimensions of 17.5 mm width and 16 mm height allow space-efficient panel installation. Designed and manufactured in France, the product complies with RoHS standards, preventing hazardous substances in electrical equipment.
The switch is IP67 rated for dust tight and waterproof performance. Momentary operation with tactile feedback enhances user control. Compatible with industrial automation, electrical control panels and machinery interface use cases.
Robust construction resists salt spray corrosion and mechanical impacts. Compliant with EN 50102, IEC 512-4, and IEC 512-6 standards. Compact form factor with reliable electrical ratings.
APEM offers a wide range of Push Button Switches following the IP Series for demanding industrial environments. This model IPR3FAD-6 is ideal for equipment requiring secure and resilient user interface switches. Browse other APEM switches and electrical components at EnvMart for comprehensive industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Single Throw (SPST) contact configuration with options for normally open (NO) and normally closed (NC) switching.
The switch has an IP67 ingress protection rating, ensuring it is dust tight and protected against water immersion.
It operates within a temperature range of -40°C to 125°C, making it suitable for various industrial environments.
The switch has compact dimensions of 17.5 mm in width and 16 mm in height, designed for space-efficient panel installation.
It supports a contact voltage of 50 V dc and 250 V ac, suitable for low voltage control applications.
This model uses through-hole mounting, providing secure electrical connections during installation.
It has an IK06 impact resistance rating, which protects it against mechanical shocks.
The switch complies with RoHS standards, ensuring it does not contain hazardous substances, and is also compliant with EN 50102, IEC 512-4, and IEC 512-6 standards.
It features momentary operation with tactile feedback, enhancing user control during use.
This switch is manufactured in France, ensuring adherence to quality standards.
It is suitable for industrial automation, electrical control panels, and machinery interface applications due to its robust design and specifications.
The required panel cutout size for this switch is 13.6 mm, facilitating proper mounting in panels.
