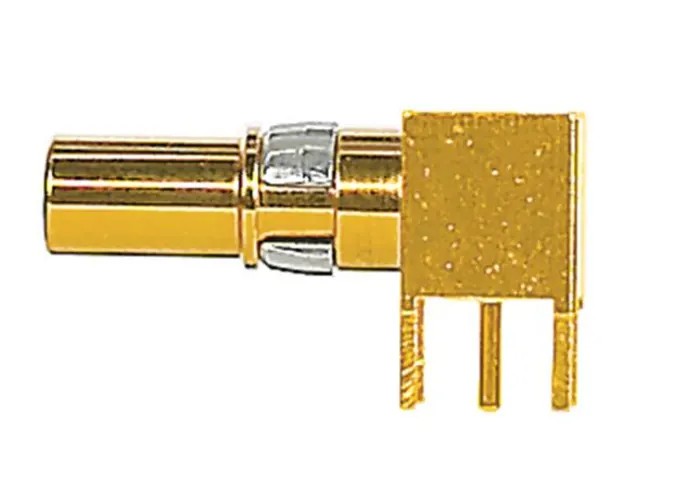

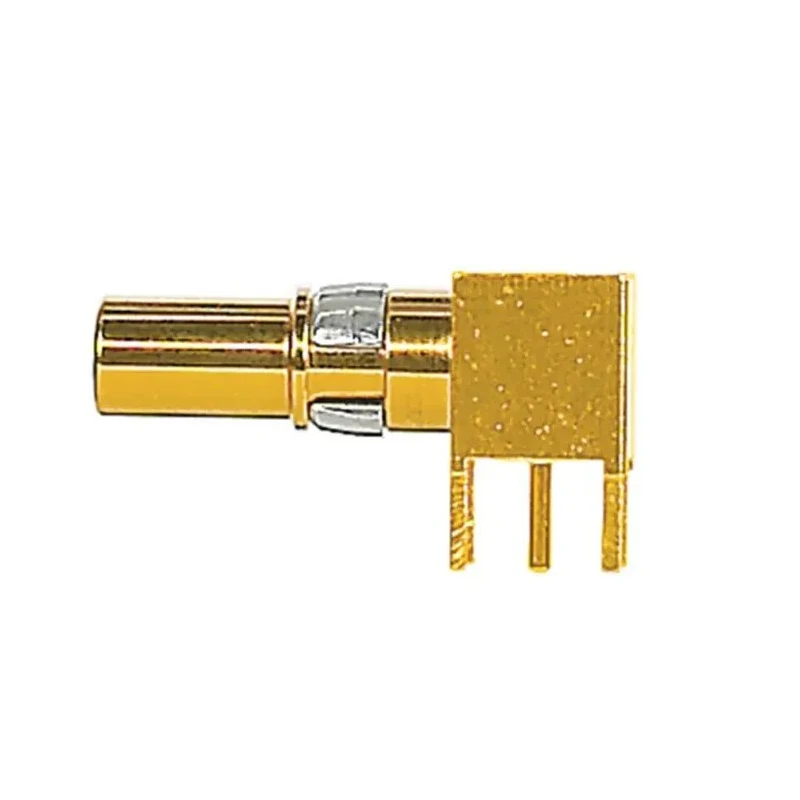

HARTING Backplane Connector Contact DIN 41612 Series, Angled Female Copper Alloy Contact, Solder Termination 09030006269
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Orientation | Angled |
| Current | 1.5A |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | DIN 41612 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| For Use With | DIN 41612 Type MH 21+5, DIN 41612 Type M, DIN 41612 Bauform M 0+2, Har-modular M Module |
| Contact Plating | Copper |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Constructed from durable copper alloy material for high conductivity.
- Angled female contact design ensures secure mating within DIN 41612 connectors.
- Suitable for DIN 41612 Type MH 21+5, Type M, Bauform M 0+2, and Har-modular M Modules.
- Operates reliably in temperatures from -55°C to 125°C.
- Maximum operating current of 1.5 A suitable for backplane applications.
- Copper plating reduces contact resistance to a maximum of 10 milliohms.
- Solder termination type provides robust electrical and mechanical connection.
- Made in Germany ensuring high manufacturing standards and product quality.
Product Description
HARTING 09030006269 Backplane Connector Contact from the DIN 41612 series is an angled female contact designed for use in backplane and rack connector systems. Featuring copper alloy material and copper plating, this contact ensures excellent electrical conductivity and durability. Its solder termination type provides a secure mechanical and electrical connection suitable for industrial, electronic, and communication applications.
The contact supports DIN 41612 Type MH 21+5, DIN 41612 Type M, Bauform M 0+2, and Har-modular M Modules, making it versatile for various electronic component assemblies. It has a maximum continuous current rating of 1.5 A and an operating temperature range from -55°C to 125°C, ensuring performance in harsh environments.
The copper plating provides low contact resistance, not exceeding 10 milliohms, which contributes to reliable signal transmission and minimized power loss.
Manufactured in Germany, the product meets strict quality standards assuring long-term reliability and adherence to industrial requirements. This component is ideal for use in electronic manufacturing, telecommunications, data centers, and control panel assemblies.
Constructed from copper alloy material for enhanced conductivity and durability. Angled female contact design supports stable mechanical and electrical connection. Compatible with multiple DIN 41612 connector types and module configurations.
Operating temperature range from -55°C to 125°C for wide environmental tolerance. Maximum contact resistance limited to 10 milliohms ensures efficient electrical performance.
This HARTING connector contact is an essential component for backplane connector systems, widely used in industrial electronics and communications. Explore the complete range of backplane connector contacts for tailored solutions at EnvMart.
Explore more products in our Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating current for this contact is 1.5 A, making it suitable for backplane applications.
It operates reliably within a temperature range of -55°C to 125°C, allowing for use in various environmental conditions.
This contact is constructed from copper alloy material, which provides high conductivity and durability.
It is compatible with DIN 41612 Type MH 21+5, Type M, Bauform M 0+2, and Har-modular M Modules.
This model features a solder termination type, providing a robust electrical and mechanical connection.
The maximum contact resistance is limited to 10 milliohms, ensuring efficient electrical performance.
It is manufactured in Germany, adhering to strict quality standards.
The copper plating reduces contact resistance to a maximum of 10 milliohms, contributing to reliable signal transmission.
The contact is designed for solder termination, requiring appropriate soldering techniques for installation.
This contact belongs to the DIN 41612 series, which is commonly used in backplane and rack connector systems.
