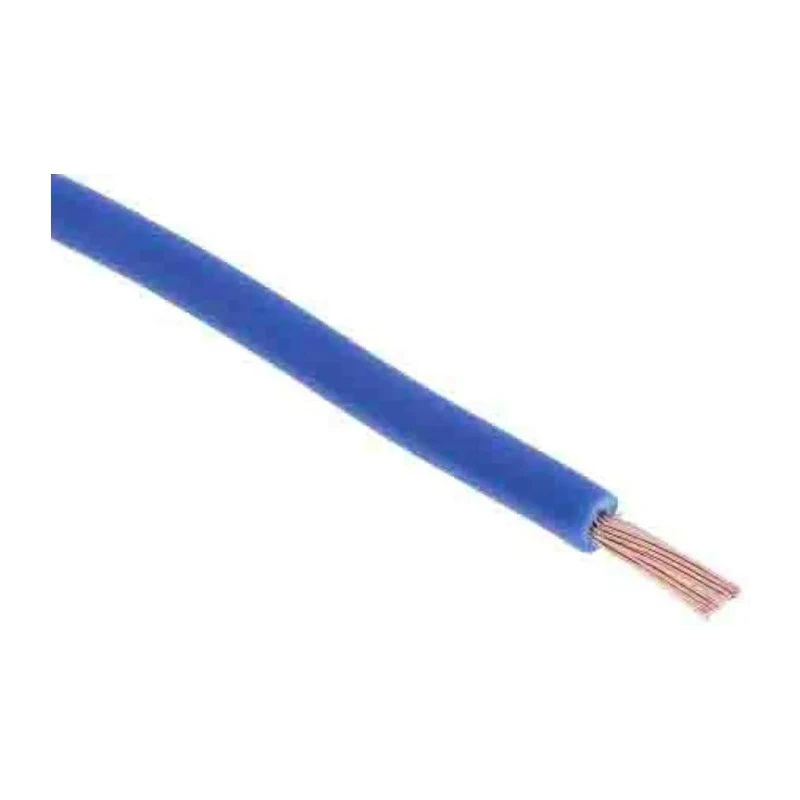

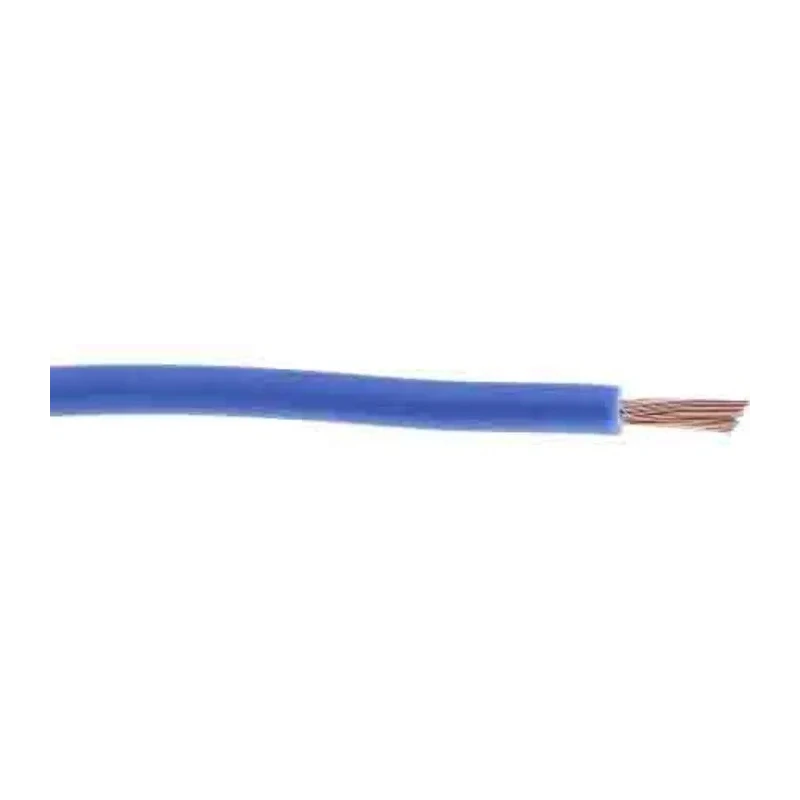

RS PRO Tri-Rated Series Blue Hook Up Wire 16 AWG, 1.5 mm², 305 m, 1 kV dc, Flame Retardant PVC Jacket 225-2151
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 1kV dc |
| Brand | RS PRO |
| CROSS SECTIONAL AREA | 1.5 mm² |
| Model | 225-2151 |
| Cable Length | 305m |
| Current Rating | 21 A |
| Series | Tri-Rated |
| Outside diameter | 3.3mm |
| Maximum Operating Temperature | 105°C |
| Conductor Material | Annealed Copper |
| Cable Type | Circular |
| Voltage Rating | 1 kV dc, 600 V ac |
| Minimum Operating Temperature | -20°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | BS 6231 |
| Jacket Colour | Blue |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 16AWG |
| Number of Strands | 30 |
| Core Strands | 30 x 0.2mm |
| Size of Strands | 0.2mm |
| Sheath Colour | Blue |
Key Features
- The conductor is made from flexible annealed copper strands, ensuring excellent conductivity and flexibility.
- The blue PVC jacket provides flame retardant protection compliant with BS EN 50265 standards.
- This wire is rated for a maximum operating temperature of 105°C and voltage up to 1 kV dc and 600 V ac.
- The wire strand count is 30 strands of 0.2 mm size each, providing strength and flexibility.
- It is suitable for industrial and electrical applications, including motor controllers, switchgear, and control panels.
- Designed for internal wiring and control circuits requiring high durability and safety.
- Complies with British Standard BS 6231 for tri-rated wire, meeting BSI, UL, and CSA standards.
Product Description
RS PRO 225-2151 Tri-Rated Series Blue Hook Up Wire is a 16 AWG, 1.5 mm² cross-sectional area single core wire with a length of 305 meters insulated with flame retardant polyvinyl chloride (PVC). It is designed for use in electrical equipment, especially power switchgear, internal electrical connections, motor starters, and controllers.
The conductor consists of 30 strands of 0.2 mm diameter annealed copper wire, which offers excellent flexibility and conductivity. The insulation jacket is blue flame retardant PVC, making this wire compliant with BS EN 50265, VW-1, and FT-1 fire behavior standards, providing safety against flame spread.
This tri-rated cable is rated for 1 kV dc and 600 V ac, with a maximum operating temperature of 105°C and can withstand temperatures up to 60°C with coil resistance. It meets the BS 6231 standard, also known as panel wire or switchgear cable, which ensures reliability in demanding electrical installations.
Applications include wiring within electrical cabinets, relay and instrumentation panels of power switchgear, rectifier equipment internal connections, motor starters, and controllers in industrial and commercial electrical installations.
Manufactured in the United Kingdom, this tri-rated wire ensures compliance with BSI (British Standards Institute), UL (Underwriters Laboratories), and CSA (Canadian Standards Associations) certifications, making it suitable for international and industrial use.
The conductor is composed of flexible annealed plain copper strands for optimal performance. The blue jacket is made from heat resistant PVC which is flame retardant and durable. The wire supports a voltage rating of 1 kV dc and 600 V ac, suitable for control circuits.
Rated for a maximum operating temperature of 105°C, suitable for high-temperature environments. Complies with tri-rated BS 6231 standard ensuring multi-standard quality. Ideal for use in motor controllers, switchgear, electrical cabinets, and industrial electrical installations.
The durable PVC sheath provides excellent coil resistance and flame retardancy. Explore more from RS PRO tri-rated cables and find suitable wiring solutions for electrical and automation projects on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum voltage of 1 kV dc and 600 V ac.
The conductor is made from flexible annealed copper strands, which provide excellent conductivity and flexibility.
It is rated for a maximum operating temperature of 105°C.
The conductor consists of 30 strands, each with a diameter of 0.2 mm.
This model complies with British Standard BS 6231 and meets BSI, UL, and CSA certifications.
The outside diameter of this wire is 3.3 mm.
The wire is insulated with a blue flame retardant polyvinyl chloride (PVC) jacket.
The current rating for this model is 21 A.
This wire is rated for a minimum operating temperature of -20°C.
This wire is manufactured in the United Kingdom.
