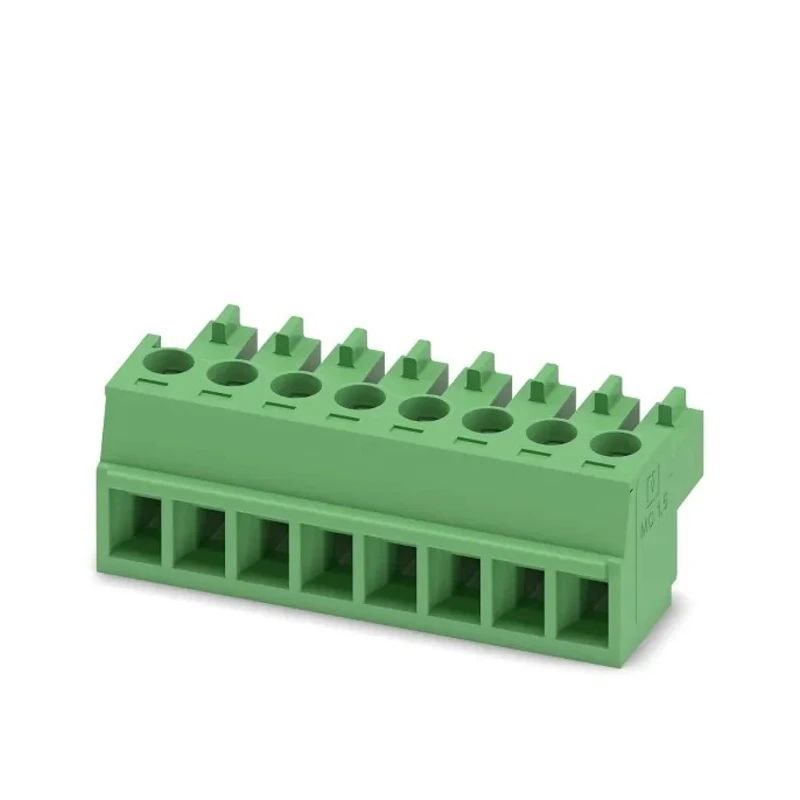

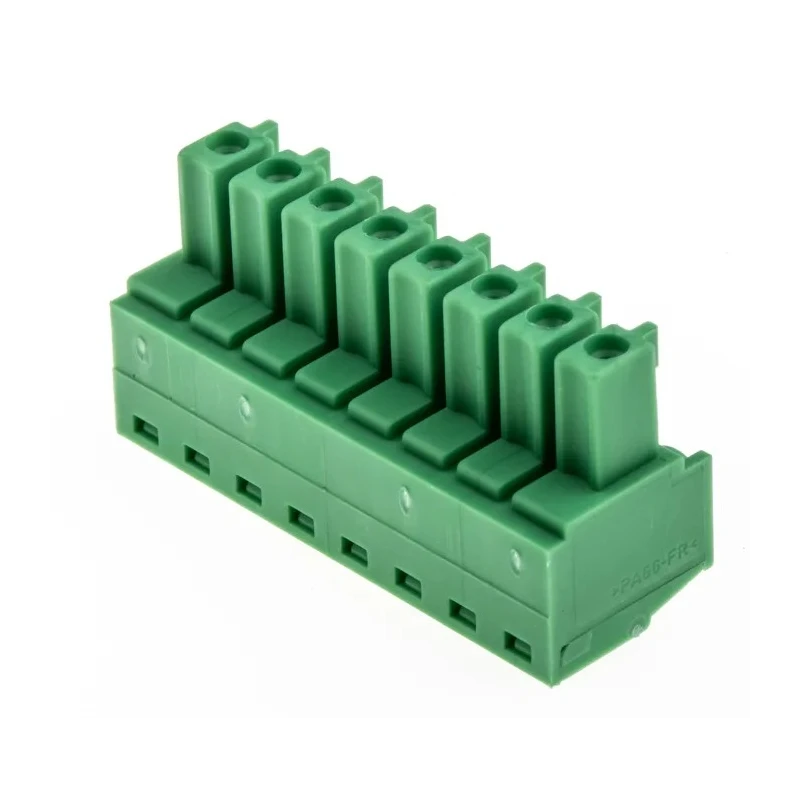

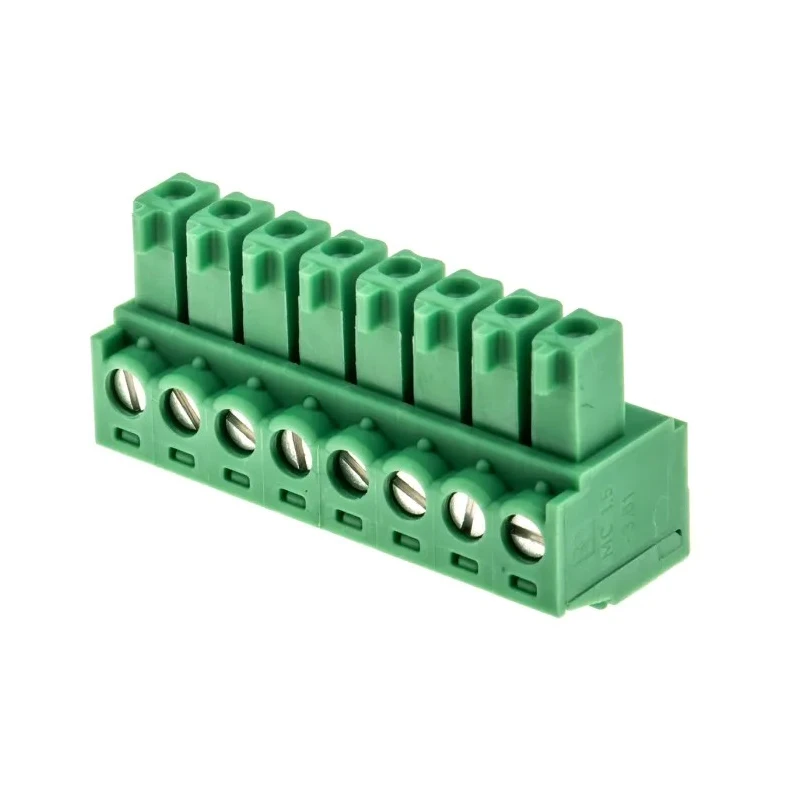

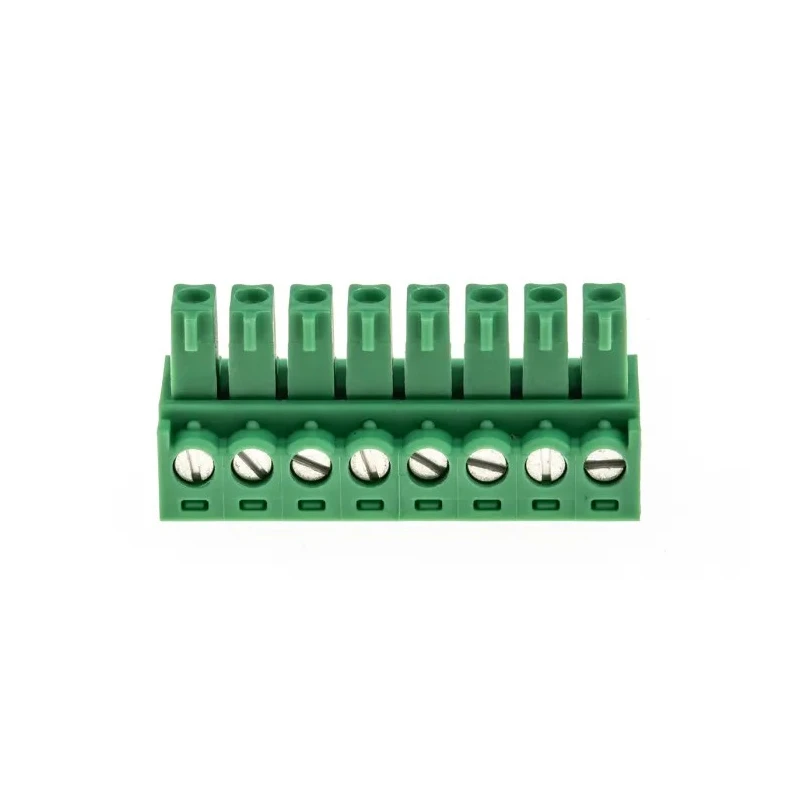

Phoenix Contact Pluggable Terminal Block MC 1.5/8-ST-3.81 Series, 8-Contact, 3.81 mm Pitch, 1 Row, 8A Current, 160V 1803633
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 160V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Horizontal |
| Current | 8A |
| Length | 25.6mm |
| Model | 1803633 |
| Depth | 15mm |
| Width | 31.27mm |
| Housing Material | Polyamide |
| Series | MC 1.5/8-ST-3.81 |
| Number of Rows | 1 |
| Pitch | 3.81mm |
| Number of Contacts | 8 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.14mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 16AWG |
| Wire Connection Method | Screw |
Key Features
- Constructed with durable polyamide housing for resistance to damage and wear.
- Designed for horizontal orientation with screw connection method ensuring secure conductor attachment.
- Supports wire sizes from 0.14 mm² to 1.5 mm² and current rating of 8A at 160V voltage capacity.
- Features a single row layout for streamlined PCB setup and easy installation.
- Complies with IEC 60512-3-1 standards for electrical insulation and reliability.
- Equipped with tin-plated copper contacts to maintain consistent power flow.
- Compact dimensions of approximately 31.27 mm width, 25.6 mm length, and 15 mm depth optimize PCB space usage.
Product Description
Phoenix Contact 1803633 is a high-quality pluggable terminal block designed for industrial and electronic component applications requiring reliable electrical connections. Featuring 8 contacts spaced at a standard 3.81 mm pitch and housed in polyamide, it ensures durable and safe operation.
This terminal block supports currents up to 8A and voltages up to 160V, making it suitable for a broad range of power and signal transmission tasks. Its horizontal orientation and screw connection method facilitate easy wiring and maintenance, suited for complex electrical setups.
The robust polyamide housing resists mechanical shocks and abrasions, while the tin-plated copper contacts provide optimum conductivity and corrosion resistance.
With dimensions of approximately 31.27 mm wide by 25.6 mm long and 15 mm deep, this component optimizes space on printed circuit boards and is compatible with standard header connectors.
The product is tested to IEC 60512-3-1 standards to ensure electrical insulation effectiveness and operational safety in industrial environments. Durable polyamide housing for enhanced mechanical stability. Supports wire sizes 0.14 to 1.5 mm² and 28 to 16 AWG for versatile wiring options.
Screw terminal ensures firm and vibration-resistant conductor connections. Tin-plated copper contacts maintain reliable signal and power transmission. Compact and space-efficient design for streamlined PCB integration. Horizontal orientation simplifies installation and system layout.
Current rating of 8A and voltage rating of 160V suitable for demanding applications.
This pluggable terminal block is appropriate for use in industrial automation, control panels, instrumentation, and power equipment manufacturing. It is designed to facilitate efficient assembly and maintenance with reliable, error-proof connection systems.
The product is of German origin and supplied in new condition. Explore our comprehensive electronics components category for more Phoenix Contact items and related industrial connectors on EnvMart.
Explore more products in our Pluggable Terminal Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block has a current rating of 8A and a voltage rating of 160V, making it suitable for various power and signal transmission tasks.
The contacts of this model are spaced at a standard pitch of 3.81 mm, which is typical for many pluggable terminal blocks.
It supports wire sizes ranging from 0.14 mm² to 1.5 mm², or 28 AWG to 16 AWG, allowing for versatile wiring options.
The housing is constructed from durable polyamide, which provides resistance to mechanical shocks and abrasions.
This model features 8 contacts, allowing for multiple connections in a single unit.
It is designed for horizontal orientation, facilitating easy installation and wiring in various applications.
The dimensions are approximately 25.6 mm in length, 31.27 mm in width, and 15 mm in depth, optimizing space on printed circuit boards.
It uses a screw connection method, ensuring firm and vibration-resistant conductor connections.
Yes, it complies with IEC 60512-3-1 standards for electrical insulation and reliability, ensuring safe operation in industrial environments.
This terminal block belongs to the MC 1.5/8-ST-3.81 series, which is known for its reliable electrical connections.
It is appropriate for use in industrial automation, control panels, instrumentation, and power equipment manufacturing.
This product is of German origin, ensuring adherence to high manufacturing standards.
