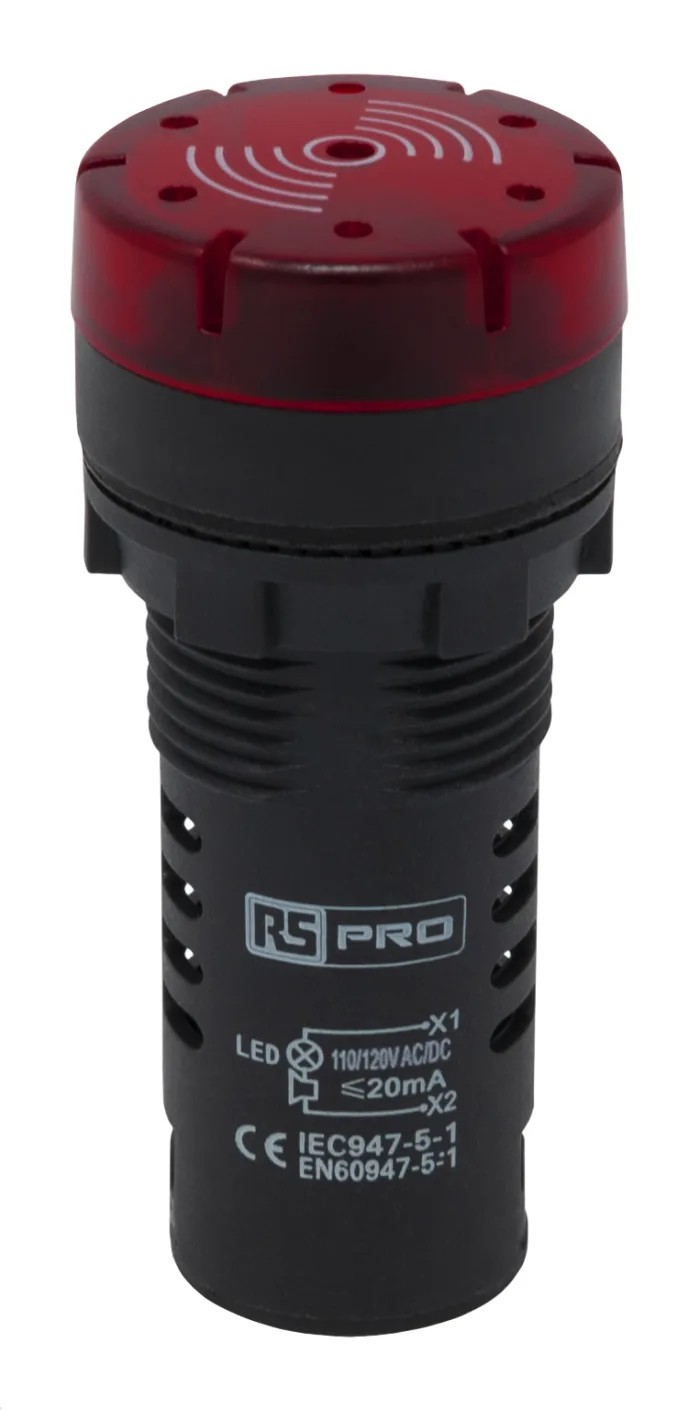

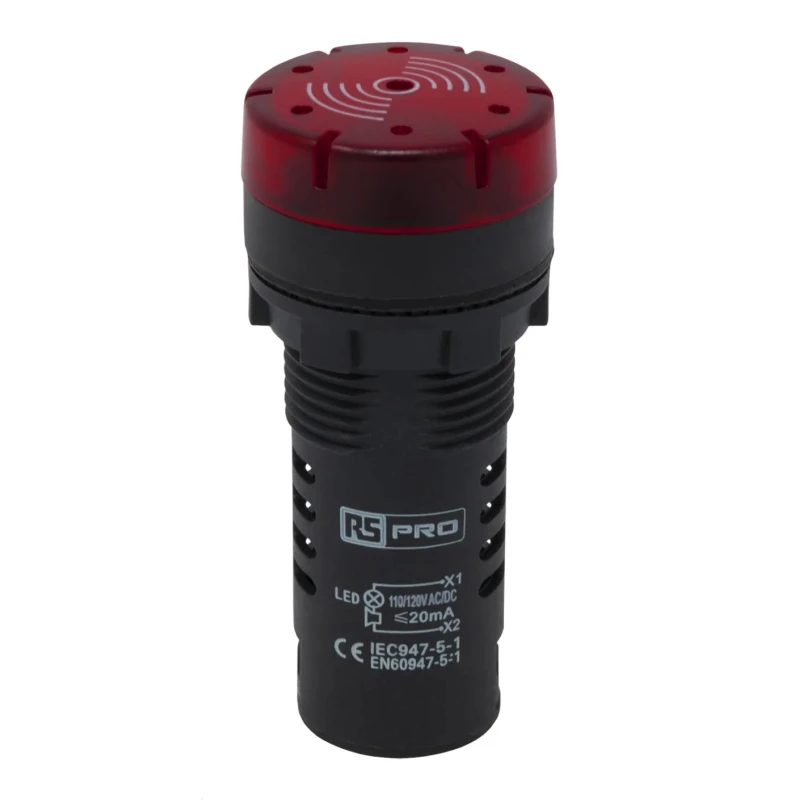

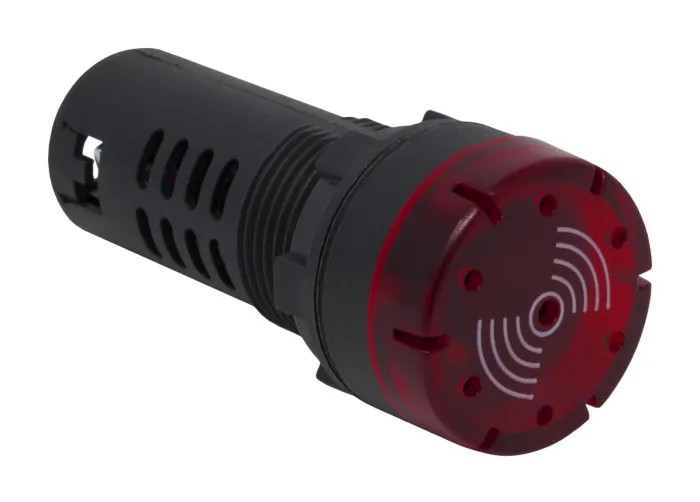

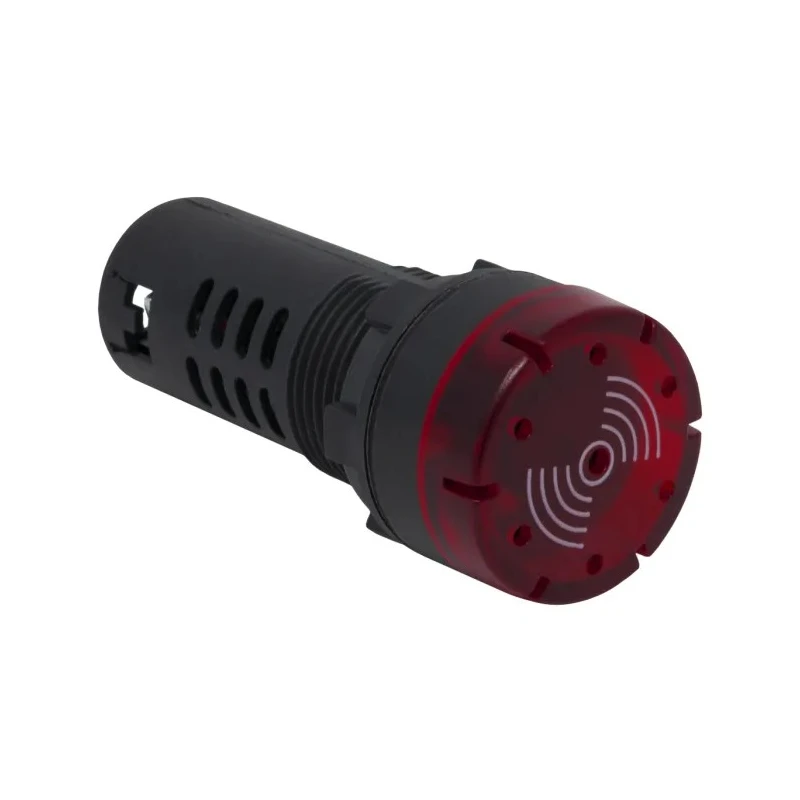

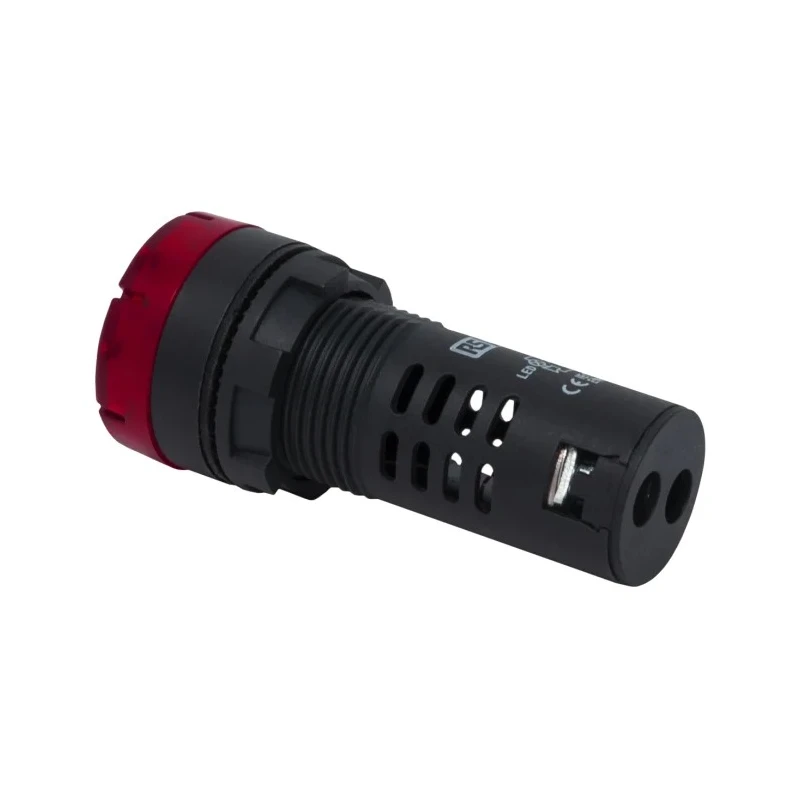

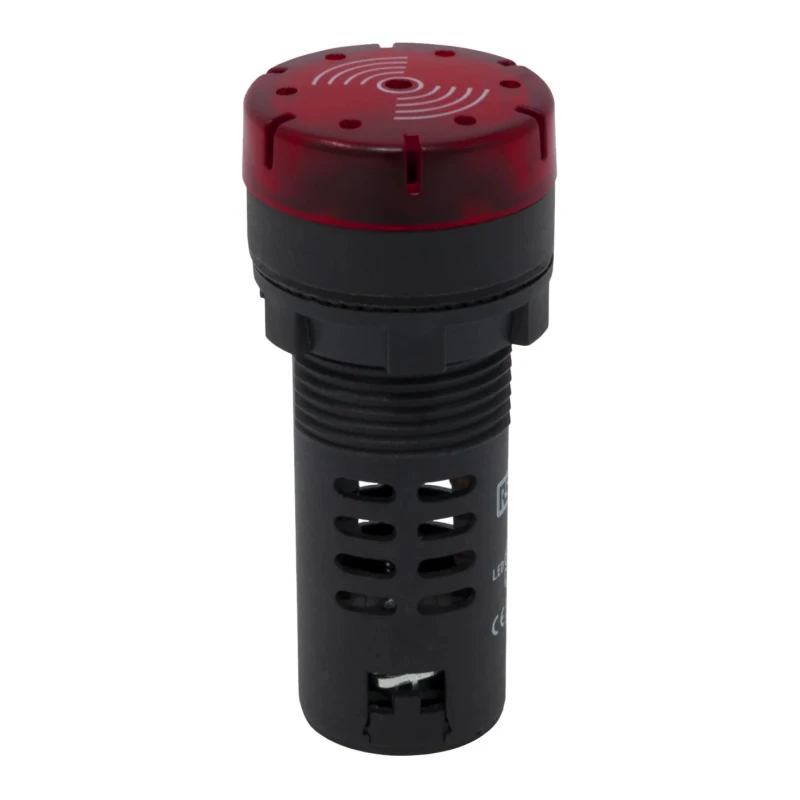

RS PRO Panel Mount Red LED Pilot Light LEDtec 22 mm Cutout 120 V AC/DC IP30 Round 909-2550
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 120, 120V ac |
| Brand | RS PRO |
| Body Material | Polycarbonate |
| Model | 909-2550 |
| IP Rating | IP30 |
| Lamp Type | LED |
| Mount Type | Panel Mount |
| Current Rating | 20mA |
| Series | LEDtec |
| Terminal type | Screw |
| Standards/Approvals | CE, UL |
| Cutout Diameter | 22mm |
| Pilot Light Colour | Red |
| Pilot Light Shape | Round |
| Bezel Material | Polycarbonate |
Key Features
- This pilot light features a round shape and polycarbonate body with polycarbonate bezel material.
- It operates at 120 V AC/DC voltage with a current rating of 20 mA.
- IP30 rated for protection from tools and wires greater than 2.5 mm; not protected against liquids.
- Utilizes multi-chip LED technology providing bright red illumination with low power consumption.
- Includes screw terminal type for secure electrical connections and easy installation.
- Complies with CE and UL standards for safety and performance.
- Designed for alarmed audible and visual signaling with sounder output of 80 dB.
- Has an operational lifetime of up to 30,000 hours and temperature range from -25°C to 55°C.
Product Description
RS PRO 909-2550 is a high-quality Panel Mount Red LED Pilot Light from the LEDtec series, featuring a 22 mm cutout diameter and designed for 120 V AC/DC applications.
This round pilot light uses advanced multi-chip LED technology to deliver bright, intensive red illumination while maintaining very low power consumption, making it highly energy efficient.
The robust polycarbonate body and bezel materials provide durability and reliability suitable for various industrial environments. Rated at IP30, it offers protection from access to hazardous parts and ingress of solid objects larger than 2.5 mm, although it is not liquid resistant.
The pilot light includes screw terminals for straightforward and secure electric connections as well as a back-of-panel lock nut for easy mounting in control panels. RS PRO 909-2550 is compliant with CE and UL standards, ensuring safety and performance in demanding applications.
The indicator supports alarmed audible and visual signaling with an 80 dB sounder output, suitable for alarm circuits and status indication in automatic equipment, telephones, and dashboard control panels.
Designed for operating temperatures ranging from -25°C to 55°C and an operational life span of up to 30,000 hours, it ensures longevity and dependable performance in industrial, manufacturing, electrical, and automation control scenarios.
This pilot light is brighter than standard incandescent bulbs and ideal for highly reliable indication in machinery and instrumentation. Applications include automatic equipment monitoring, condition panels, telecommunication systems, and dashboard lights.
Explore more electrical components and Pilot Lights at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a voltage of 120 V AC/DC.
The current rating for the RS PRO 909-2550 is 20 mA.
It requires a cutout diameter of 22 mm for panel mounting.
It utilizes multi-chip LED technology for bright red illumination with low power consumption.
The RS PRO 909-2550 has an IP30 rating, providing protection from solid objects larger than 2.5 mm, but not against liquids.
The body and bezel of this unit are made from polycarbonate material.
It operates within a temperature range of -25°C to 55°C.
This pilot light complies with CE and UL standards for safety and performance.
It includes a back-of-panel lock nut for easy mounting and screw terminals for secure electrical connections.
The operational lifetime of the RS PRO 909-2550 is up to 30,000 hours.
It is suitable for applications such as automatic equipment monitoring, condition panels, and dashboard lights.
It has a sounder output of 80 dB for alarmed audible and visual signaling.
