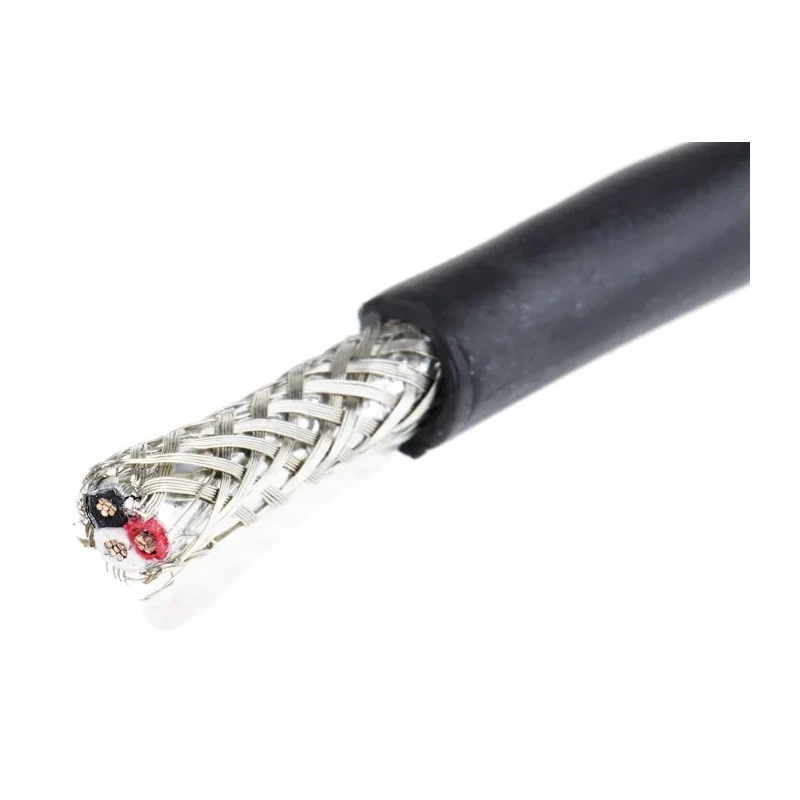

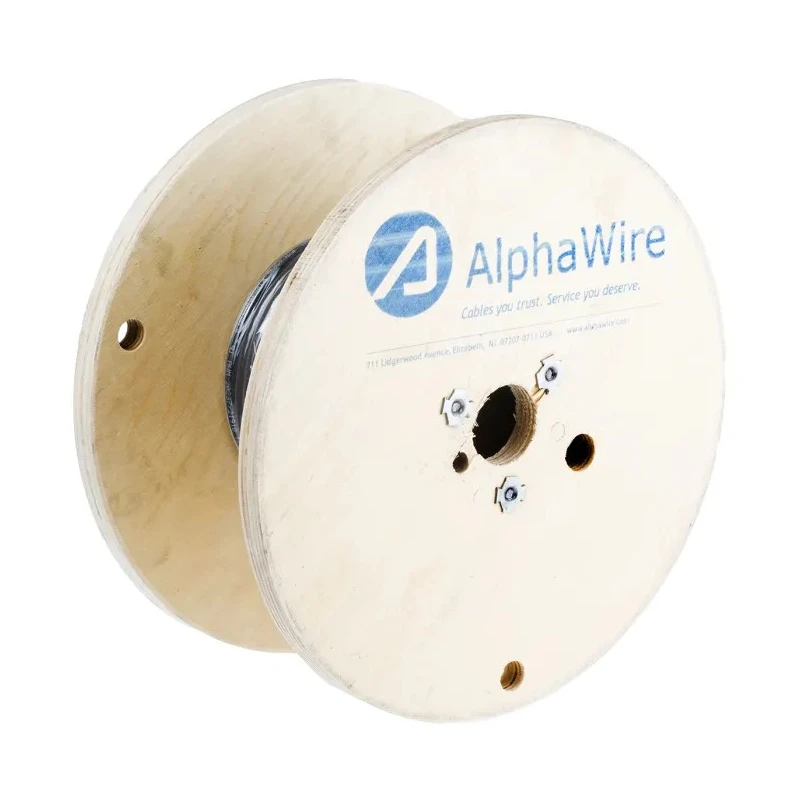

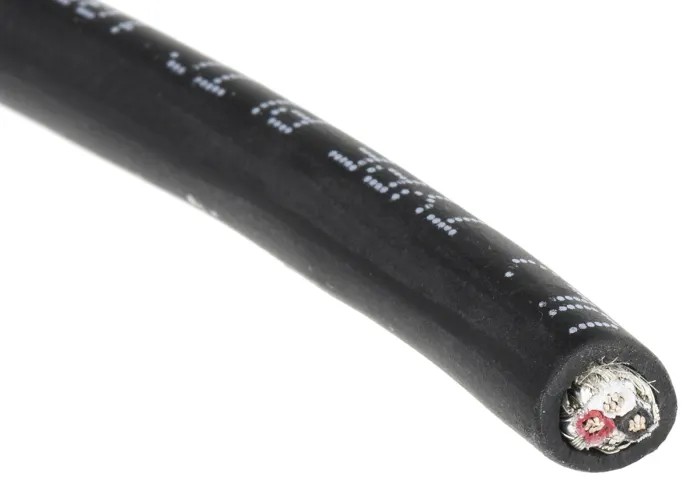

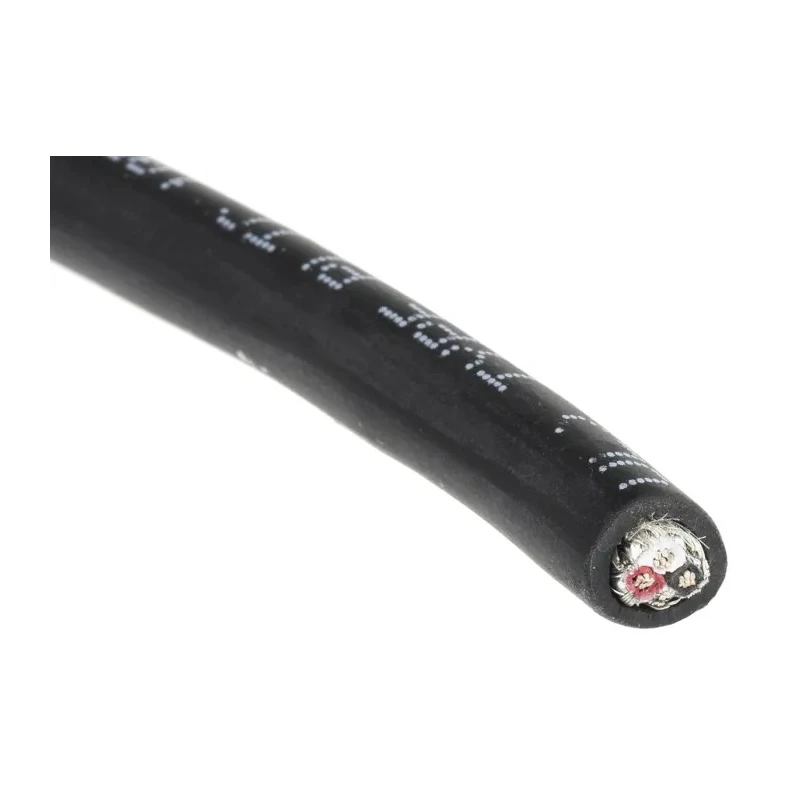

Alpha Wire Xtra-Guard 4 Performance Control Cable 3 Cores 0.35mm² 22 AWG Screened 30 m Thermoplastic Elastomer 45103 BK005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | 45103 BK005 |
| Cable Length | 30m |
| Series | Xtra-Guard 4 Performance Cable |
| Outside diameter | 6.5mm |
| Maximum Operating Temperature | 125°C |
| Number Of Cores | 3 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -50°C |
| Interfaces | Ethernet has been specially designed for industrial networking applications |
| Jacket Material | Thermoplastic Elastomer |
| Standards/Approvals | UL, CSA, CE |
| Jacket Colour | Black |
| Fire Behaviour | FT1 |
| American Wire Gauge | 22AWG |
| Screened/Unscreened | Screened |
| Number of Strands | 7 |
| Core Strands | 7 x 0.25mm |
| Size of Strands | 0.25mm |
| Cable CSA | 0.35mm² |
| FIT Heatshrink tubing recommendations | FIT-400 and FIT-600 |
Key Features
- The cable features a flexible thermoplastic elastomer jacket resistant from -50°C to 125°C.
- It is screened with Supra-Shield for EMI protection ensuring signal integrity.
- The cable has an outside diameter of 6.5mm and a 30-meter length.
- Manufactured using tin copper wire conductors with 7 strands of 0.25mm size each.
- Complies with UL, CSA, CE standards for industrial applications.
- The jacket is abrasion, oil, water, and chemical resistant ensuring durability in harsh environments.
- Suitable for use in mining, petrochemical, pipeline, military, and solar power applications.
- UL Rated TC 600 V and PLTC 300 V for cable tray applications.
Product Description
Alpha Wire 45103 BK005 Xtra-Guard 4 Performance Control Cable features 3 cores with 0.35mm² 22 AWG tin copper conductors and a screened thermoplastic elastomer jacket. Rated for 300 V operation, it offers exceptional flexibility and durability in extreme temperature ranges from -50°C to +125°C.

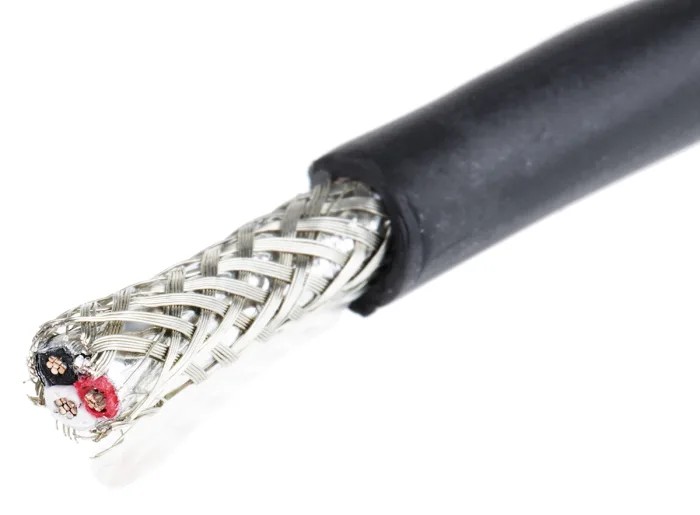

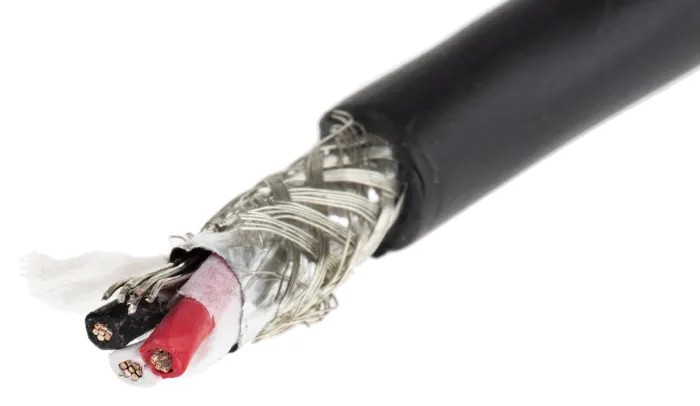

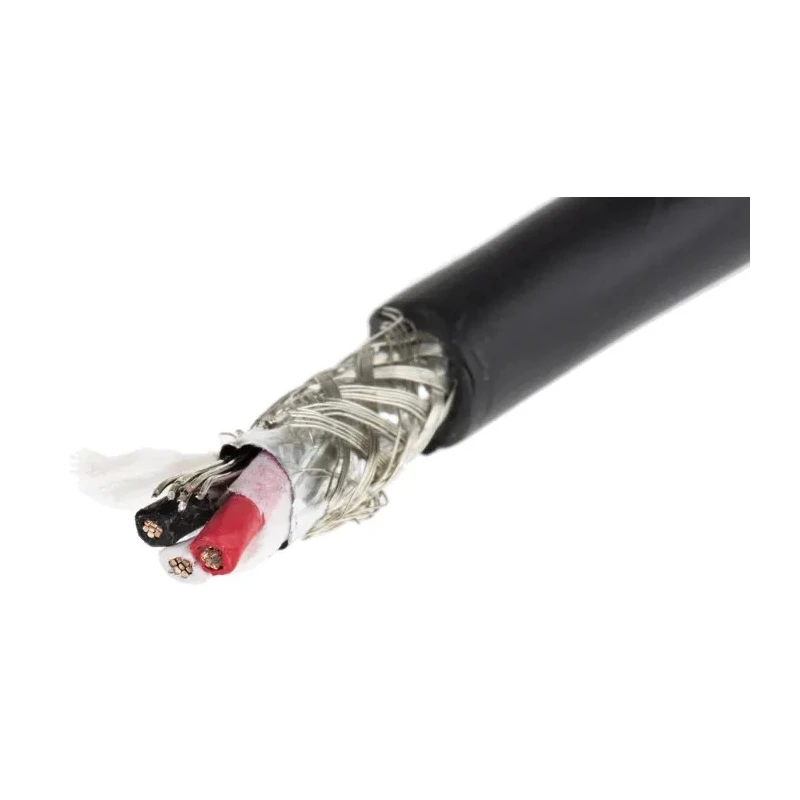

The thermoplastic elastomer jacket and insulation make the cable three times more flexible than typical PVC cables at both low and high temperatures. The screen uses a Supra-Shield construction combining triple layers of aluminum/polyester/aluminum foil and braided tinned copper, providing excellent EMI protection and signal integrity.
Its 6.5 mm outside diameter and 30 m length make it suitable for diverse industrial applications including paper manufacturing, mining operations, food and beverage industries, petrochemical facilities, pipeline systems, and military electronics. The cable carries approvals from UL, CSA, and CE, and is Pennsylvania Bureau Deep Mining Safety approved for mine-wide monitoring.
Resistance to oil, water, chemicals, abrasion, and ultraviolet light enhances its performance in harsh environments. The cable is UL Rated TC 600 V and PLTC 300 V for cable tray installations, except for 24 AWG variants.
Users should note this cable is not recommended for continuous flex or high flex applications due to its construction. Heatshrink tubing such as FIT-400 and FIT-600 is recommended for additional insulation.
Alpha Wire’s Xtra-Guard 4 range ensures highly reliable and robust control cable solutions designed specifically for challenging industrial, commercial, and military environments. The cable provides an extended temperature range from -50°C to 125°C with high performance TPE insulation.
Jacket offers excellent resistance to abrasion, chemicals, oil, ultraviolet light and water. Screening with Supra-Shield reduces electromagnetic interference for cleaner signal transmission. UL, CSA, CE standards compliance and deep mining safety approval ensure reliability in critical applications.
Designed for control and power applications including solar and wind energy installations. Explore more high-quality industrial cables from Alpha Wire and related Control Cable products at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 125°C.
This cable is rated for a voltage of 300V.
The cable features 3 cores.
The outside diameter of the cable is 6.5 mm.
It is made with tin copper wire conductors and a thermoplastic elastomer jacket.
This model is suitable for applications in mining, petrochemical, pipeline, military, and solar power.
The cable has a length of 30 meters.
The cable is screened with Supra-Shield for EMI protection, ensuring signal integrity.
It complies with UL, CSA, and CE standards.
The minimum operating temperature is -50°C.
It is recommended to use FIT-400 and FIT-600 heatshrink tubing for additional insulation.
Each core contains 7 strands of 0.25 mm size.
