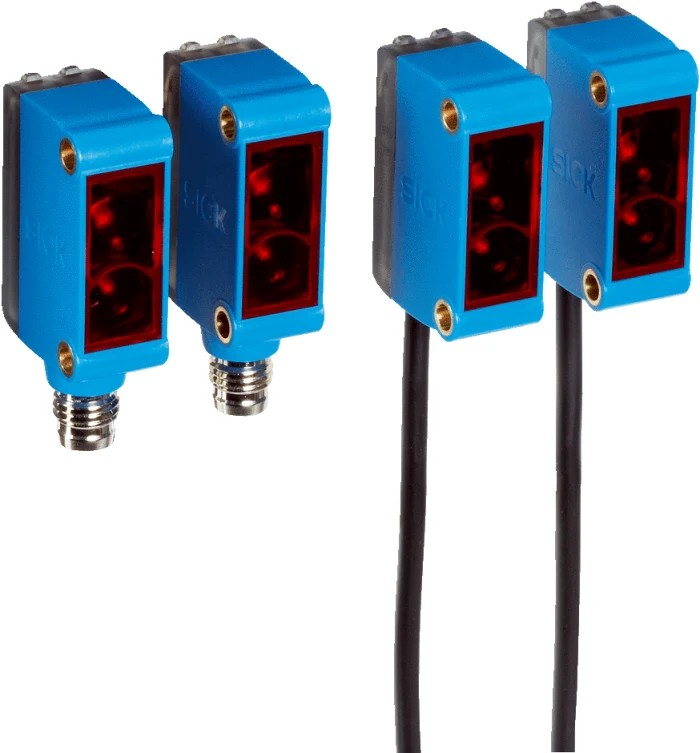

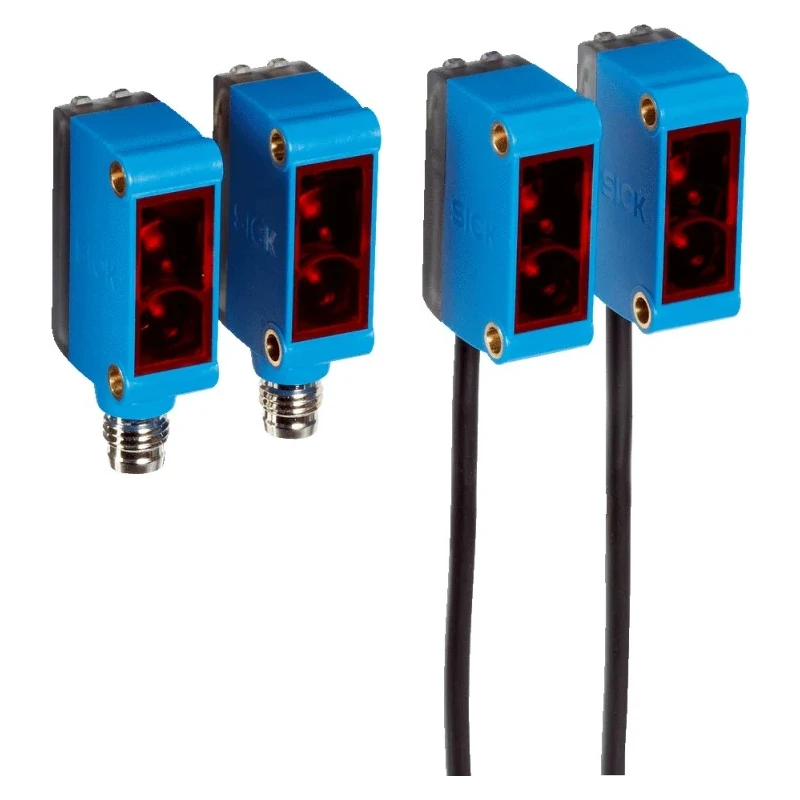

SICK Through Beam Photoelectric Sensor, Block Style, 0 to 15 m Detection Range, PNP Output, IP67, GSE6-P1112
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | SICK |
| Response time | 500μs |
| Light Source | Polarised Red Light |
| Detection range | 0 → 15 m |
| Model | GSE6-P1112 |
| IP Rating | IP67 |
| Mount Type | Screw |
| Housing Material | Plastic |
| Output type | PNP |
| Series | G6 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 100mA |
| DetectIon Type | Through Beam |
| Terminal type | 3-Pin Connector |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | UL File No. NRKH.E348498 & NRKH7.E348498 |
| Sensor Style | Block |
Key Features
- Block style sensor ideal for object detection and presence monitoring.
- Employs a polarised red light source for enhanced accuracy.
- Features PNP output with a 3-pin connector terminal type for easy integration.
- Operates reliably within temperature range of -25°C to 55°C.
- Rated for maximum DC voltage of 30V and maximum current of 100mA.
- IP67 enclosure ensures robustness against dust and water ingress.
- Fast response time of 500 microseconds suitable for dynamic applications.
- Compact plastic housing with screw mount for flexible installation.
Product Description
The SICK GSE6-P1112 through beam photoelectric sensor represents a high-performance solution for industrial automation and control applications, especially where reliable object detection is critical.
This block style sensor boasts a detection range from 0 to 15 meters, utilizing a polarised red light beam to detect objects with precision. Equipped with PNP output and a standard 3-pin connector, it is designed for seamless integration into automated systems.
Its robust IP67 rated plastic housing ensures excellent resistance to dust and water, making it suitable for harsh environments. Operating temperature ranges from -25°C to 55°C accommodate a wide variety of industrial conditions. The sensor’s maximum DC voltage rating is 30V with a maximum passing current of 100mA, offering energy-efficient and reliable switching performance.
Notably, the GSE6-P1112 achieves a swift response time of 500 microseconds, enabling fast detection critical for conveyor monitoring, robotic component detection, and level monitoring in manufacturing processes.
The sensor is mounted using standard screw fixtures compatible with a 1-inch hole distance and is fabricated with durable plastic material enhanced by SICK ASIC technology for improved signal processing accuracy.
Block style sensor ideal for precise through beam detection. Polarised red light source enhances detection reliability. PNP output with 3-pin connector for simplified wiring. IP67 rated enclosure for protection against dust and water ingress.
Operating temperature suited for diverse environments (-25°C to 55°C). Fast 500µs response time for dynamic process monitoring. Robust plastic housing with screw mount for flexible installation options. UL certification ensures adherence to safety standards.
Manufactured in Hungary with high-quality standards.
Common industrial applications include component detection in robot grippers, conveyor line transport control, pallet shuttle positioning, access protection, protrusion monitoring, and level sensing in material handling setups. The sensor excels in automated identification of stacked totes, presence detection at induction lines, and monitoring of load carrying units, among other factory automation tasks.
Explore the extensive range of SICK Photoelectric Sensors and other automation products at EnvMart for enhanced industrial automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this sensor is from 0 to 15 meters.
It features a PNP output with a 3-pin connector terminal type for easy integration.
The response time of this model is 500 microseconds, suitable for dynamic applications.
The operating temperature range is from -25°C to 55°C.
It has a maximum DC voltage rating of 30V and a maximum current rating of 100mA.
This sensor employs a polarised red light source for enhanced detection accuracy.
The sensor is rated IP67, providing protection against dust and water ingress.
It can be mounted using standard screw fixtures compatible with a 1-inch hole distance.
The housing is made of plastic, designed to withstand harsh environments.
It has UL certification, ensuring adherence to safety standards.
This model is manufactured in Hungary.
It is suitable for applications such as object detection, conveyor monitoring, and level sensing in material handling setups.
