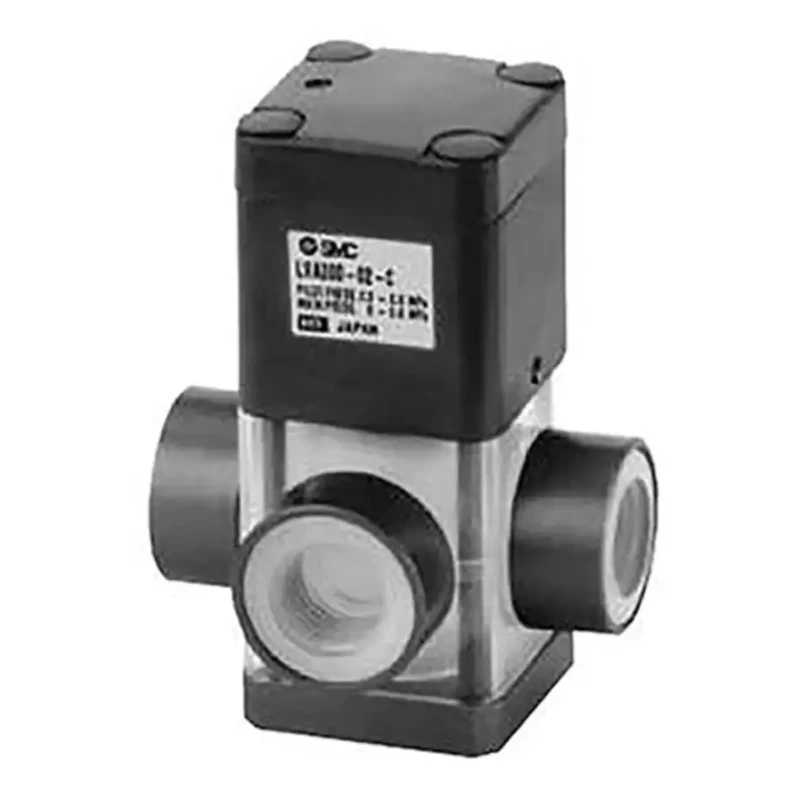

SMC Pneumatic Solenoid Valve 2/2 NC Pneumatic NPT 1/4 in Port Size Single Solenoid Base Mount LVA200-02N-C

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve 2/2 NC Pneumatic NPT 1/4 in Port Size Single Solenoid Base Mount LVA200-02N-C



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Body Material	Perfluoroalkoxy
Maximum Operating Pressure	0.5 Mpa
Height	33mm
Length	57mm
Model	LVA200-02N-C
Width	30mm
Mount Type	Base
Series	LVA
Number Of Ports	2
Maximum Operating Temperature	60°C
Port Type	Threaded
Number of Positions	2
Port Size	1/4 in
Seal Material	Nitrile Rubber (NBR)
Minimum Operating Temperature	0°C
Actuation Type	Pneumatic
Standards/Approvals	ANSI
Connection Thread Standard	NPT
Minimum Pilot Pressure	0.3MPa
Valve Function	2/2 NC
Solenoid Type	Single
Port Gender	Female

Key Features

Operates with a maximum pressure of 0.5 MPa and pilot pressure between 0.3 MPa to 0.5 MPa.
Constructed with perfluoroalkoxy body material and nitrile rubber (NBR) seals for durability.
Works efficiently at fluid temperatures ranging from 0 to 60°C.
Valve function is normally closed 2/2 design with female port gender.
Complies with ANSI standards, made in Japan, and designed for industrial pneumatic applications.

Product Description

SMC LVA200-02N-C Pneumatic Solenoid Valve 2/2 NC Pneumatic NPT series is a robust valve solution designed for precision control of pneumatic fluid power systems. It features a 1/4 inch NPT threaded port size with female gender, suitable for use in industrial applications requiring reliable on/off valve function.

The single solenoid valve operates up to a maximum operating pressure of 0.5 MPa and accommodates pilot pressures ranging from 0.3 to 0.5 MPa. Its perfluoroalkoxy (PFA) body material offers excellent chemical resistance and durability, while the nitrile rubber (NBR) seals ensure reliable sealing performance and extended service life.

This valve has a base mount type for stable installation and compact footprint, measuring 57mm in length, 30mm in width, and 33mm in height. The 2-position valve function is normally closed (2/2 NC), suitable for controlling pneumatic actuators or systems that require the valve to be closed when de-energized.

SMC has engineered this valve with diaphragm construction to minimize micro-bubble formation, enhancing the precision and smoothness of valve operation. A unique guide ring on the piston rod prevents lateral motion of the poppet, further increasing seal life and reducing particle contamination within the system.

This model complies with ANSI standards and is manufactured in Japan, providing a high-quality and dependable pneumatic solution for diverse industries including manufacturing, automation, fluid power control, and HVAC systems.

Operates up to 0.5 MPa maximum pressure with fluid temperatures up to 60°C. Compact and lightweight design suitable for tight spaces with consistent performance. Durable materials for chemical and wear resistance, ensuring long cycle life.

Diaphragm construction for gentle valve operation and improved reliability. Base mount configuration for ease of installation and maintenance.

This SMC pneumatic solenoid valve is ideal for industrial fluid power control systems requiring precise and durable pneumatic valve functionality. Explore EnvMart's full range of Pneumatic Solenoid Valves for matching components and accessories suitable for your application needs.
