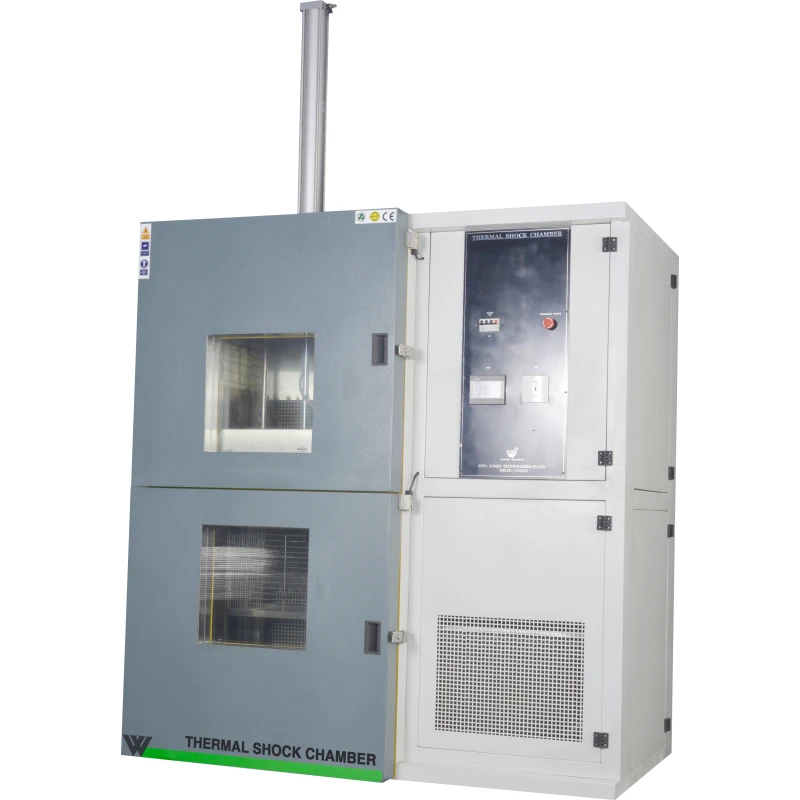

Air to Air Thermal Shock Chamber 2 Zone

To observe the product characteristicsand failure occurrences caused by different materials and their thermalexpansion coefficients, thermal shock testing is subjected to the product. Inthermal shock testing alternating high and low temperatures are fed in thechamber.WEIBER designs and manufacturescustomized THERMAL SHOCK CHAMBERS with separately controlled temperature zones(2 zone and 3 zone), depending on configuration of the chamber chosen.WEIBERoffers several configurations of thermal shock chambers capable of meeting awide variety of testing needs: 2 zone: two-zone chamber has hot and cold zones that can becontrolled independently. A single basket product carrier moves between the hotand cold zones, subjecting the product to dramatic changes in temperature.APPLICATIONS:1.      TestHouses And Research2.      AutomotiveIndustry3.      ElectronicsIndustry4.      AviationAnd Space Industries5.      LaboratoryEquipment.TECHNICAL MATRIX: Specification Air to Air External Dimension (WXDXH) 1700mm x 2400mm x 2100mm Internal Dimension (WXDXH) 508mm x 508mm x 457mm Sample Basket (WXDXH) 200mm x 250mm x 100mm Temperature Range Hot zone: Ambient to 180C / Cold zone: Ambient to -40C Temperature Fluctuation 1C Noise 65dB or less Temperature Controller HMI+PLC Display LCD Safety Thermostats   Automatic Temperature Setting Yes Adjustable Limits Yes Power Requirements 415V, 50/60Hz Load 9 kW
