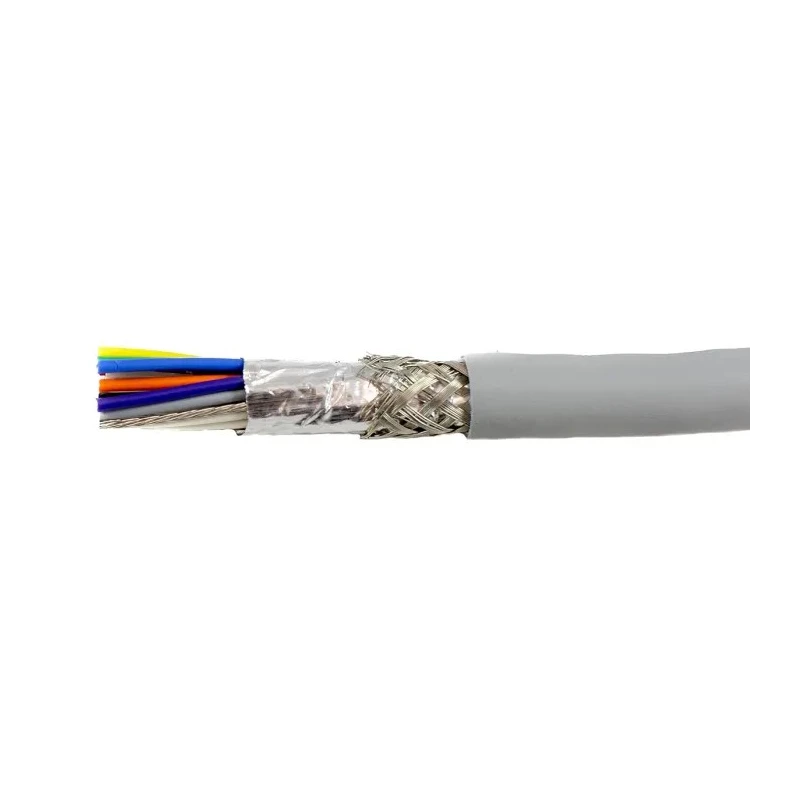

Alpha Wire Ecogen Ecocable Mini Control Cable 15 Cores 0.61mm² 20 AWG Screened 300V 30 m Grey Modified 78355 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | 78355 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecocable Mini |
| Outside diameter | 7.95mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 15 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.007 (0.18 mm) |
| Nominal Diameter | 0.313 inch (7.95 mm) |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | CE, CSA, UL |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free |
| American Wire Gauge | 20AWG |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Number of Strands | 19 |
| Core Strands | 19 x 0.203mm |
| Size of Strands | 0.203mm |
| Cable CSA | 0.61mm² |
| Conductors | 15, Black, Red, White, Green, Orange, Blue, Brown, Yellow, Violet, Slate, Pink, Tan, Red/Green, Red/Yellow, Red/Black |
| Jacket Thickness | 0.015 inch (0.38 mm) |
| Stranding | 19/32 |
Key Features
- The cable features a grey modified polyphenylene ether jacket that is halogen free.
- It operates safely in temperature ranges from -40°C to 80°C.
- Supra-Shield foil plus braid shielding offers excellent electromagnetic interference protection.
- The stranded conductors have 19 strands each of 0.203 mm diameter for flexibility.
- Complies with CE, CSA, and UL standards, suitable for industrial and automation use.
- The cable has a nominal diameter of 7.95 mm with a jacket thickness of 0.38 mm.
- The product is fully recyclable and lightweight compared to PVC equivalents.
- Typical applications include communication, automation systems, radio transmitting, and telecommunication.
Product Description

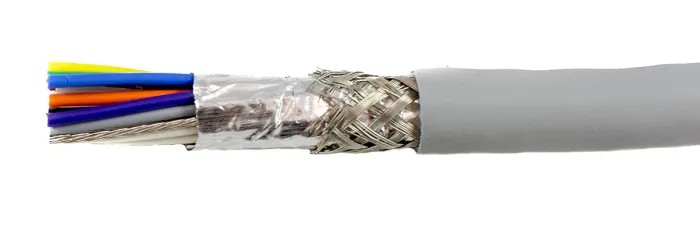

Alpha Wire 78355 SL005 Ecogen Ecocable Mini Control Cable is a high-quality screened control cable with 15 cores of 0.61mm² (20 AWG) tin copper stranded conductors, designed for use with 300V systems. This cable features a grey modified polyphenylene ether (mPPE) jacket and insulation that provides exceptional durability and reduced environmental impact due to its fully recyclable construction.
The cable is engineered with Supra-Shield® foil plus braid shielding technology, combining a triple layer foil with a tinned copper braid to deliver excellent electromagnetic interference (EMI) protection. Its stranded conductors contain 19 strands of 0.203 mm diameter each, enhancing flexibility and performance in industrial applications.
Operating temperature ranges from -40°C to 80°C allow this cable to function reliably in various environments. The halogen-free jacket enhances safety by reducing toxic emissions in case of fire.
With a nominal diameter of 7.95 mm and a jacket thickness of 0.38 mm, this compact cable is lighter and smaller than conventional PVC cables, helping reduce installation bulk and weight.
This control cable is compliant with CE, CSA, and UL certifications, meeting rigorous standards for quality and safety. Installed in industrial, automation, telecommunications, and audio/studio applications, it is suitable for communication, data transmission, and electronic circuit connections under NFPA 79 regulations.
The EcoCable Mini series demonstrates innovation in sustainable cable design by combining performance with eco-friendly materials, thereby reducing the cable’s carbon footprint and improving worksite ergonomics.
The cable has 15 cores with color coding for easy identification and connection. It offers excellent EMI shielding for stable signal transmission in noisy environments. The modified polyphenylene ether jacket provides chemical and temperature resistance.
The product is fully recyclable and halogen free, enabling safer disposal. Screened construction improves signal integrity for industrial control applications. Explore a wide range of Control Cables and industrial wiring solutions at EnvMart for your electrical, automation, and communication system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable is rated for 300V, making it suitable for various industrial applications.
It can operate at a maximum temperature of 80°C, allowing for reliable performance in high-temperature environments.
This control cable features 15 cores, providing multiple connections for various applications.
The nominal diameter of this cable is 7.95 mm, which contributes to its compact design.
The cable has a jacket made of modified polyphenylene ether, and the conductors are made of tin copper wire.
Yes, the jacket is halogen-free, which reduces toxic emissions in case of fire, enhancing safety.
It complies with CE, CSA, and UL standards, ensuring it meets rigorous safety and quality requirements.
This model features Supra-Shield foil plus braid shielding, providing excellent electromagnetic interference protection.
The minimum operating temperature is -40°C, allowing it to function in low-temperature environments.
Each conductor consists of 19 strands, with each strand having a diameter of 0.203 mm, enhancing flexibility.
Typical applications include communication, automation systems, radio transmitting, and telecommunication.
The cable length is 30 meters, providing ample reach for various installations.
