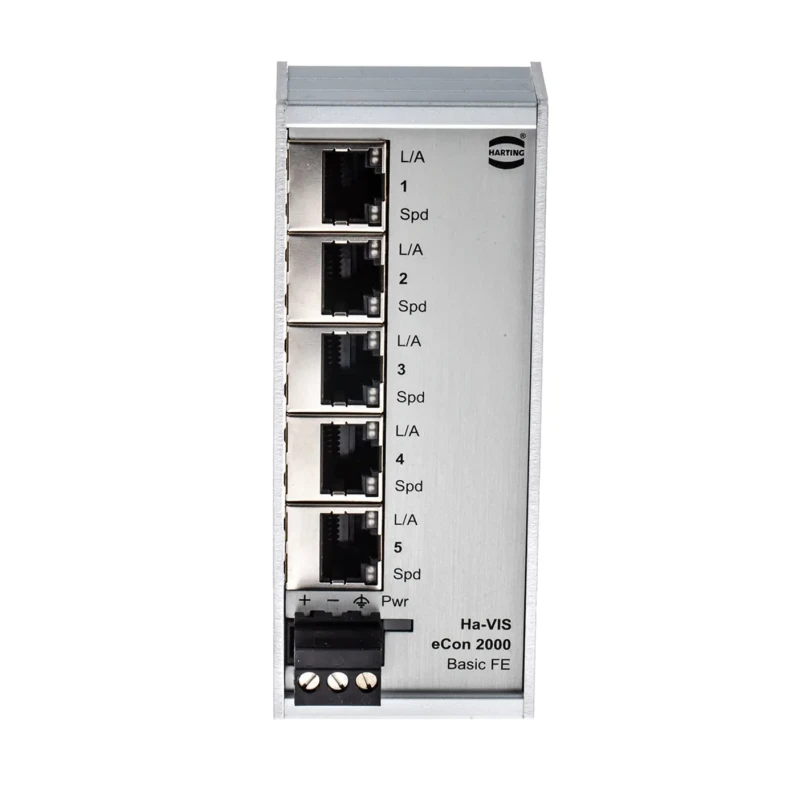

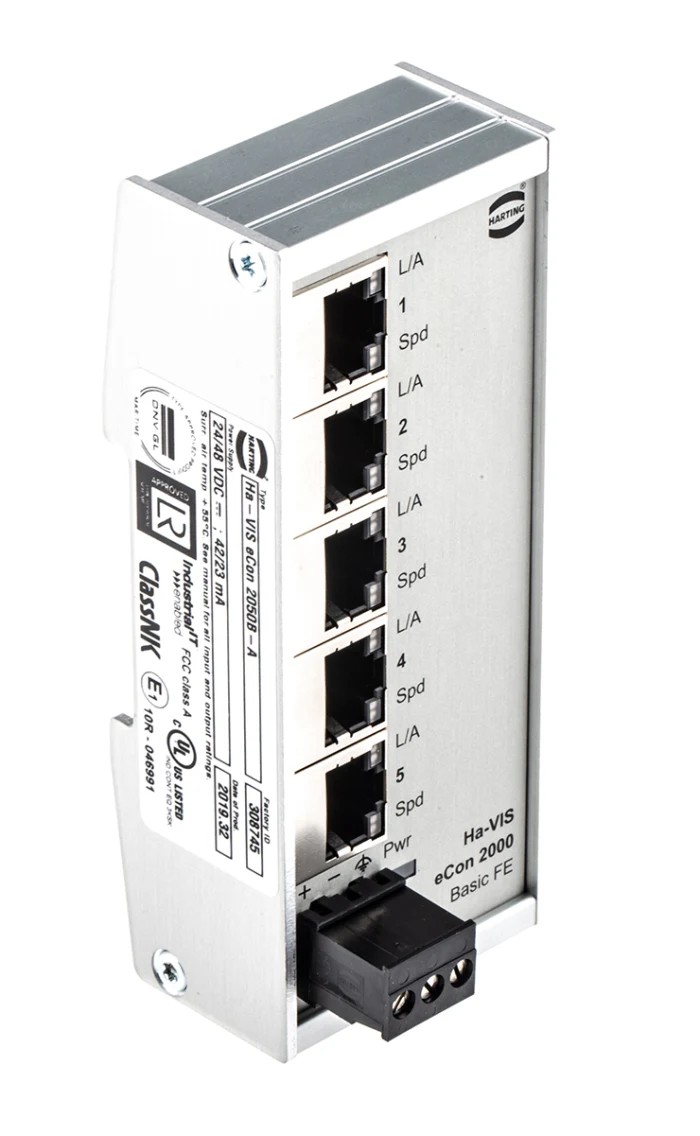

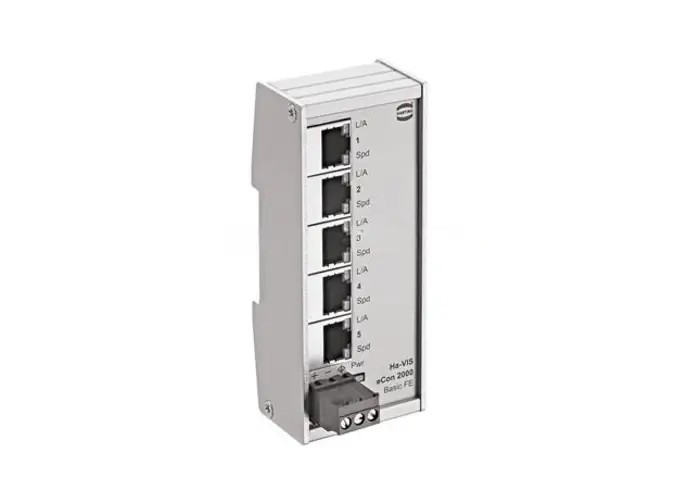

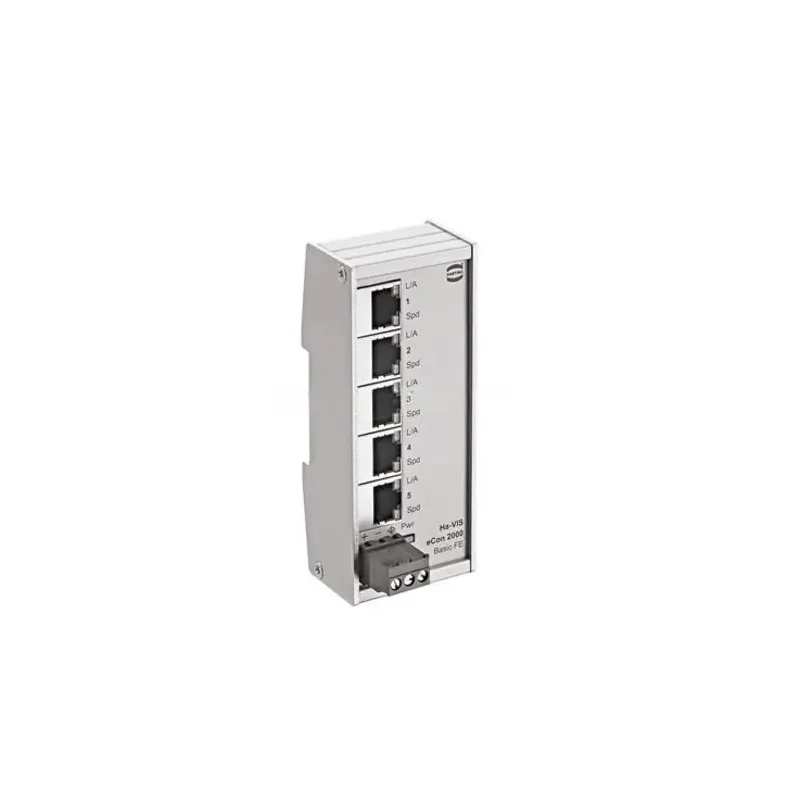

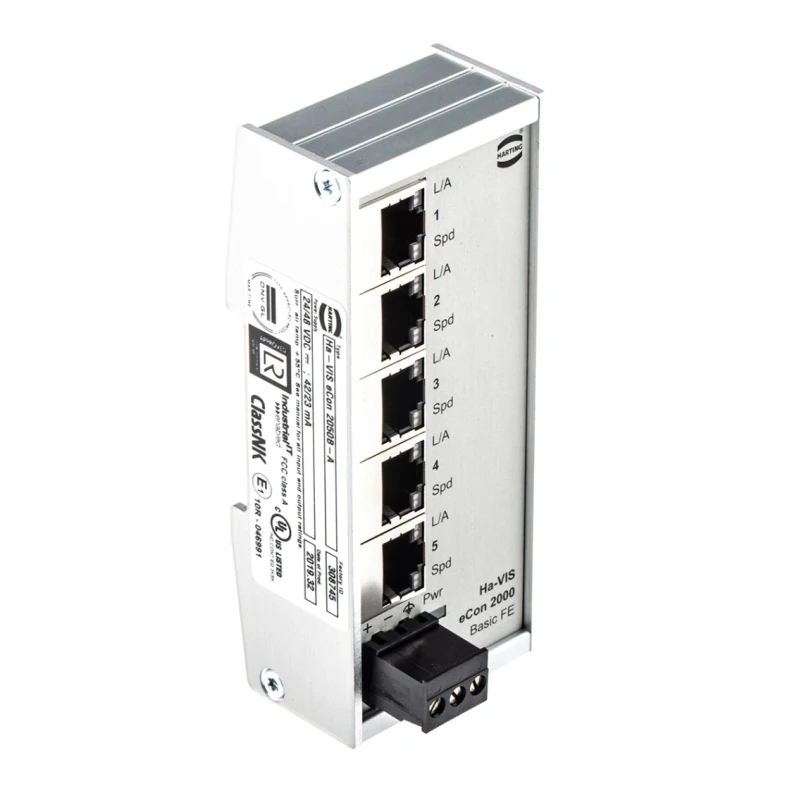

HARTING Unmanaged 5 Port Fast Ethernet Switch for DIN Rail Mounting 9-60 VDC Power 24020050010

HARTING 24020050010 is an unmanaged Fast Ethernet switch designed for compact industrial applications requiring straightforward network expansion. It features five RJ45 ports for 10/100 Mbit/s connections with automatic link configuration enabling hassle-free plug-and-play operation.

The device supports non-blocking store-and-forward switching that guarantees consistent throughput without packet loss, making it ideal for machine control network segmentation in factories, automation cabinet integration, transportation, shipbuilding, wind, and solar power installations.

Power is supplied via a pluggable three-pole screw connector with built-in surge protection, reverse-polarity protection, and input overcurrent protection enhancing robustness in industrial settings. The switch accommodates a wide input voltage range from 9 VDC to 60 VDC providing flexibility with 24 V and 48 V power supplies.

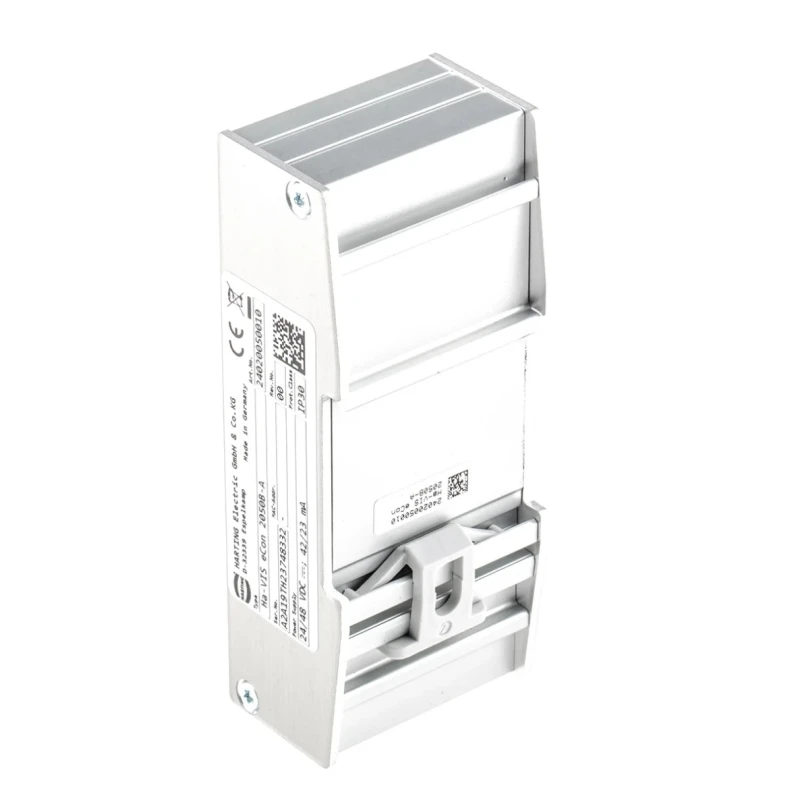

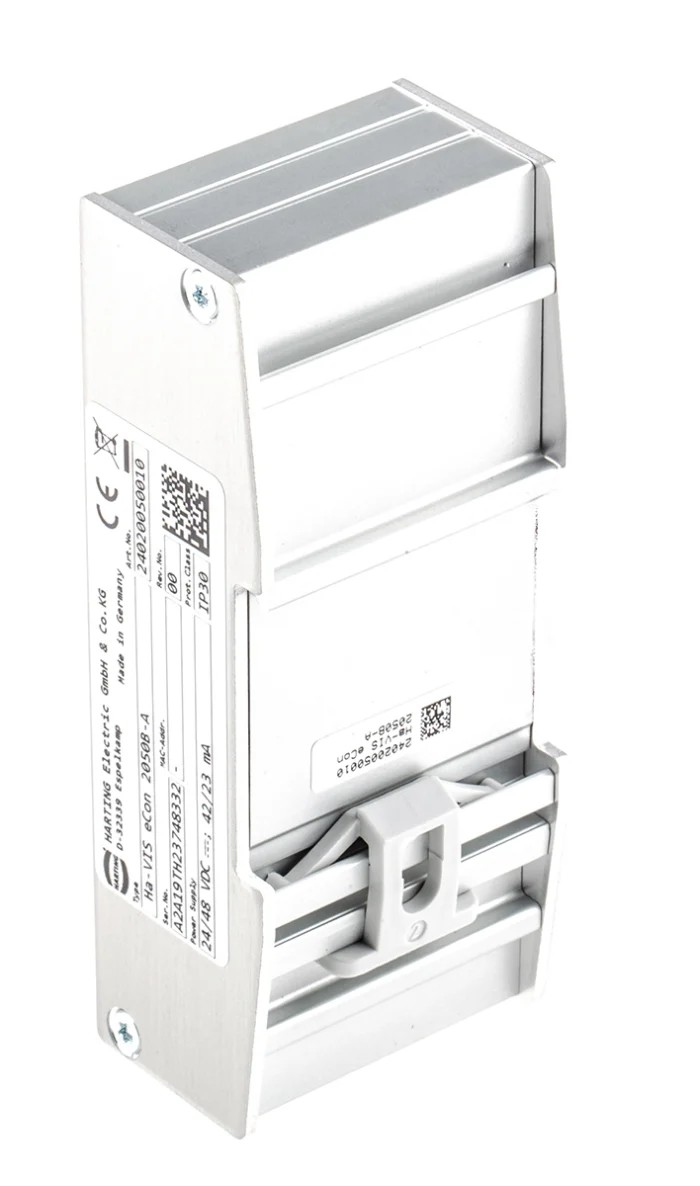

Designed for demanding environments, it operates reliably in temperatures ranging from -40°C to +70°C, and can withstand storage temperatures up to +85°C with relative humidity up to 95% non-condensing. The DIN rail mount form factor allows simple installation inside control cabinets on a standard 35 mm rail.

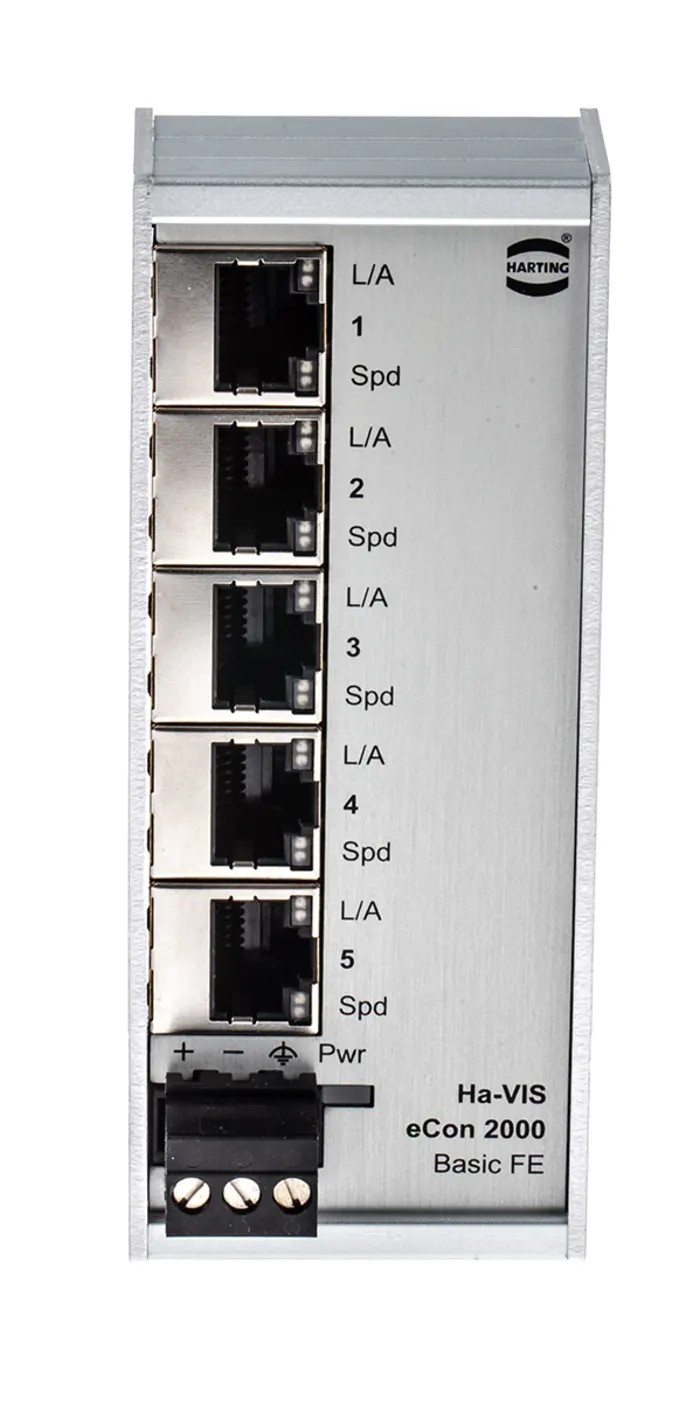

Front panel LEDs indicate power status, link/activity presence, and 100 Mbit/s speed operation for easy diagnostics. This Ethernet switch complies with international standards including FCC, UL, CE, and CSA, ensuring electromagnetic compatibility and safety compliance across multiple regulatory regimes.

Supports reliable 10/100 Mbps Ethernet connectivity with 5 RJ45 ports. Auto-negotiation and auto-MDI(X) simplify cabling and network setup. Energy-efficient Ethernet technology minimizes power consumption. Robust power input with surge, reverse-polarity, and overcurrent protection.

Suitable for industrial automation, transportation, and energy sector networking. Compact size with dimensions 46.5 mm (W) x 113.5 mm (H) x 27.3 mm (D). Operating temperature range -40°C to +70°C for harsh environments. DIN rail mountable for convenient control cabinet integration.

Certified to FCC, UL, CE, and CSA standards for safety and EMC. Manufactured in Germany for assured quality.
