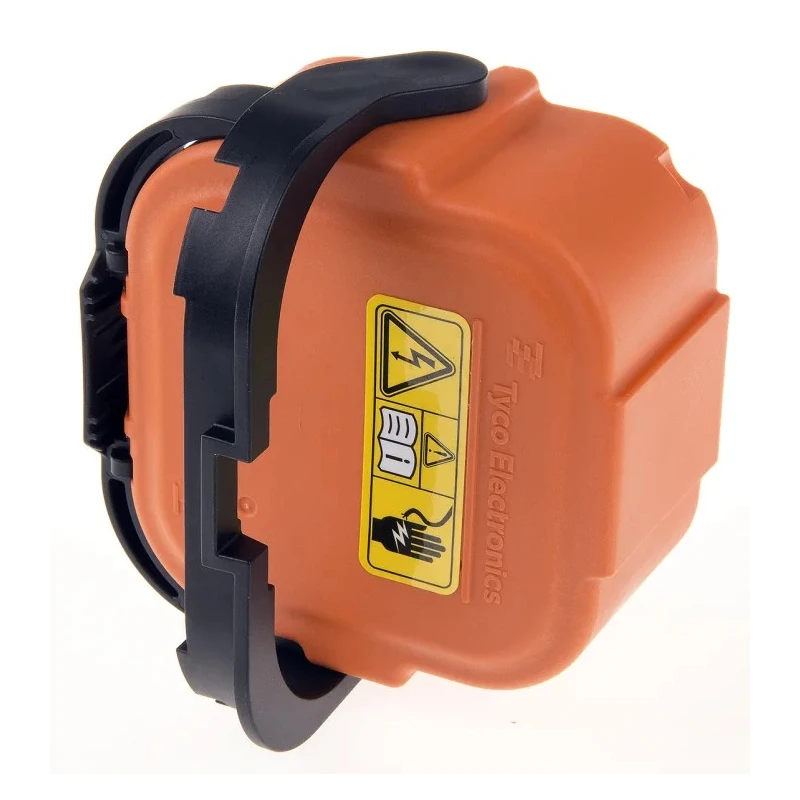

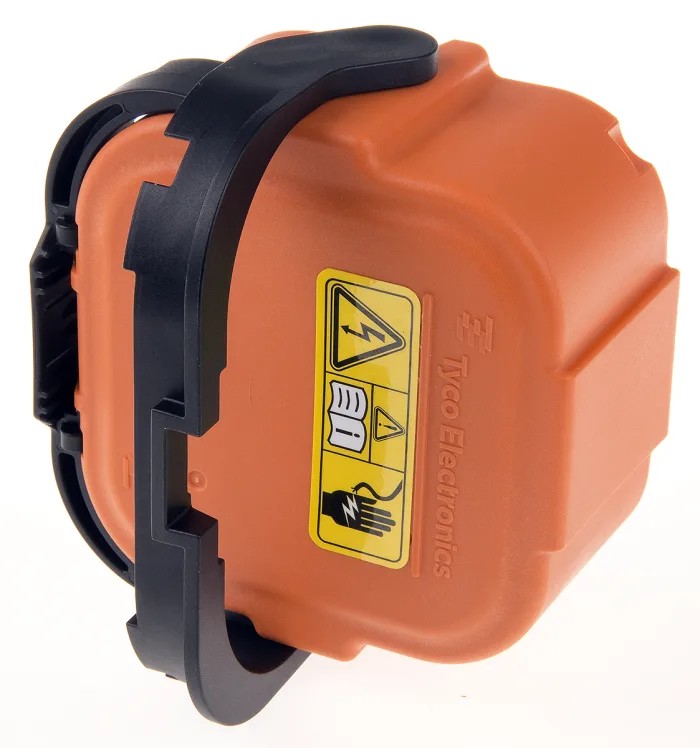

TE Connectivity AMP+ Manual EV Service Disconnect Connector 350A 450V 1-2103172-1

TE Connectivity 1-2103172-1 AMP+ Manual EV Service Disconnect Connector is engineered to ensure safety and reliability in electric vehicle high voltage systems. This connector safely protects service technicians and emergency response teams when working with high voltages up to 450V in EV battery interconnections.

Its innovative two-stage thumb lever action opens the HVIL circuit before separating high voltage contacts, minimizing risk during disconnect procedures. The manual design enables quick, tool-free disconnection, facilitating ease of service and maintenance in automotive electrical systems.

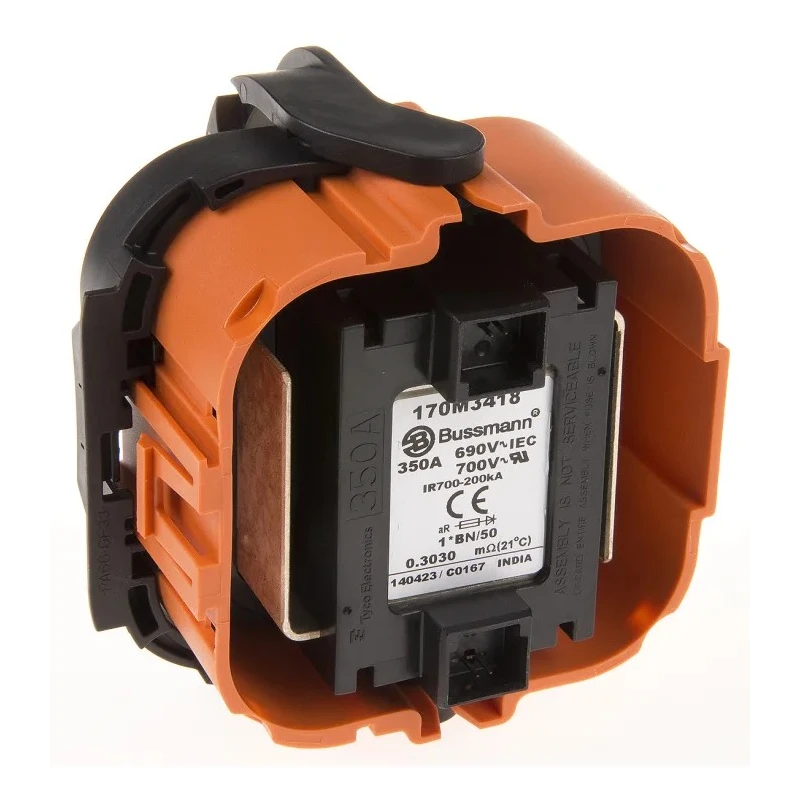

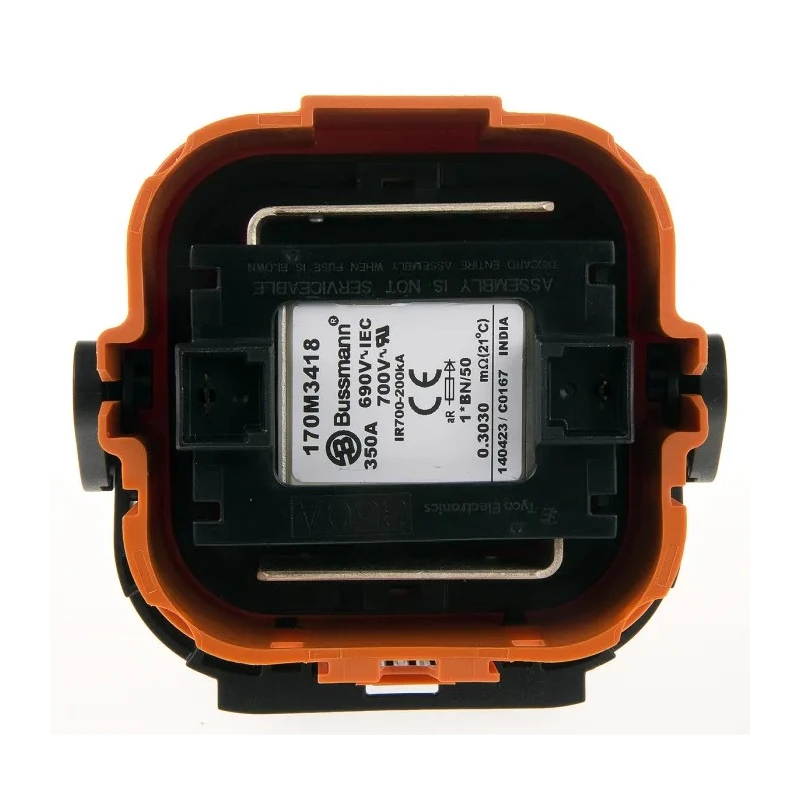

With a high current rating of 350A determined by fuse selection and a durable fuse rating capability, this connector meets stringent performance requirements. Its robust construction ensures operation within a temperature range of -40°C to 140°C, suitable for demanding environmental conditions.

The IP6K9K rating guarantees high resistance against dust and water ingress, making it ideal for automotive and renewable energy applications. The connector’s orange color coding and straight orientation support easy identification and installation. Mounting on a busbar provides secure and stable connections.

Compact in size with precise dimensions (Height: 109.9mm, Depth: 111.2mm, Width: 58.9mm), it accommodates two contacts, male connector gender, and female contact gender for optimal compatibility. Its design supports up to 50 mating cycles, offering long-lasting connection durability.

This product is designed in Mexico and complies with relevant standards such as USCAR-2, USCAR-37, IEC 60529, and RoHS, supporting sustainability initiatives as a renewable energy solution within TE Connectivity's Better World product range.

Designed for high voltage battery pack interconnection in electric vehicles. Features a thumb-activated two-stage lever for safe disconnect operations. Supports up to 50 mating cycles ensuring durability and longevity. Fuse rating capability up to 350A enhancing circuit protection.

Rated for operating temperatures from -40°C to 140°C. IP6K9K rated for protection against dust and water ingress. Tool-free operation for ease of use and maintenance. Includes integrated internal HVIL (High Voltage Interlock Loop) for enhanced safety.

Compact dimensions with height 109.9mm, width 58.9mm, and depth 111.2mm. Connector colors in orange with straight orientation and busbar mount type.
