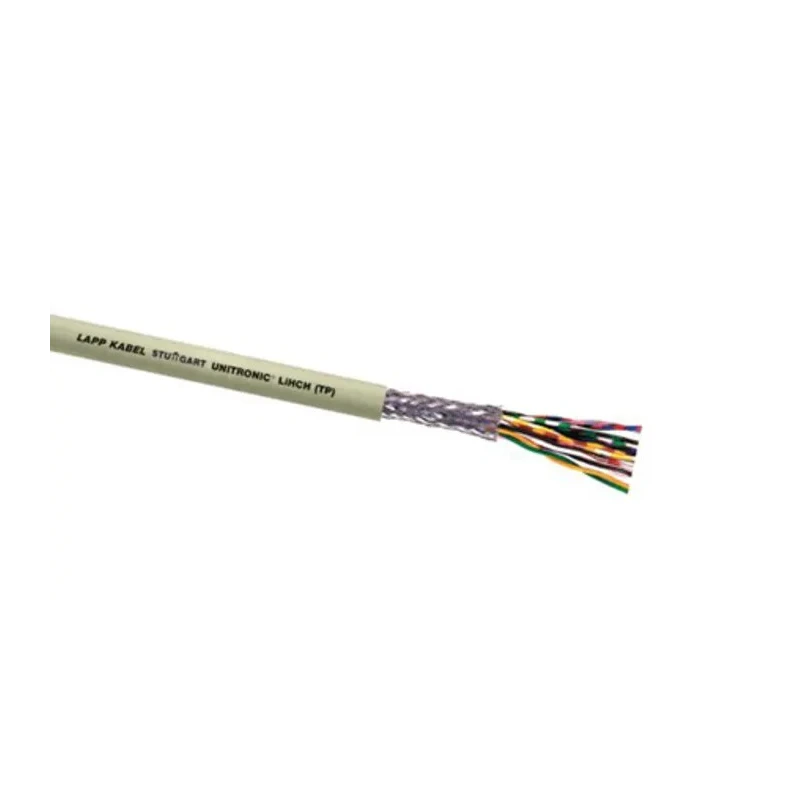

Lapp Unitronic LiHCH Series Data Cable 8 Pairs 0.75 mm² 50 m Pebble Grey Sheath Low Smoke Zero Halogen 0038708

Lapp 0038708 Unitronic LiHCH Series Data Cable is a screened twisted pair data cable designed for low-frequency data transmission. It features 8 pairs of 0.75 mm² stranded bare copper conductors insulated with halogen-free polyolefin material and protected with a low smoke zero halogen (LSZH) pebble grey sheath. This cable is engineered to minimize electrical interference with its overall braided shielding and is flame-retardant according to IEC 60332-1-2.

The cable operates reliably between -40°C and +80°C, with specific ranges for occasional flexing (-5°C to +70°C) and fixed installations (-30°C to +80°C). It is designed for environments where public safety and protection of sensitive properties are critical due to its LSZH characteristics, making it ideal for public buildings, transport systems, and offices.

Applications include data processing, measurement and control engineering, safety-related systems, computer and instrumentation systems, and office equipment cabling needs. The robust braided shielding effectively minimizes electrical interference, ensuring signal integrity.

The cable's pebble grey outer sheath is halogen-free with low smoke density, providing additional fire safety. It complies with EU-Directive 2014/35/EU (Low Voltage Directive) and EU-Directive 2011/65/EU (RoHS), ensuring environmentally compliant and safe operation.

Accessories such as tailored cable glands are available to complement the cable installation, including options for M16, M20, M25, M32, M40, and M50 Skintop EMC Cable Glands. This screened twisted pair cable minimizes electrical interference effectively.

The flame-retardant construction complies with IEC 60332-1-2 standards. Operating temperature ranges from -40°C minimum to +80°C maximum, suitable for fixed installations. The cable's jacket is low smoke zero halogen, enhancing safety in public spaces.

Designed for low-frequency data transmission in industrial and public safety applications. Suitable for use in data processing, measurement, control engineering, and instrumentation systems. Constructed with fine-wire copper strands and polyolefin-based insulation for low capacitance.

Comes with a pebble grey sheath that is halogen-free and flame-retardant. Explore further products in the Data Cable category at EnvMart for comprehensive cabling solutions.
